Black rectangular server motherboard with two CPUs installed, multiple memory slots, and expansion ports

YINGHUA

YINGHUA X99 Dual CPU Server Motherboard 2×E5-2650 V3

SKU CH-03AF-MAP43

Dual-socket server board with two E5-2650 V3 CPUs, eight DDR4 ECC slots up to 256 GB, six SATA 3.0 ports, one M.2 slot and four USB 3.0 ports

  • CPU TypeIntel Atom
  • Dual E5-2650 V3 processors included for immediate deployment
  • X99 chipset supports up to 256 GB DDR4 ECC memory across eight slots
  • Six SATA 3.0 ports plus two M.2 slots for flexible storage configuration
  • Four USB 3.0 and four USB 2.0 ports for peripheral connectivity
  • Dual PCIe 16x slots enable expansion for GPUs or add-in cards

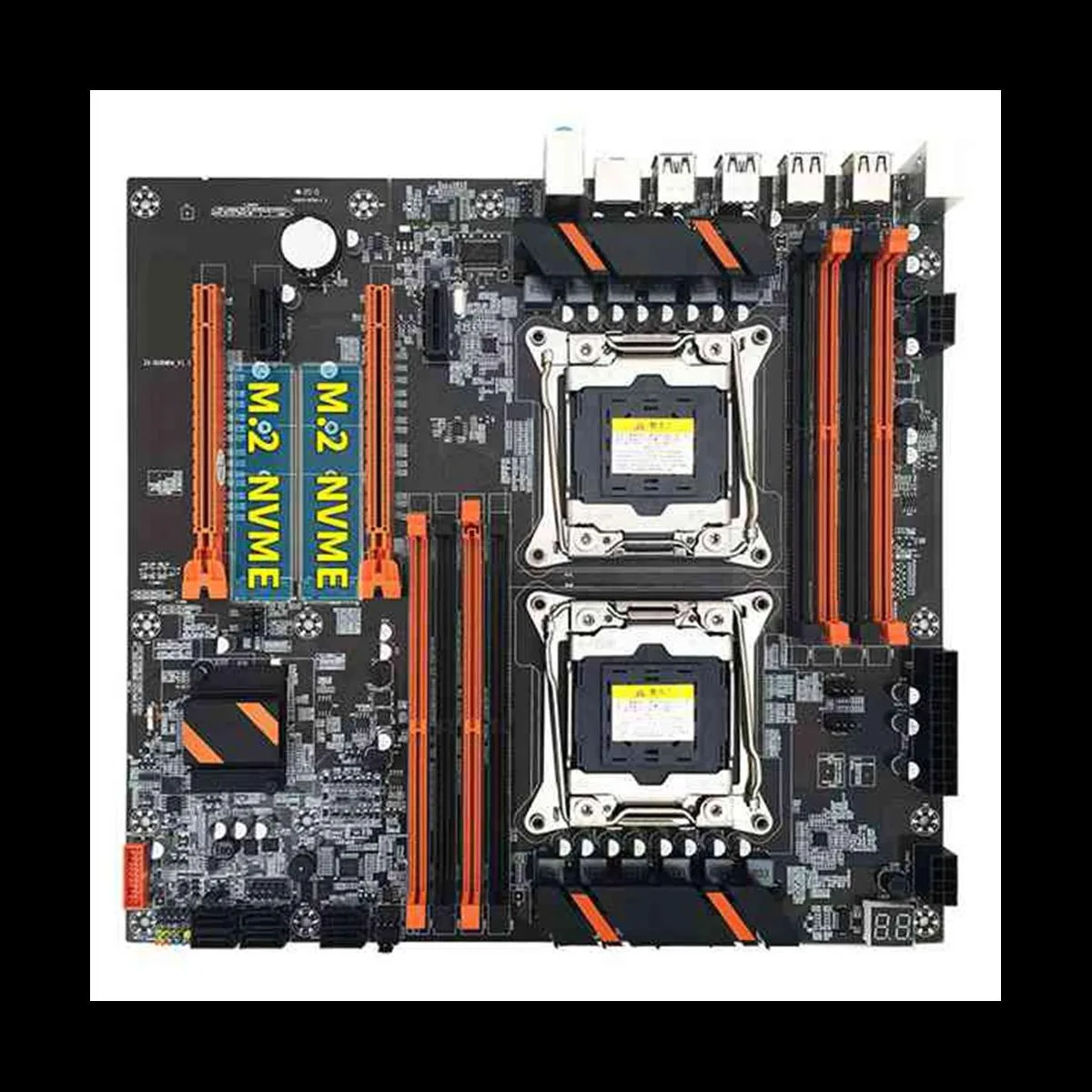

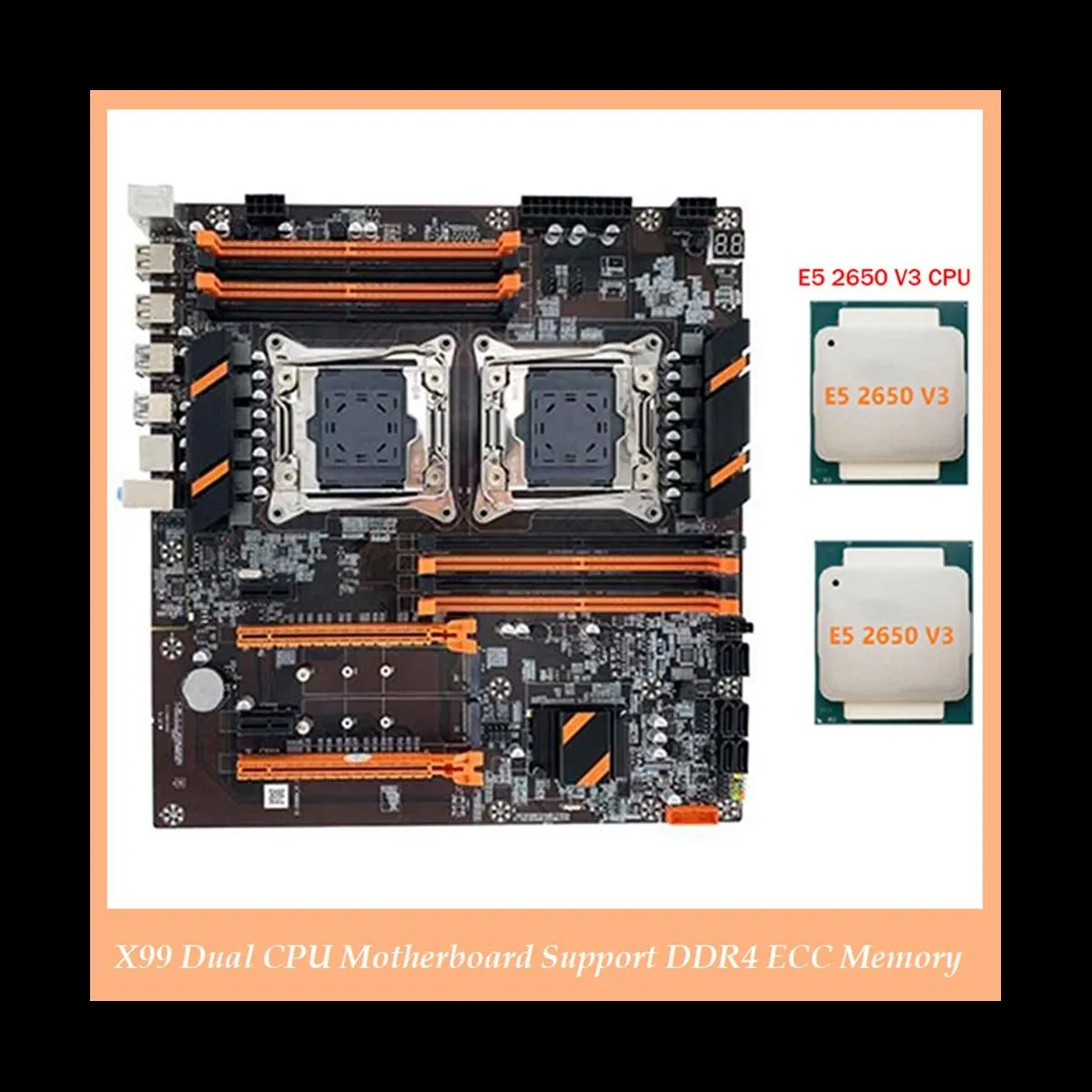

Dual X99 server board with two E5-2650 V3 CPUs

This motherboard pairs an Intel X99 chipset with two LGA 2011 sockets and ships with two E5-2650 V3 processors installed. Eight DDR4 slots accept ECC or non-ECC modules up to 32 GB each for a total of 256 GB at 2133, 2400 or 2800 MT/s. Six SATA 3.0 ports and two M.2 slots provide storage connectivity.

Suits multi-threaded workloads on a budget

The dual-socket layout targets virtualisation hosts, render nodes or database servers that benefit from 20 physical cores and 40 threads. Builders needing more than two PCIe x16 slots or integrated 10 GbE should look elsewhere. The onboard Realtek 8106E and 8111H controllers deliver only 100 Mbit Ethernet. No wireless or Bluetooth hardware is present.

Eight DDR4 slots capped at 256 GB total

Maximum memory capacity is the decisive figure: 256 GB across eight slots with a per-module limit of 32 GB. Populate all slots with 32 GB ECC DIMMs to reach the ceiling; larger modules are not supported. The board also includes four USB 3.0 ports, four USB 2.0 ports, PS/2, audio, COM pin and two additional PCIe connectors.

Highlights

  • Dual E5-2650 V3 processors included for immediate deployment
  • X99 chipset supports up to 256 GB DDR4 ECC memory across eight slots
  • Six SATA 3.0 ports plus two M.2 slots for flexible storage configuration
  • Four USB 3.0 and four USB 2.0 ports for peripheral connectivity
  • Dual PCIe 16x slots enable expansion for GPUs or add-in cards

Specifications

CPU TypeIntel Atom

Questions about this item

How much heat and power can I expect from the two E5-2650 V3 CPUs when the server runs continuously?

The board uses the Intel X99 chipset with dual LGA 2011 sockets; each CPU is a 10-core part, so sustained workloads will generate significant heat and require robust case airflow and a suitable dual-socket cooler setup.

What memory and cooling must I already have to use this motherboard with the included CPUs?

You need eight DDR4 ECC modules up to 32 GB each for the 256 GB maximum, running at 2133, 2400 or 2800 MT/s, plus two LGA 2011 coolers or a single dual-socket cooler rated for the platform.

Can I keep my existing SATA drives and PCIe add-in cards when moving to this X99 board?

Yes — the board provides six SATA 3.0 ports, one PCIe-only M.2 slot, one combo M.2 slot, two PCIe x16 slots and two additional PCIe slots, so current SATA SSDs or HDDs and standard PCIe cards will connect directly.
