Black rectangular box with six HDMI ports and AU power plug

YINGHUA

YINGHUA Video Wall Controller 4K 2x3 HDMI 6 Display AU Plug

SKU CH-FJXW-EQD7D

Splits one 4K HDMI signal into six 1080p displays for plug-and-play video walls with 3.5 mm and optical audio output

  • TypeHDMI
  • Drives six displays from one 4K source at 30 Hz
  • Outputs full HD 1920 x 1080 at 60 Hz per screen
  • Supports 2×3, 2×2, 1×2 and 2×1 layouts
  • Extracts audio via optical fibre and 3.5 mm analogue ports
  • Pure hardware operation with no software installation required

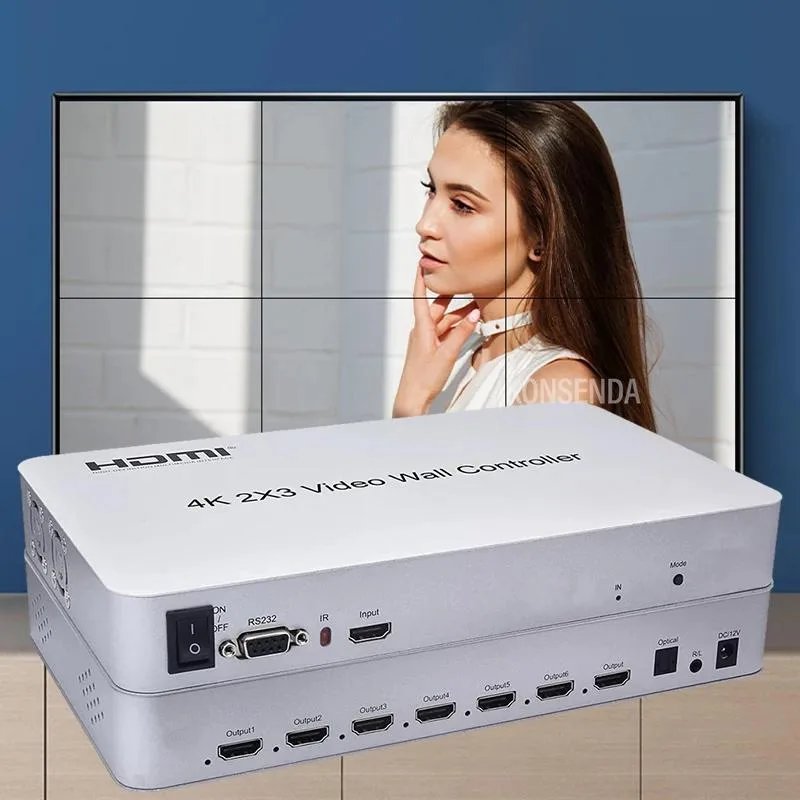

4K Video Wall Controller for Multi-Display Setups

This 2x3 video wall controller accepts one HDMI input at up to 3840x2160/30Hz and splits it across six HDMI outputs at up to 1920x1080/60Hz. It is built for installers and operators who need a single large dynamic image across six screens in venues such as advertising displays, restaurants or teaching spaces. No control software is required; the unit operates on pure hardware plug-and-play logic.

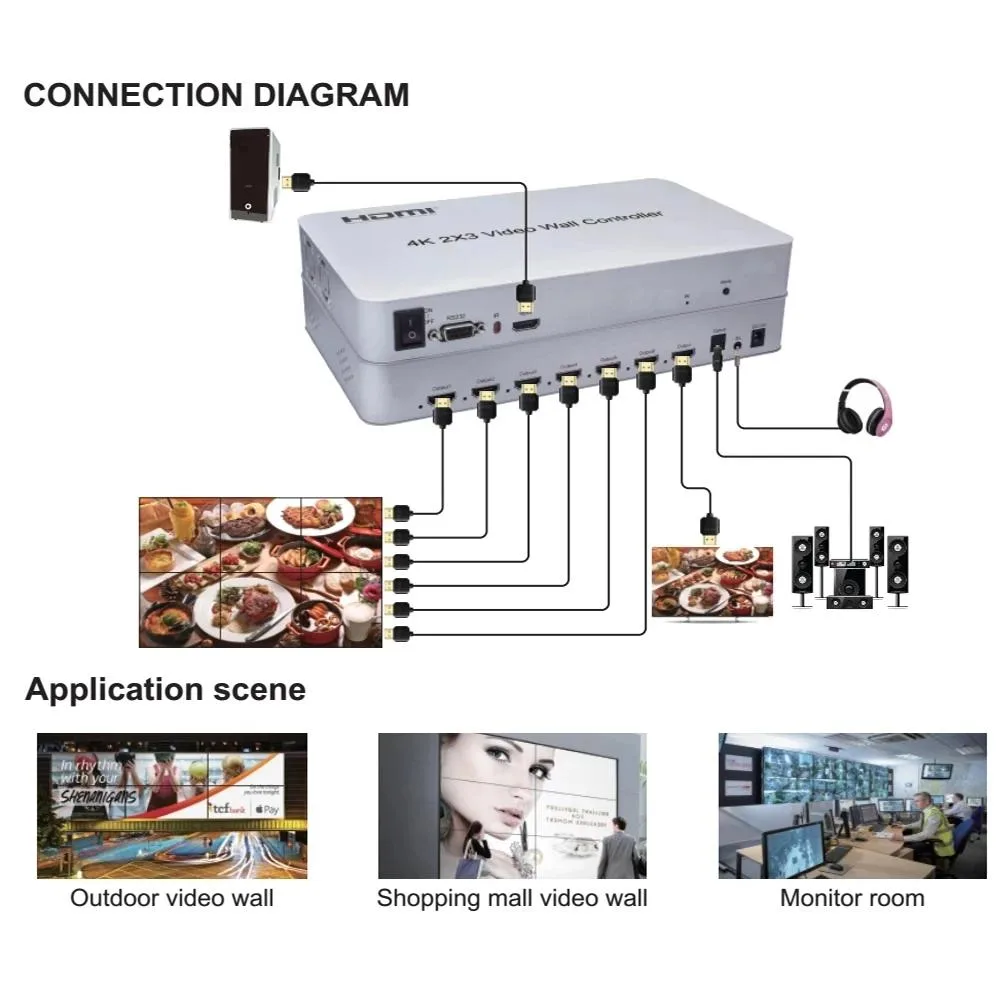

Fits Standard HDMI Chains with Cascading Option

The controller needs a source capable of 4K/30Hz over HDMI 2.0 cables up to 3 m, or 8 m at AWG26 for the same resolution. Six displays with 1080p/60Hz inputs complete the basic 2x3 wall. Cascade splicing is supported so additional controllers can extend the array beyond six screens. Audio is extracted separately via digital optical fibre and analogue 3.5 mm outputs, freeing the displays from audio duties.

Bundled AU Plug and Audio Extraction Ready

An AU mains plug is included so the unit powers directly in Australian sockets without an adapter. The optical and 3.5 mm audio ports deliver DTS-HD, DTS, Dolby-AC3 or PCM streams to an external sound system. These connections let the installer route sound independently from the video wall, simplifying cabling in commercial environments.

Highlights

  • Drives six displays from one 4K source at 30 Hz
  • Outputs full HD 1920 x 1080 at 60 Hz per screen
  • Supports 2×3, 2×2, 1×2 and 2×1 layouts
  • Extracts audio via optical fibre and 3.5 mm analogue ports
  • Pure hardware operation with no software installation required

Specifications

TypeHDMI

Questions about this item

What is the maximum input resolution the 2x3 video wall controller accepts?

The controller accepts an HDMI input up to 3840x2160 at 30 Hz.

How hot or loud does the unit get when driving six displays continuously?

The pure hardware design has no fan; it runs silently and stays cool during all-day operation.

Which displays and cables must I already own to build a 2x3 wall?

You need six HDMI displays that support 1920x1080 at 60 Hz and standard HDMI cables — up to 8 m for 4K 30 Hz input or 3 m for 4K 60 Hz input.
