Rectangular silver keypad with twelve buttons and ten grey EM keychains

YINGHUA

YINGHUA RFID Access Controller with 10 EM keychains

SKU CH-X6QN-69JP6

Standalone RFID keypad supports 1000 users with card, PIN or both and includes ten EM keychains

  • TypeChain Guard
  • MaterialMetal
  • FunctionEntrance
  • Standalone operation eliminates need for a connected computer
  • 1000 user capacity suits homes, offices and small facilities
  • 125 kHz EM keychains provide contactless entry within 10 cm
  • Keypad supports card, PIN or card-plus-PIN access modes
  • Metal housing rated for -10 to +70 °C operation

Standalone RFID access controller for homes

The YINGHUA B09 unit manages up to 1000 users without a computer connection. It accepts EM cards, PIN codes or a combination of both to release a single door. Ten EM keychains are included so the system is ready to enroll occupants immediately. The keypad also integrates a doorbell button for visitor signalling.

Consistent operation across the rated temperature

The controller is specified to work from minus 10 to plus 70 degrees Celsius with humidity between 20 and 90 percent. It reads credentials at 125 kHz within a zero to 10 centimetre range, giving repeatable response at the entry point. Power draw stays steady at the listed 12 V DC supply, so performance does not drift during long days of continuous use.

Metal housing with compact surface-mount footprint

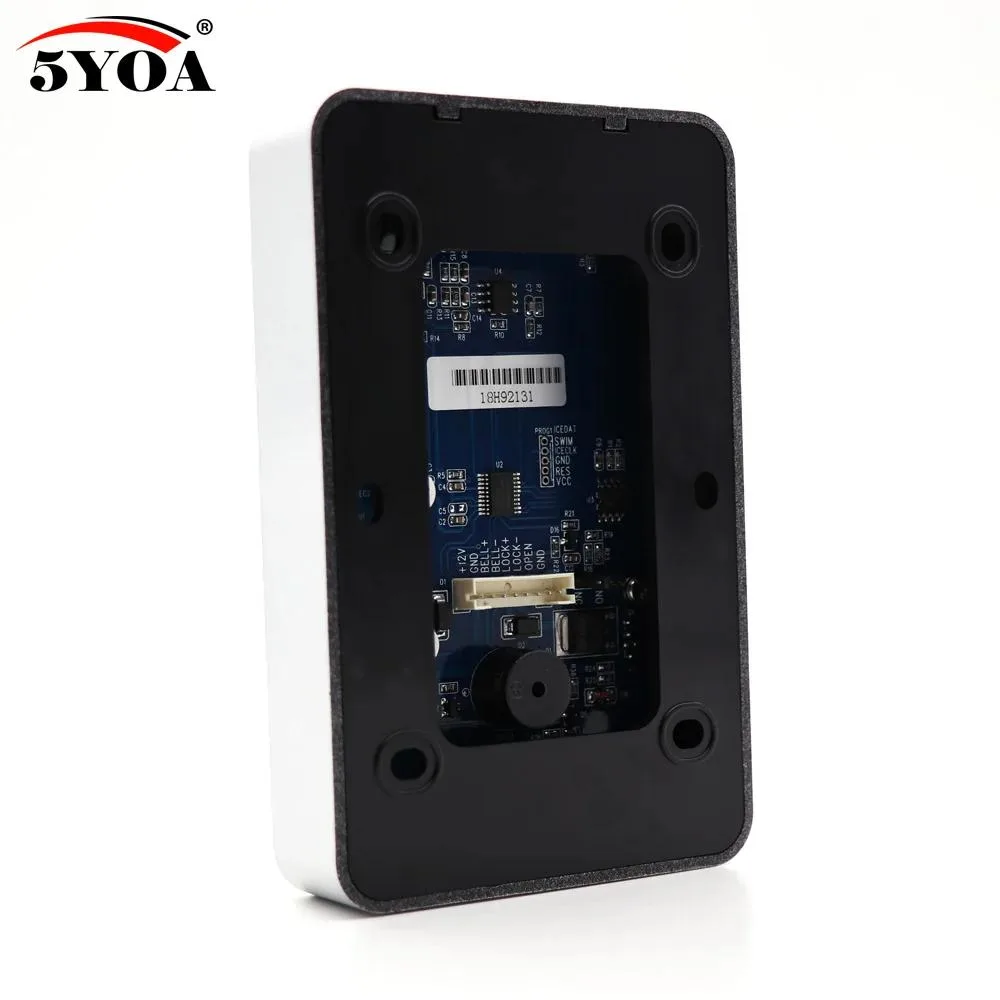

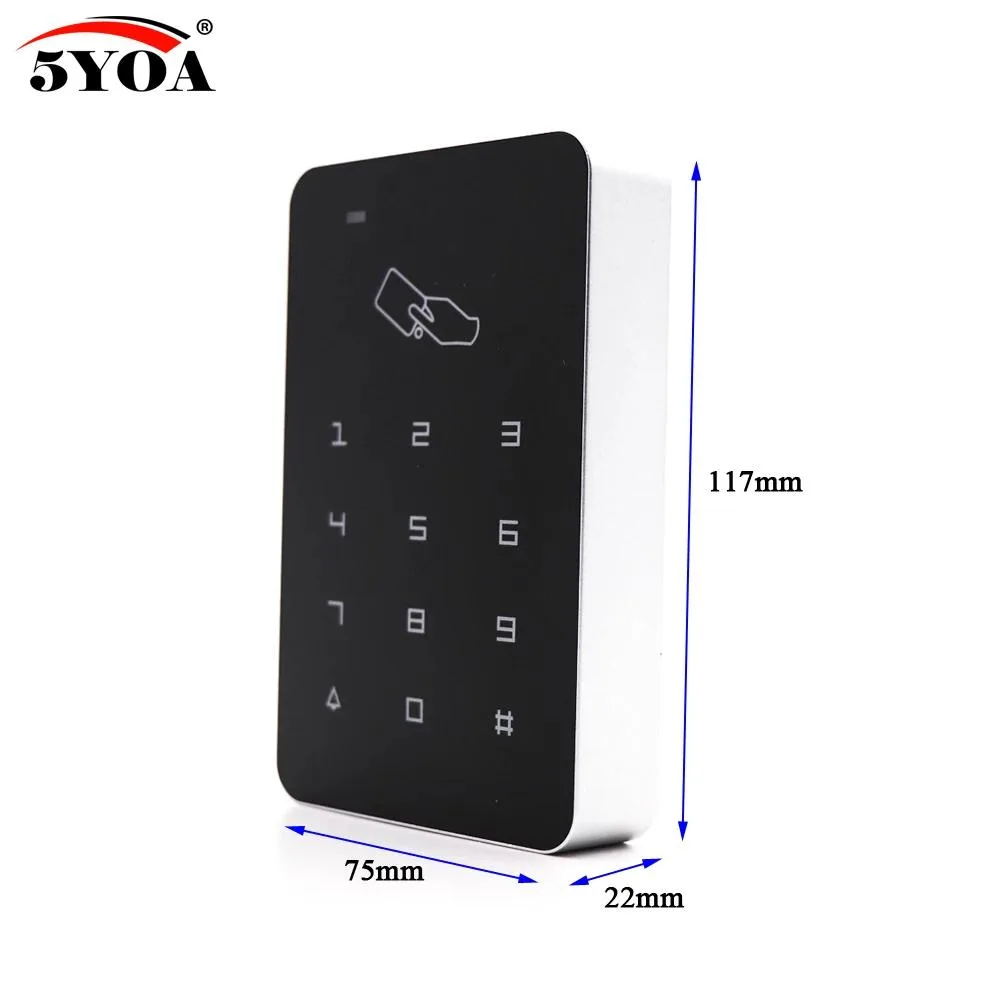

The enclosure measures 75 by 117 by 22 millimetres and is built from metal for durability in daily traffic. Its shallow depth suits narrow door frames or mullion mounting without protruding far into the corridor. Wiring terminates at the rear for a clean installation that resists tampering and weather exposure at the entrance.

Highlights

  • Standalone operation eliminates need for a connected computer
  • 1000 user capacity suits homes, offices and small facilities
  • 125 kHz EM keychains provide contactless entry within 10 cm
  • Keypad supports card, PIN or card-plus-PIN access modes
  • Metal housing rated for -10 to +70 °C operation

Specifications

TypeChain Guard
MaterialMetal
FunctionEntrance

Questions about this item

How much heat does the keypad generate when it runs continuously on DC12V?

The unit draws a low working current at 12 V DC, so it produces minimal heat during all-day operation.

What power supply and lock hardware must I already have to install this controller?

You need a 12 V DC power source and a compatible electric strike or magnetic lock for the single-door output.

Will the 125 KHz reader work with the EM keychains I already use on an older system?

Yes, the 125 KHz frequency matches standard EM credentials, so existing EM keychains or cards will be recognised.
