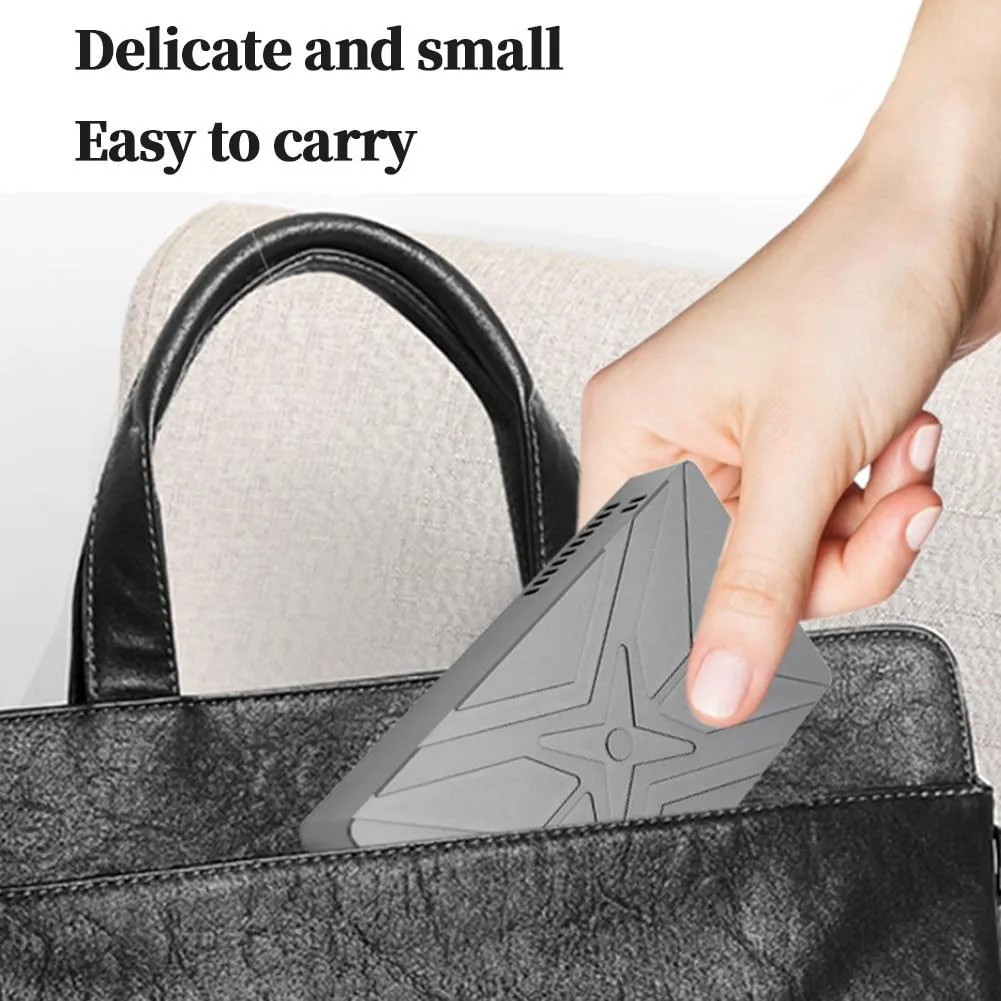

Compact dual-bay NVME enclosure with USB 3.2 20Gbps Type-C connection

YINGHUA

YINGHUA M.2 NVME Dual Bay RAID Enclosure USB 3.2 20Gbps

SKU CH-HRTR-G44J1

Dual-bay M.2 NVME enclosure with hardware RAID modes and USB 3.2 20Gbps Type-C connectivity

  • Dual-bay RAID flexibility with NVME M.2 SSD support
  • USB 3.2 20Gbps Type-C interface for fast data transfers
  • Switch between RAID 1 and PM modes easily
  • Independent disk operation allows one drive offline temporarily
  • Identical enclosure replacement preserves existing RAID data intact

Dual-Bay M.2 NVME RAID Enclosure

This dual-bay enclosure accepts two M.2 NVME drives and connects via USB 3.2 at 20Gbps. A hardware switch toggles between RAID1 mirroring and PM (JBOD) modes without software. It is built for users who want portable, redundant storage or two independent volumes in one compact case.

For portable redundancy, not capacity expansion

Suits creators and technicians who need mirrored backups or separate volumes while travelling between laptops and tablets. RAID1 protects data if one drive fails. Buyers who want a single large volume, hardware RAID5 or RAID0 striping, or more than two drives should look at something else.

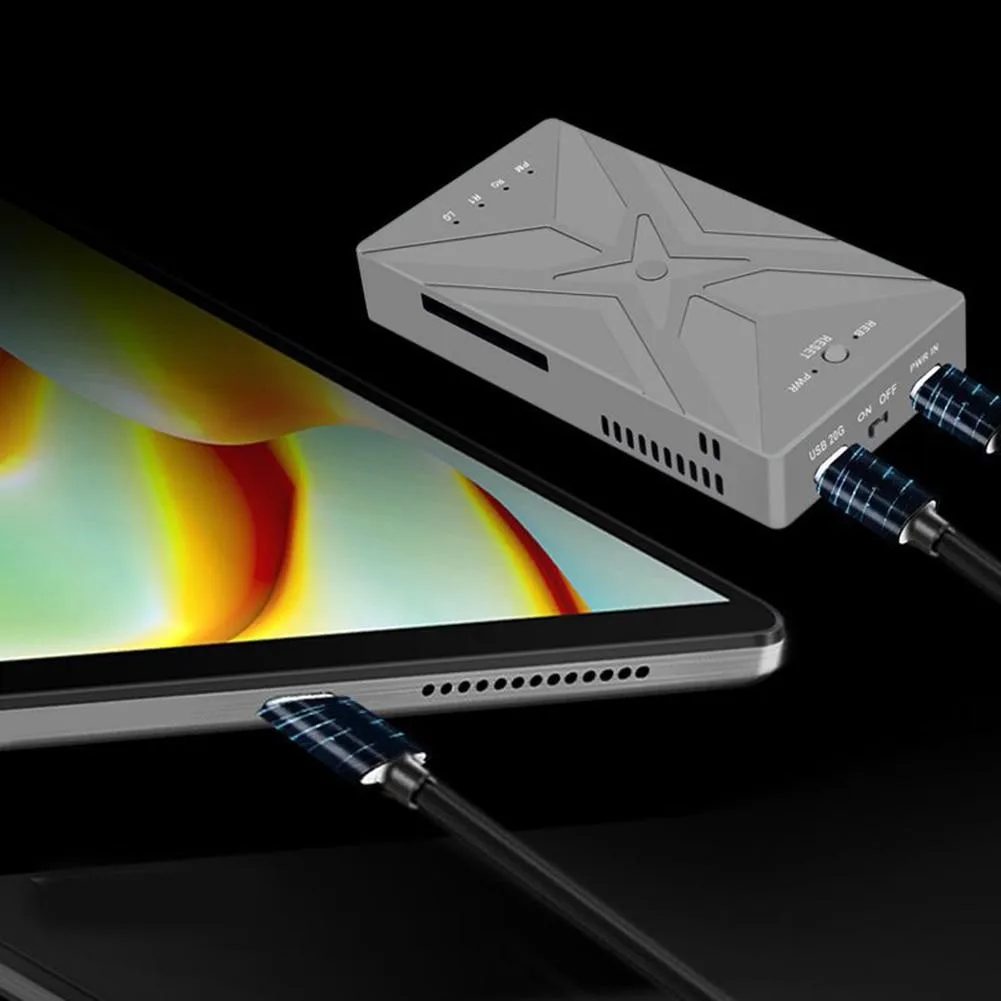

USB 3.2 20Gbps host interface

The Type-C connection delivers up to 20Gbps bandwidth to the host. Actual throughput depends on the drives installed and the selected RAID mode. Verify that your device provides a USB 3.2 20Gbps port to reach the enclosure's rated speed.

Highlights

  • Dual-bay RAID flexibility with NVME M.2 SSD support
  • USB 3.2 20Gbps Type-C interface for fast data transfers
  • Switch between RAID 1 and PM modes easily
  • Independent disk operation allows one drive offline temporarily
  • Identical enclosure replacement preserves existing RAID data intact

Specifications

No published specifications for this item yet.

Questions about this item

Which M.2 NVME drives must I already have to populate both bays?

You need two M.2 NVME SSDs in the same physical length that the enclosure accepts; the unit holds two drives side by side.

Will my existing USB 3.2 Gen 1 laptop port limit the 20 Gbps link?

Yes, the enclosure will fall back to the host port’s maximum speed, so a USB 3.2 Gen 1 port caps throughput at its lower rate.

How can I confirm the RAID1 mirror is healthy after first setup?

Open your OS disk-management tool and verify both drives show as a single mirrored volume with no offline or degraded status.
