Small black converter box with HDMI, VGA, RCA and optical ports EU plug

YINGHUA

YINGHUA HDMI to YPbPr Scaler 1080P Component VGA Converter

SKU CH-HEFT-Y0QH5

Converts HDMI 1.4 input up to 1080p into component, VGA or RGB video with stereo RCA and Toslink optical audio, and includes an EU plug power supply

  • TypeHDMI
  • Converts HDMI to component, VGA or RGB video
  • 1080p up-scaling and down-scaling with 165 MHz bandwidth
  • Toslink SPDIF plus stereo RCA audio outputs
  • HDMI 1.4 input compatible with PS4, Xbox 360, Blu-ray
  • On-screen display for easy resolution selection

Signal Conversion for Legacy Displays

This YINGHUA scaler converts an HDMI 1.4 source into analogue component YPbPr, RGB over 5RCA or VGA video while extracting stereo RCA and Toslink optical audio. It supports both up-scaling and down-scaling with on-screen display control for input and output resolutions. The unit accepts 165 MHz or 1.65 Gbps per channel bandwidth on the HDMI input. A power adapter with EU plug is included.

Integration into an AV Chain

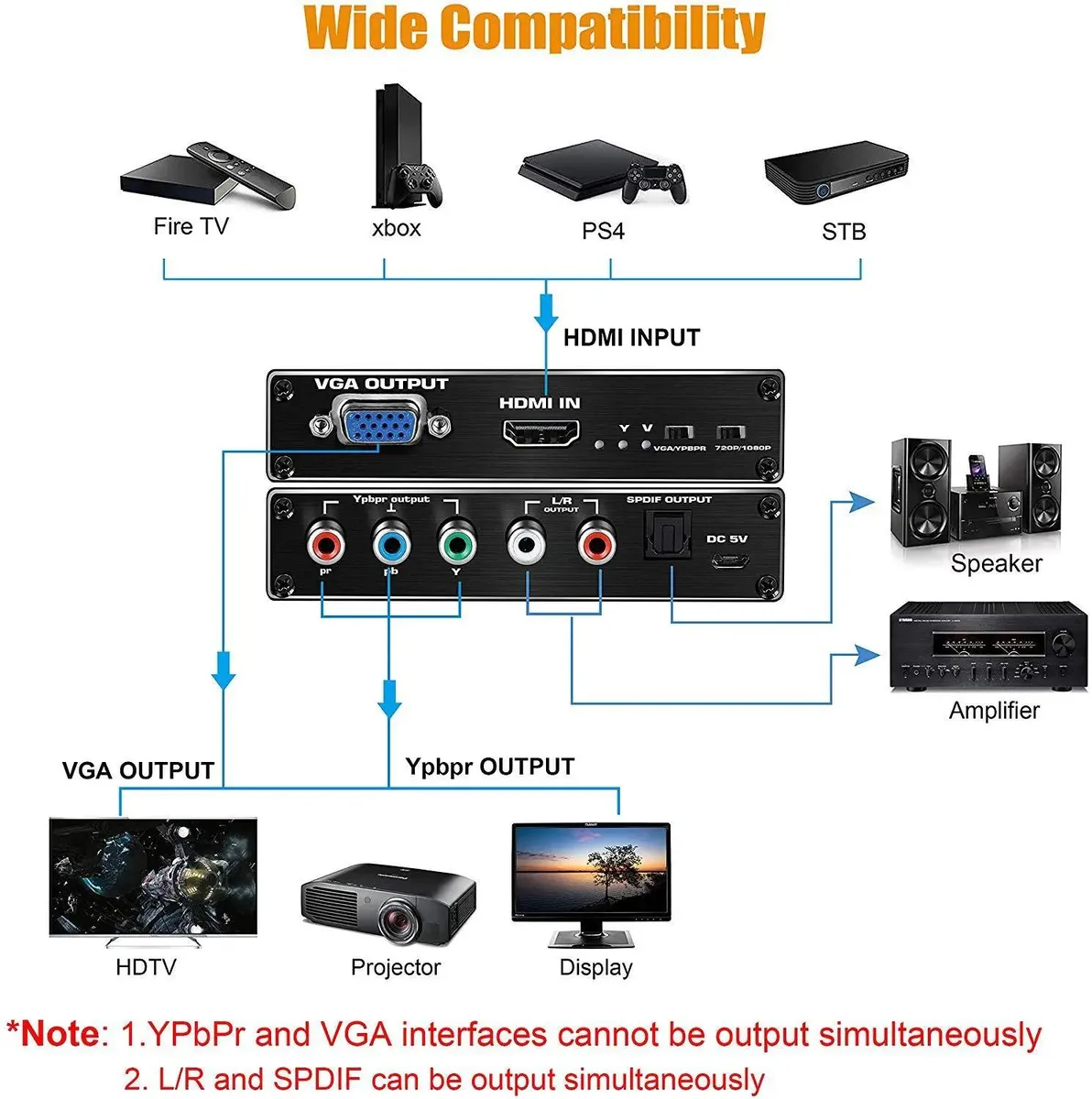

Connect the converter between a modern HDMI device such as a PS4, Blu-ray player or Fire TV and an older monitor, projector or capture card that lacks digital inputs. The independent audio outputs allow sound to reach an amplifier or active speakers without powering the display. No software drivers are required; configuration is handled through the built-in OSD menu.

Upgrade Path from Basic Adapters

This replaces passive HDMI-to-VGA dongles that cannot scale resolutions or separate audio streams. The jump is worth it when the source outputs 1080p or 720p signals that the legacy screen cannot natively accept, or when Toslink optical audio is needed for a surround receiver. It does not serve users who require HDMI output, HDCP management or multi-input switching.

Highlights

  • Converts HDMI to component, VGA or RGB video
  • 1080p up-scaling and down-scaling with 165 MHz bandwidth
  • Toslink SPDIF plus stereo RCA audio outputs
  • HDMI 1.4 input compatible with PS4, Xbox 360, Blu-ray
  • On-screen display for easy resolution selection

Specifications

TypeHDMI

Questions about this item

What is the maximum HDMI input bandwidth this scaler accepts?

The unit handles 165 MHz per channel, or 6.75 Gbps total bandwidth on the HDMI 1.4 input.

Does the converter need its own power supply to pass audio through the Toslink and RCA outputs?

No, the independent audio output channel works even when the HDTV or monitor is powered off, but the converter itself must be powered via the included EU-plug adapter.

Which source resolutions can I feed into the HDMI port for conversion to component or VGA?

Supported inputs include 1080p and 720p signals from devices such as PS4, Xbox 360, Blu-ray players, Fire TV, MacBook or DVD players.
