Small black box with HDMI and USB ports, RJ45 jack, IR window, US power adapter

YINGHUA

YINGHUA HDMI KVM Extender over IP Cat5e/6 200M (US Plug) (Only 1 RX)

SKU CH-1AP0-92YGM

Extends HDMI video and USB keyboard/mouse control up to 200 metres over Cat5e/6 cable using IP networking

  • TypeHDMI
  • Extends HDMI up to 200 m over a single Cat5e/6 cable
  • Supports 1080p, 720p and 480p resolutions via HDMI 1.3
  • USB mouse and keyboard control carried over the same IP link
  • IR remote passthrough at 38 kHz for distant source operation
  • Hardware plug-and-play design needs no extra software or drivers

Extender for HDMI sources

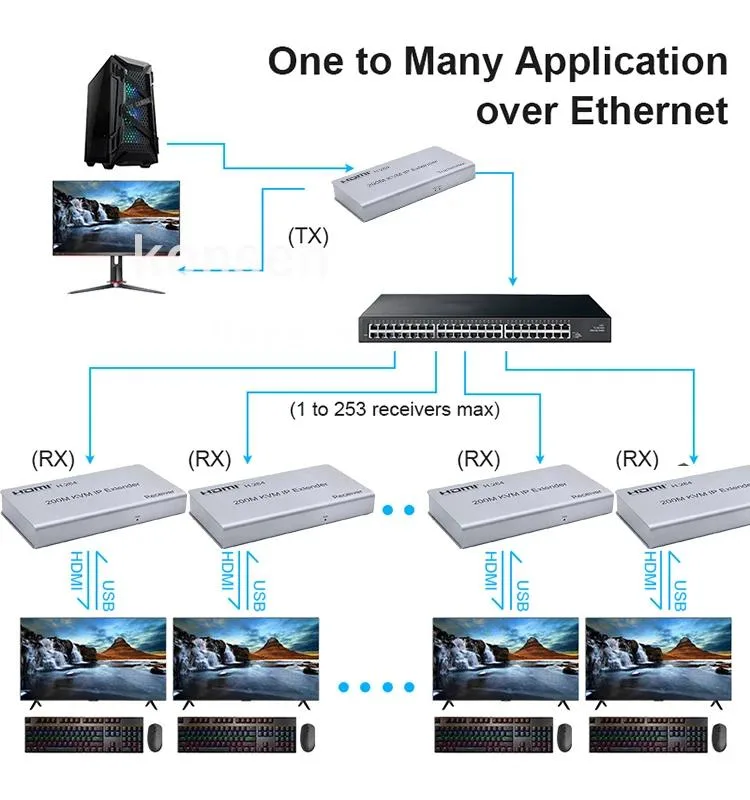

The YINGHUA HDMI KVM extender transmits video, audio and USB control signals up to 200 metres over a single Cat5e or Cat6 cable. It connects a PC, laptop, DVR or similar HDMI source to a remote display and keyboard-mouse set. The receiver unit is sold separately, so buyers needing multiple endpoints must order additional receivers.

HDMI 1.3 resolution ceiling

The extender supports HDMI 1.3 and handles 480p, 720p and 1080p resolutions. Higher resolutions such as 1440p or 4K are not supported, so the unit is unsuitable for modern high-DPI monitors or HDR content. Audio is carried at 32 kHz, 44.1 kHz or 48 kHz sample rates alongside the video stream.

Low power and fanless operation

Each sender and receiver draws 3 W from a 5 V/1 A DC adapter, so total system draw is modest and no active cooling is required. Operating temperature range is 0 to 45 °C at 10 to 80 % relative humidity. The fanless design keeps the installation silent in office or studio environments.

Highlights

  • Extends HDMI up to 200 m over a single Cat5e/6 cable
  • Supports 1080p, 720p and 480p resolutions via HDMI 1.3
  • USB mouse and keyboard control carried over the same IP link
  • IR remote passthrough at 38 kHz for distant source operation
  • Hardware plug-and-play design needs no extra software or drivers

Specifications

TypeHDMI

Questions about this item

What resolution will I actually see at the full 200 metre distance?

The extender supports 480p, 720p and 1080p resolutions over the full 200 metre Cat5e/6 link.

Which network standard limits the bandwidth on this extender?

It uses the 802.3 Ethernet standard, so the link runs at standard Ethernet speeds over Cat5e/6 cable.

How much rack or desk depth does the receiver unit need?

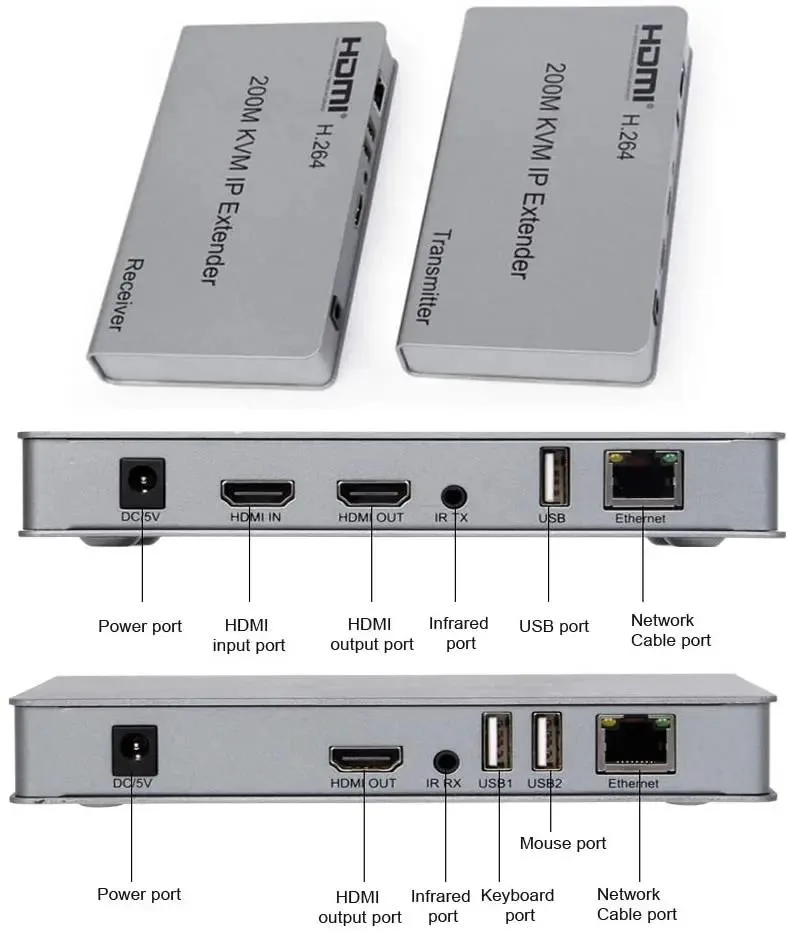

The receiver measures 163 mm long, 87 mm wide and 24 mm high.
