Small black network extender box with HDMI and USB ports, EU power plug included

YINGHUA

YINGHUA HDMI KVM Extender over IP Cat5e/6 200M (EU Plug, Only 1 RX)

SKU CH-5Y93-8Z8C9

Extends HDMI, USB keyboard and mouse signals up to 200 metres over Cat5e/6 cable with IR remote control

  • TypeHDMI
  • Extends HDMI and USB up to 200 metres over Cat5e/6 cable
  • Supports 1080p resolution with HDMI 1.3 compliance
  • Plug-and-play hardware design needs no extra software
  • IR remote control operates at 38 kHz NEC protocol
  • DC 5 V 1 A power adapter included for each unit

Ready to connect

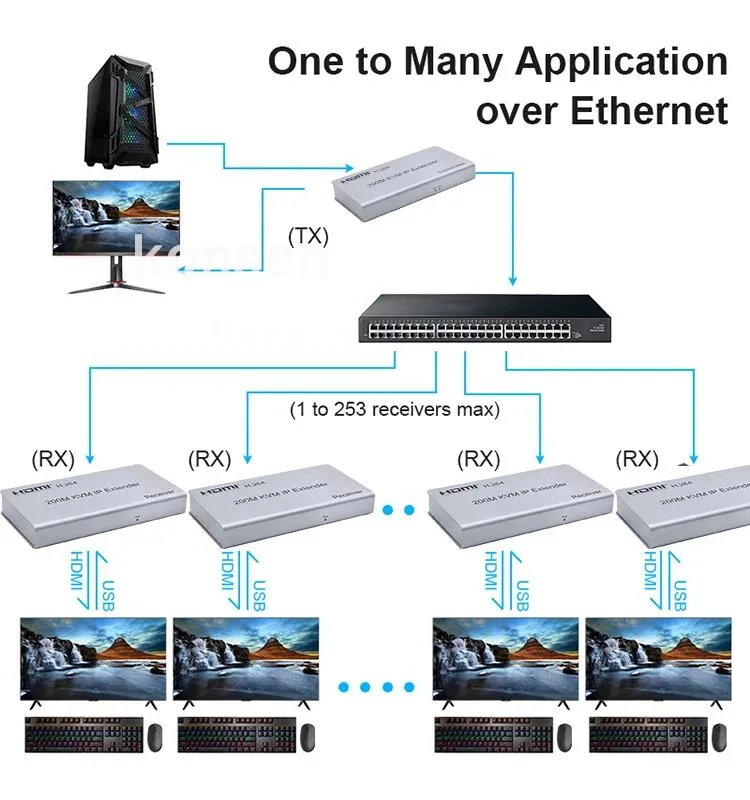

This HDMI KVM extender transmits video, audio and USB control signals up to 200 metres over a single Cat5e or Cat6 cable. It supports point-to-point, one-to-many and cascade topologies through a standard network switch. The pure-hardware design works without any driver installation. EU power adapters are included.

Suits remote monitoring and multi-display setups

Operators who need a keyboard and mouse at a distant screen will find the USB extension and IR channel useful. Builders requiring 4K resolution, HDCP 2.2 or HDMI 2.0 bandwidth should look at a different product. Installations without a wired Ethernet path between endpoints cannot use this extender.

Maximum reach 200 metres

The link distance is limited to 200 metres over Cat5e/6 cabling following the 802.3 Ethernet standard. Video output is capped at 1080p with supported resolutions of 480p, 720p and 1080p. Audio sampling rates are 32 kHz, 44.1 kHz and 48 kHz. IR control operates at 38 kHz NEC protocol.

Highlights

  • Extends HDMI and USB up to 200 metres over Cat5e/6 cable
  • Supports 1080p resolution with HDMI 1.3 compliance
  • Plug-and-play hardware design needs no extra software
  • IR remote control operates at 38 kHz NEC protocol
  • DC 5 V 1 A power adapter included for each unit

Specifications

TypeHDMI

Questions about this item

How do I install the extender and what step is often missed?

Connect the HDMI source to the sender, link both units with a single Cat5e/6 cable up to 200 metres, plug the USB keyboard and mouse into the receiver, then apply the 5 V / 1 A DC adapters to both boxes; the step often missed is powering both the sender and receiver before expecting video.

What maintenance or replacement will this unit need later?

The pure-hardware design has no firmware updates or software licences; only the two 5 V / 1 A power adapters or the Cat5e/6 patch cable may need replacement if they fail or are damaged.

What limit appears first under sustained use?

The HDMI 1.3 chipset caps resolution at 1080p and audio at 48 kHz, so extended 4K or higher refresh rates cannot be transmitted regardless of cable quality or operating temperature.
