YINGHUA HDMI KVM extender receiver unit, matte black rectangular box with front ports

YINGHUA

YINGHUA HDMI KVM Extender over IP Cat5e/6 200M (AU Plug, 1 RX)

SKU CH-3YRN-CXGDW

Extends HDMI and USB control up to 200 metres over Cat5e/6 cable with IR remote support

  • TypeHDMI
  • Extends HDMI up to 200 metres over Cat5e/6 cable
  • Supports 1080p, 720p and 480p resolutions via HDMI 1.3
  • Adds USB mouse and keyboard control at the remote end
  • IR remote pass-through at 38 KHz for source device control
  • Works point-to-point, one-to-many or cascaded over standard 802.3 Ethernet

HDMI KVM Extender over IP Cat5e/6 200M

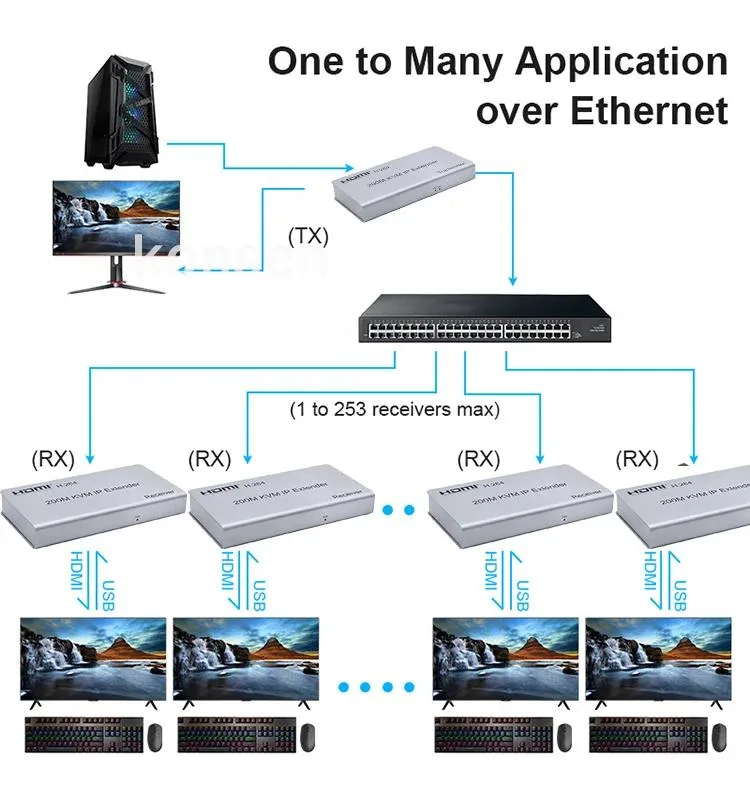

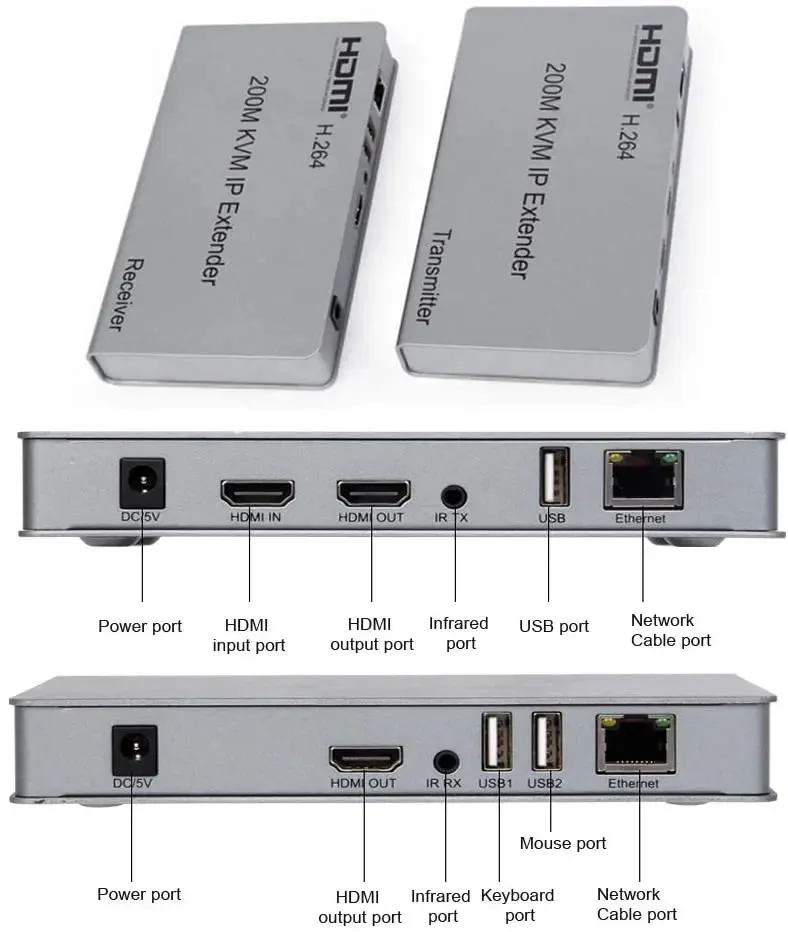

This HDMI KVM extender transmits video, audio and USB control signals up to 200 metres over a single Cat5e or Cat6 cable using standard TCP/IP networking. It supports point-to-point, one-to-many and cascaded topologies through a network switch. The pure-hardware design requires no driver installation and works with PC, laptop or DVR sources.

Sustained operation at 1080p resolution

The extender maintains 480p, 720p and 1080p output continuously over the 200-metre link without compression artefacts. Audio is delivered at 32 kHz, 44.1 kHz and 48 kHz sample rates throughout extended sessions. USB mouse and keyboard signals remain responsive under constant use, and the 802.3 Ethernet foundation keeps the stream stable across cascaded switches.

Thermal and power profile in normal use

Each sender and receiver unit draws 3 W from a 5 V/1 A DC adapter, producing minimal heat inside the 163 x 87 x 24 mm enclosure. Operating temperature range is 0 to 45 °C with 10 to 80 % relative humidity, and no active cooling is required. The low power draw and fanless construction keep acoustic output negligible in quiet environments.

Highlights

  • Extends HDMI up to 200 metres over Cat5e/6 cable
  • Supports 1080p, 720p and 480p resolutions via HDMI 1.3
  • Adds USB mouse and keyboard control at the remote end
  • IR remote pass-through at 38 KHz for source device control
  • Works point-to-point, one-to-many or cascaded over standard 802.3 Ethernet

Specifications

TypeHDMI

Questions about this item

Does the receiver unit run hot or draw much power when left on 24/7?

The receiver draws 3 W from its 5 V/1 A adapter and is rated for 0 °C to 45 °C operating temperature.

What cables and network gear do I need to have on hand before this extender will work?

You need a Cat5e or Cat6 patch cable up to 200 m and a standard 802.3 Ethernet switch for one-to-many or cascade setups.

Will my older 720p monitor and USB keyboard work with this extender without extra adapters?

Yes — 720p is a supported resolution and USB mouse and keyboard are extended natively over the link.
