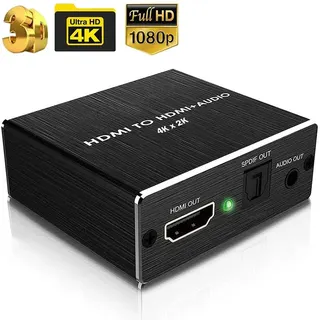

Small black box with HDMI ports and 3.5mm audio jack

YINGHUA

YINGHUA HDMI Audio Extractor KVM Switch 3.5mm 5.1CH

SKU CH-QSS6-RDD4P

Extracts HDMI audio to 3.5 mm stereo and optical outputs with selectable 2CH or 5.1CH EDID modes

  • TypeHDMI
  • Extracts HDMI audio to 5.1CH surround sound via optical and 3.5mm outputs
  • Three EDID modes select pass-through stereo or 5.1CH Dolby Digital and DTS

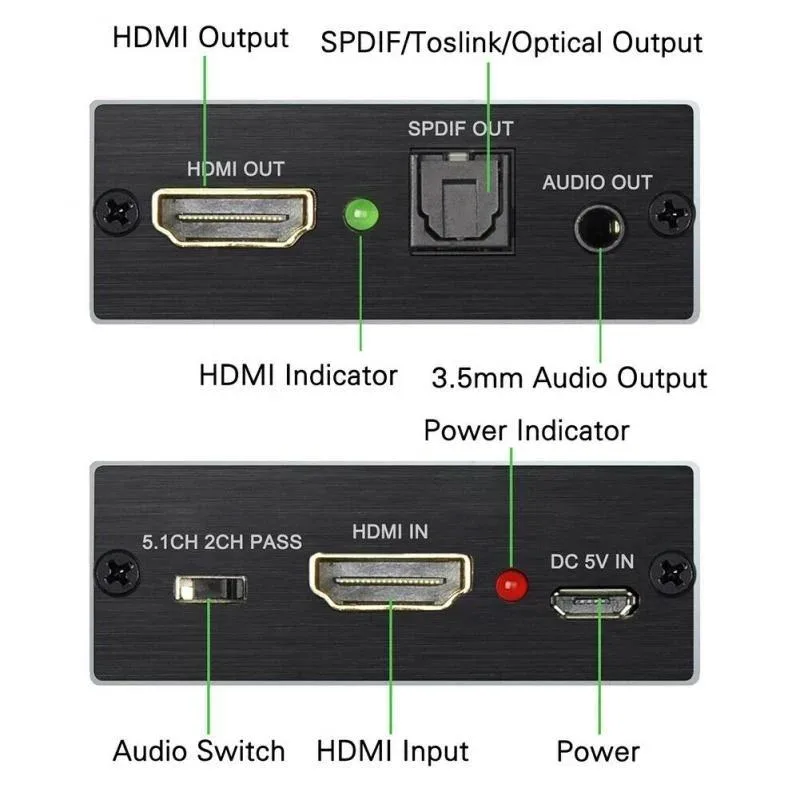

  • Simultaneous SPDIF and analogue L/R output for flexible amplifier connection
  • High-performance extractor delivers high-quality audio beyond built-in TV speakers
  • Converts embedded HDMI audio without affecting the video signal path

HDMI Audio Extractor and Switch

This YINGHUA device extracts audio from an HDMI source and routes it to both 3.5 mm stereo and optical outputs while passing video through HDMI. It suits users who need to feed a sound system or headphones from a console, streaming box or PC that only offers HDMI output.

Three EDID modes for sustained use

The switch offers Pass, 2CH and 5.1CH EDID settings that remain stable during long sessions. Pass sends audio and video through HDMI only. 2CH mode delivers stereo PCM to both analogue and optical ports. 5.1CH mode outputs Dolby Digital or DTS via optical or RCA without supporting Dolby Digital Plus.

Check your source and amplifier

Verify that your HDMI source can output the desired audio format and that your amplifier or soundbar accepts optical or 3.5 mm input for 5.1CH signals. The extractor does not decode Dolby Digital Plus, so sources locked to that format will not produce surround sound through this unit.

Highlights

  • Extracts HDMI audio to 5.1CH surround sound via optical and 3.5mm outputs
  • Three EDID modes select pass-through stereo or 5.1CH Dolby Digital and DTS
  • Simultaneous SPDIF and analogue L/R output for flexible amplifier connection
  • High-performance extractor delivers high-quality audio beyond built-in TV speakers
  • Converts embedded HDMI audio without affecting the video signal path

Specifications

TypeHDMI

Questions about this item

Does the extractor add noticeable heat or fan noise when running continuously?

The unit is a passive HDMI audio extractor with no fan or active cooling, so it produces no audible noise and only minimal warmth during all-day operation.

What cables and audio gear must I already have to use the 3.5 mm and optical outputs?

You need an HDMI source and display, a 3.5 mm stereo cable for analogue L/R, and an optical Toslink cable for SPDIF, plus an amplifier or powered speakers that accept those inputs.

Will the 5.1 CH EDID mode work with an older AV receiver that only handles Dolby Digital and DTS?

Yes — the 5.1 CH setting extracts Dolby Digital 5.1 and DTS 5.1 over both SPDIF and RCA L/R, matching legacy receivers that lack Dolby Digital Plus support.
