Small black box with four HDMI inputs and one output, US power plug included

YINGHUA

YINGHUA HDMI 4x1 Quad Multi-viewer 1080P 60Hz 6 Modes US Plug

SKU CH-67VQ-R36S3

Four HDMI sources shown on one 1080p 60 Hz display with six split-screen modes and IR control

  • TypeHDMI
  • Display four sources simultaneously on one screen with 4-channel HDMI segmentation
  • Switch between inputs instantly with seamless 1080p 60 Hz transition
  • Control the unit from a distance using the included IR remote
  • Connect sources up to 15 metres away with standard AWG26 HDMI cables
  • Supports multiple input resolutions including 1080p, 720p and 1024×768

Four-input HDMI multi-viewer

This HDMI 4x1 quad multi-viewer accepts four HDMI sources and combines them onto a single 1080P 60 Hz display. It is suited for operators who need simultaneous monitoring of multiple video feeds in control rooms, meeting halls or streaming setups. The unit includes a US-style power plug and supports both front-panel button and IR remote control for mode changes. Input cables up to 15 metres using AWG26 standard HDMI cable are supported.

Build integration and cabling

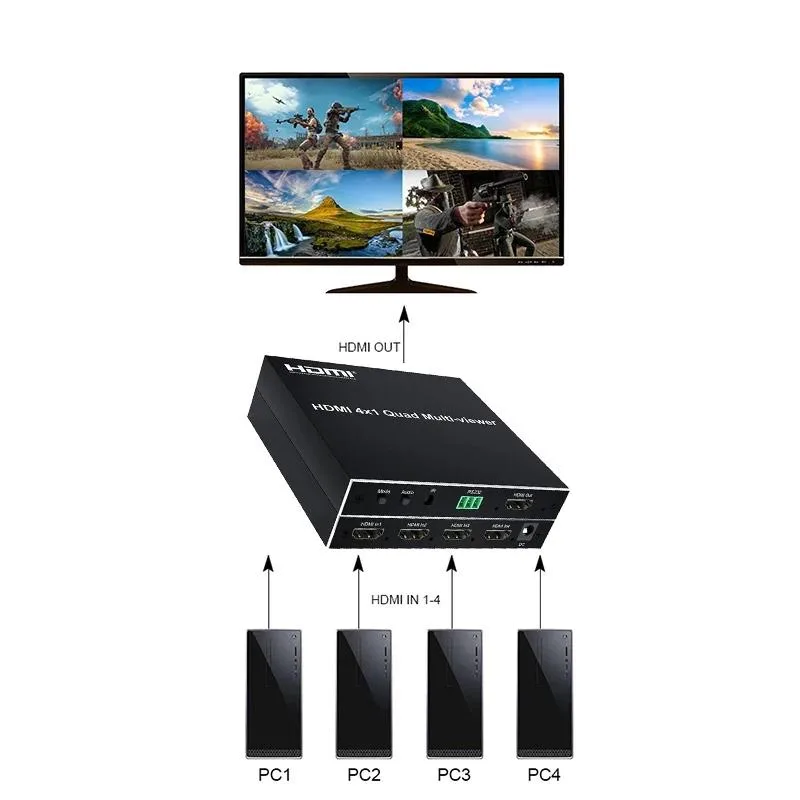

The device requires a single HDMI output connection to the display and up to four HDMI inputs from source equipment such as cameras, PCs or media players. It frees the user from needing multiple monitors or a separate video wall processor by consolidating four signals into one screen. No software drivers are required; the switcher operates purely through hardware button presses or the supplied IR remote. Audio is passed through in PCM2 format from the active source.

Capacity limits and headroom

The multi-viewer handles input resolutions of 1080P, 720P, 1080i, 1024X768 and 1360X768 at 60 Hz, with a maximum output of 1080P 60 Hz. Six display modes provide flexible layout options including full-screen, picture-in-picture and quad-view arrangements. It cannot process resolutions above 1080P or refresh rates beyond 60 Hz, so 4K sources or high-frame-rate gaming signals are not supported. Output cable reach is specified at 108 metres.

Highlights

  • Display four sources simultaneously on one screen with 4-channel HDMI segmentation
  • Switch between inputs instantly with seamless 1080p 60 Hz transition
  • Control the unit from a distance using the included IR remote
  • Connect sources up to 15 metres away with standard AWG26 HDMI cables
  • Supports multiple input resolutions including 1080p, 720p and 1024×768

Specifications

TypeHDMI

Questions about this item

How many HDMI sources can I view simultaneously before the output drops to a single 1080P 60Hz stream?

The unit accepts four HDMI inputs and combines them into one 1080P 60Hz output, so the limit is four sources displayed together.

Does the box get hot or noisy when it runs 24/7 with all four 1080P 60Hz inputs active?

The device has no fan and draws little power, so it stays cool and silent during continuous operation.

Which cables and power adapter do I need to have on hand before this switcher will work?

You need up to four HDMI cables (standard AWG26 works up to 15 m at 1080P 60Hz) and the included US-plug power supply.
