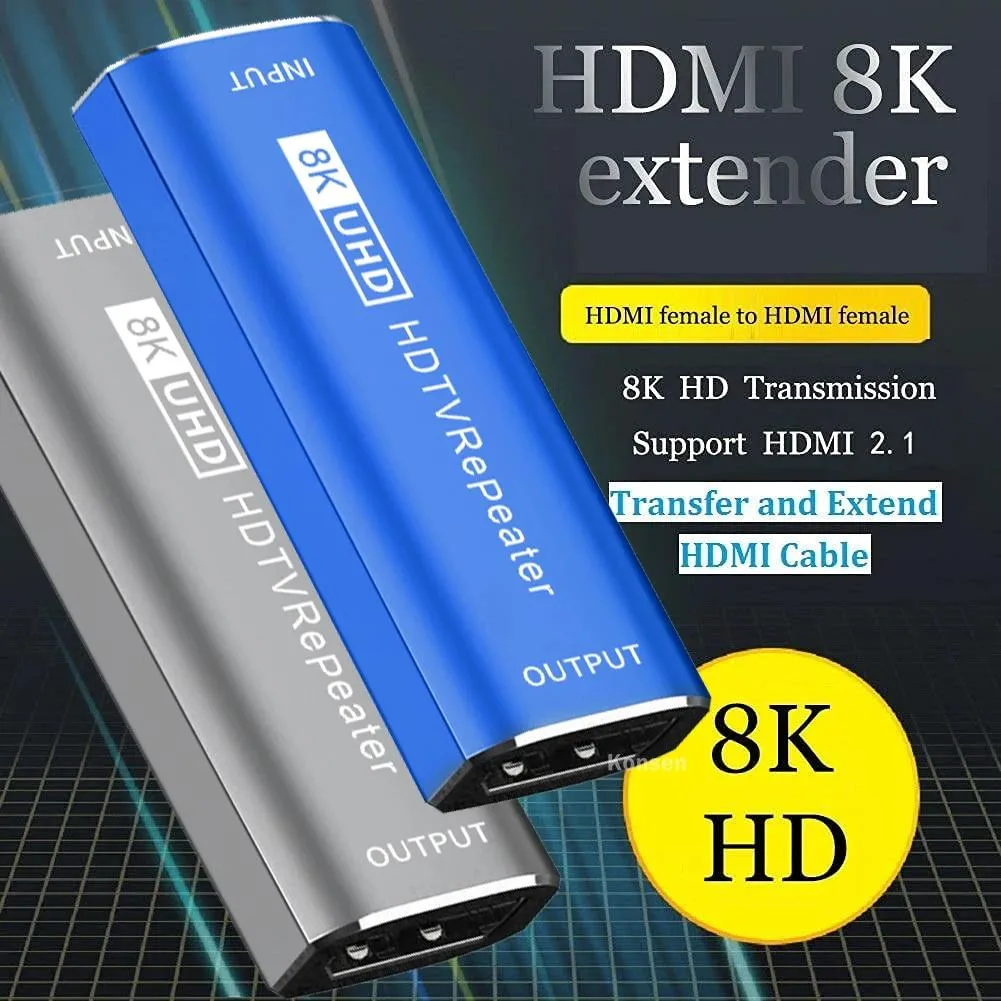

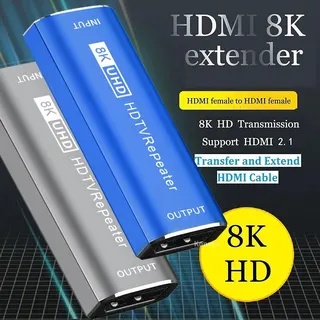

Small grey HDMI female-to-female repeater box

YINGHUA

YINGHUA HDMI 2.1 Repeater Extender 30M 8K 60Hz Grey

SKU CH-SXWG-SYSBE

Extends HDMI 2.1 signals up to 30 metres at 8K 60 Hz using female-to-female connectors

  • TypeHDMI
  • Extends 8K 60 Hz signals up to 30 metres
  • Boosts HDMI 2.1 signal for 20 m input plus 10 m output runs
  • Carries DTS-HD, Dolby TrueHD and other high-bitrate audio formats
  • Supports 8/10/12-bit deep colour and 3D video formats
  • Compact female-to-female connector works from –15 °C to +45 °C

What this extender does

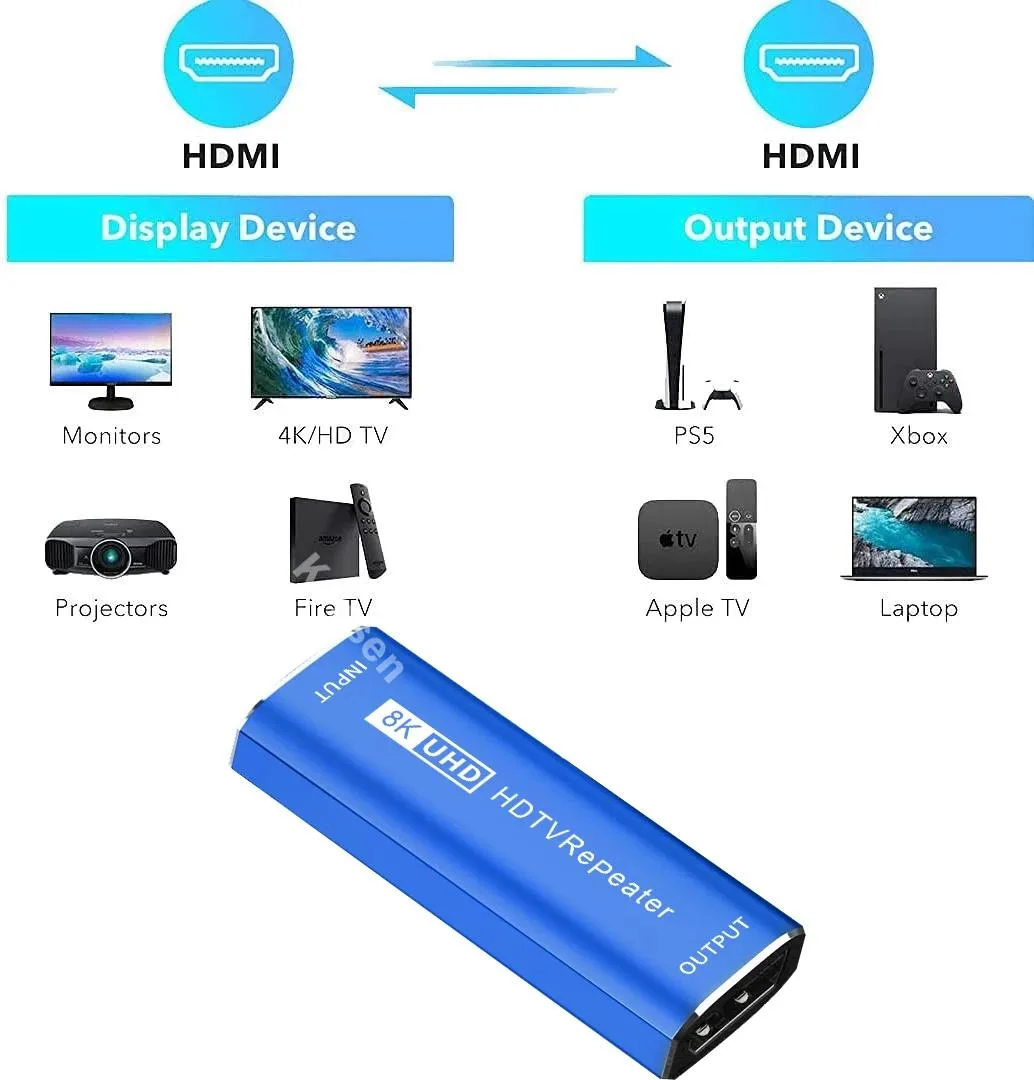

The YINGHUA HDMI 2.1 repeater amplifies and equalises a digital video signal so it can travel up to 30 metres total cable length. It accepts an 8K 60 Hz source and passes it through a female-to-female connector without adding latency or compression.

Resolution and bandwidth limit

The single specification that decides fit is the maximum supported format of 7680×4320 at 60 Hz over a 4×12 Gbps link. If your source or display requires a higher refresh rate or a different colour depth at 8K, this unit will not pass the signal.

Thermals noise and power

The device operates passively within a temperature range of -15 to +45 °C and draws power from the HDMI lines themselves. No fan or external supply is involved, so it adds no audible noise and negligible heat to a normal installation.

Highlights

  • Extends 8K 60 Hz signals up to 30 metres
  • Boosts HDMI 2.1 signal for 20 m input plus 10 m output runs
  • Carries DTS-HD, Dolby TrueHD and other high-bitrate audio formats
  • Supports 8/10/12-bit deep colour and 3D video formats
  • Compact female-to-female connector works from –15 °C to +45 °C

Specifications

TypeHDMI

Questions about this item

What resolution and refresh rate does the 8K 60Hz spec deliver on my display?

It passes up to 7680x4320 at 60Hz, so an 8K screen receives its full native resolution and frame rate.

How does the HDMI 2.1 interface limit the maximum signal bandwidth?

The repeater handles 4x12Gbps, which is the full HDMI 2.1 fixed-rate link bandwidth for 8K 60Hz video.

What cable lengths can I run on each side of the repeater?

Up to 20m on the input side and 10m on the output side using AWG24 HDMI standard cables.
