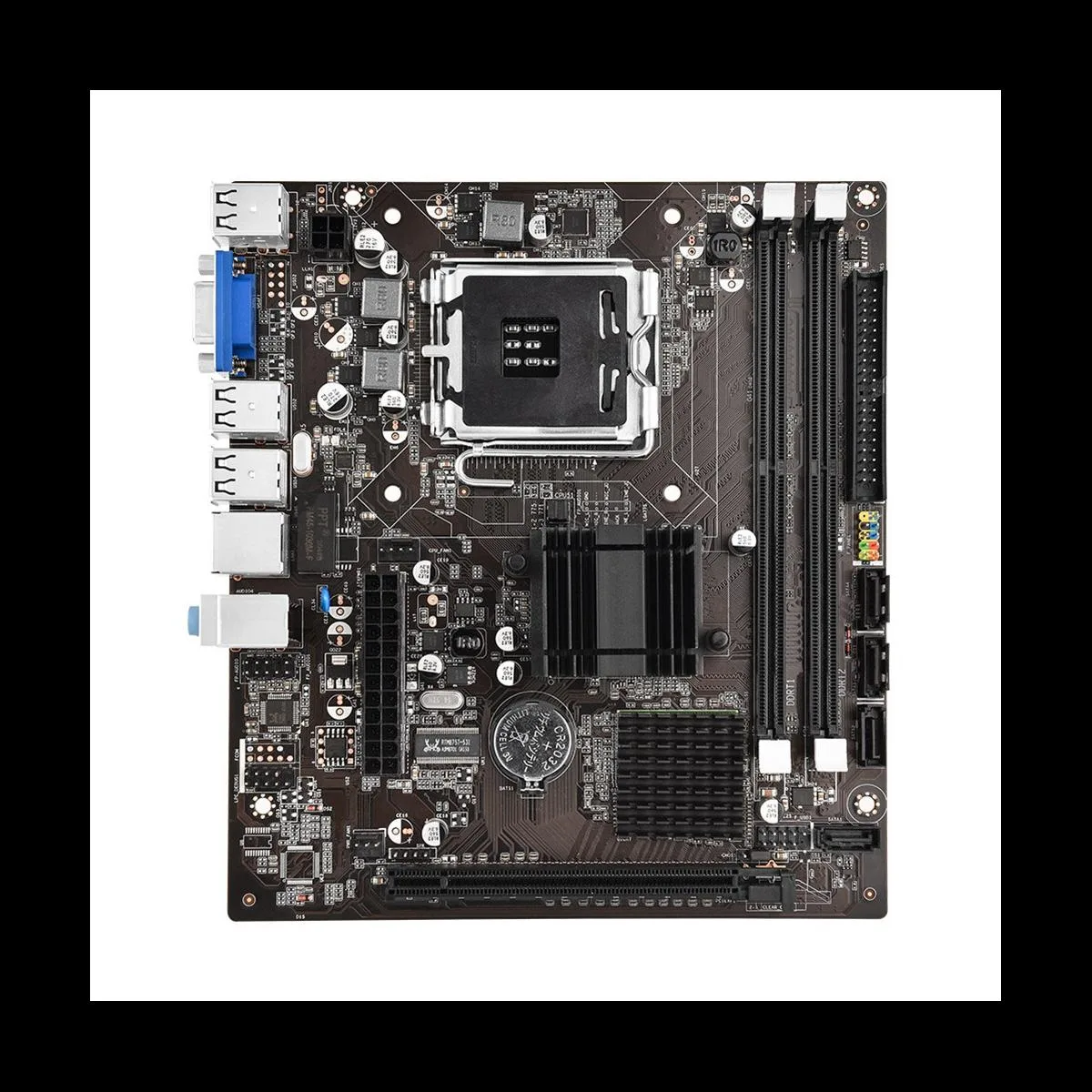

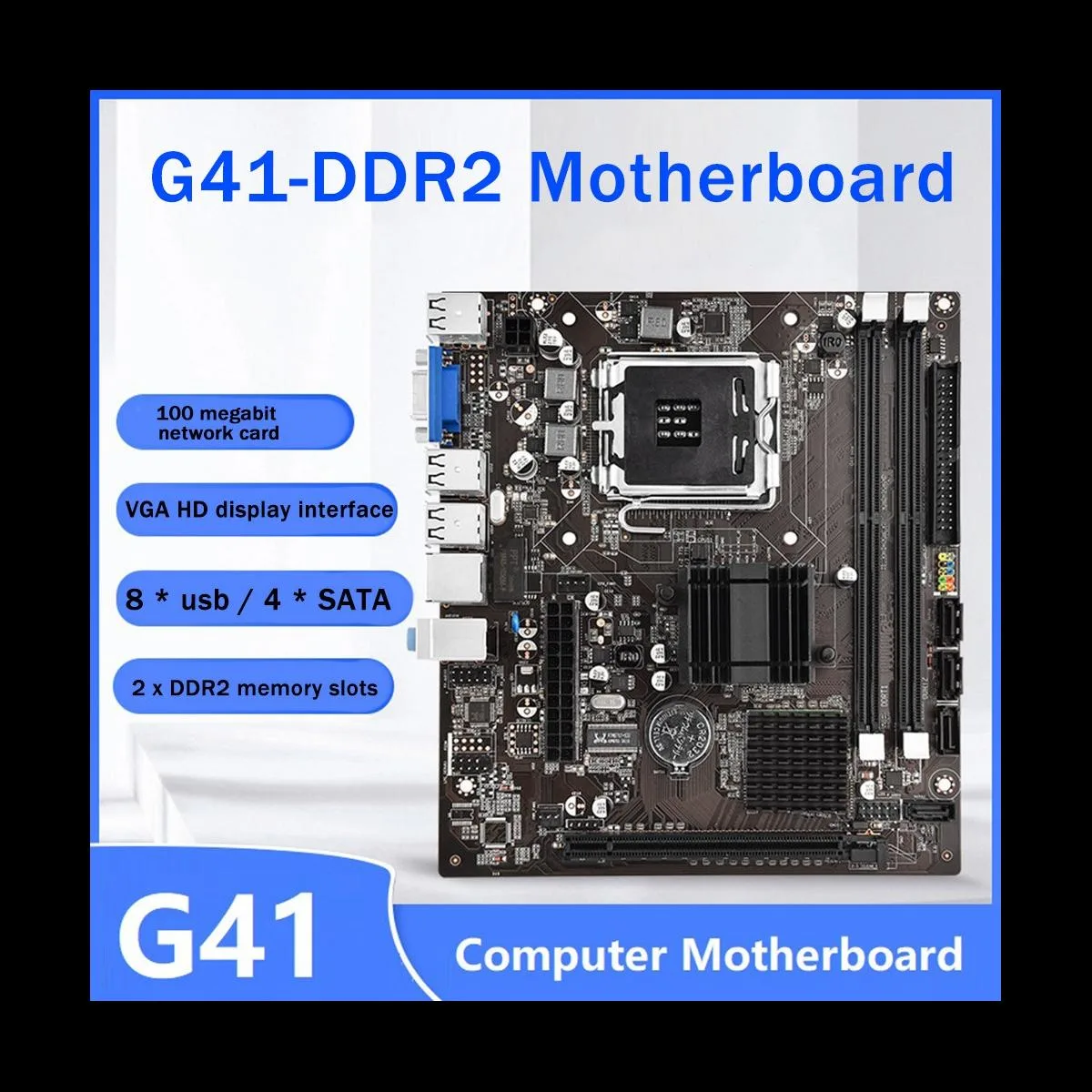

Black mATX server board, LGA771/775 socket, dual DDR2 slots, four SATA 2.0 ports, PCIe x16 slot

YINGHUA

YINGHUA G41 server motherboard LGA771/775 DDR2

SKU CH-M9Z3-TZBE3 MPN G41

Supports LGA771 and LGA775 CPUs with dual-channel DDR2 memory up to 8 GB, four SATA 2.0 ports, a PCI-E 16X slot, Realtek ALC662 5.1 audio, and 100 megabit Ethernet in a compact M-ATX form factor

  • CPU TypeIntel Atom
  • Supports LGA771 and LGA775 processors for flexible CPU choice
  • Dual-channel DDR2 memory up to 8GB for multitasking capacity
  • Four SATA 2.0 ports provide ample storage expansion
  • Realtek ALC662 5.1 HD Audio delivers surround sound
  • 100 megabit Ethernet via 8106E chip for wired connectivity

Socket LGA771/775 DDR2 server board

This YINGHUA G41 motherboard accepts Intel Atom processors in both LGA771 and LGA775 packages. It provides two dual-channel DDR2 slots with an 8 GB memory ceiling. The M-ATX form factor measures 190 mm by 170 mm and uses solid capacitors for longevity.

Dual LAN not present, no ECC

Builders needing dual gigabit links, IPMI remote management or ECC memory should choose a different platform. This board offers a single 100 megabit Ethernet port driven by an 8106E controller and standard unbuffered DDR2 only.

One PCI-E 16X and four SATA 2.0

Expansion is limited to a single PCI-E 16X graphics slot plus four SATA 2.0 ports for storage. If the chassis or workload requires additional x8 or x4 slots, or more than four drive connections, this motherboard will not fit.

Highlights

  • Supports LGA771 and LGA775 processors for flexible CPU choice
  • Dual-channel DDR2 memory up to 8GB for multitasking capacity
  • Four SATA 2.0 ports provide ample storage expansion
  • Realtek ALC662 5.1 HD Audio delivers surround sound
  • 100 megabit Ethernet via 8106E chip for wired connectivity

Specifications

CPU TypeIntel Atom

Questions about this item

How much memory can the dual-channel DDR2 layout actually use?

The board has two DDR2 slots in dual-channel mode and supports up to 8GB total.

What network speed does the 8106E controller provide in practice?

The onboard 8106E chip delivers 100 megabit Ethernet connectivity.

Will the 190mm by 170mm M-ATX board fit my case and power supply?

It uses the standard M-ATX footprint with a 24-pin and a 4-pin power connector, so it fits any case and PSU that accept that form factor.
