Green PCI-E Wi-Fi card with two gold antennas and low-profile bracket

YINGHUA

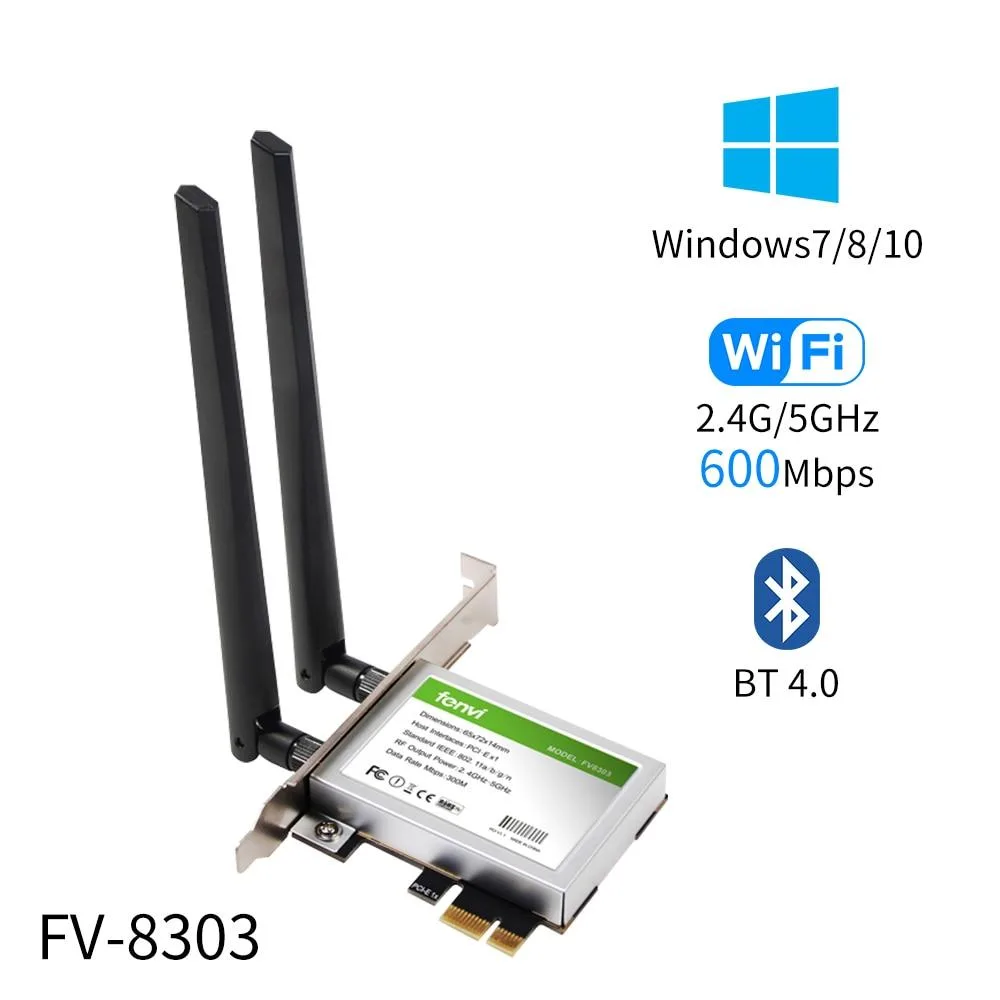

YINGHUA FV8303 600Mbps PCI-E Wi-Fi adapter Bluetooth 4.0

SKU CH-T2S3-WA6CT MPN FV8303

Adds dual-band Wi-Fi up to 600 Mbps and Bluetooth 4.0 to a desktop via PCIe with two antennas

  • TypePCIE Wi-Fi Adapter
  • Dual-band Wi-Fi up to 600 Mbps with two external antennas
  • Bluetooth 4.0 support for wireless peripherals
  • PCI Express x1 slot fits x4, x8 and x16
  • Windows 7, 8 and 10 on 32-bit and 64-bit
  • Low-profile bracket included for small-form-factor cases

Dual-band PCI-E adapter with Bluetooth 4.0

The YINGHUA FV8303 adds 802.11 a/b/g/n wireless and Bluetooth 4.0 to a desktop PC through a PCI-E x1, x4, x8 or x16 slot. It delivers up to 300 Mbps on 2.4 GHz and 300 Mbps on 5 GHz for a combined 600 Mbps link rate. Two external antennas are included for signal diversity. A low-profile bracket and Bluetooth cable are also supplied.

Replacing built-in Wi-Fi

This card upgrades a system that lacks Wi-Fi or relies on an older single-band adapter. The jump is worth it when you need simultaneous 2.4 GHz and 5 GHz operation plus Bluetooth 4.0 for peripherals. It is not for buyers who need the throughput of newer Wi-Fi standards or who require an M.2 or USB form factor.

Limited to 802.11n speeds and Windows 7 through 10

The 802.11n ceiling caps real-world throughput well below the 600 Mbps PHY rate, especially at distance or through walls. Bluetooth 4.0 lacks the range and data-rate improvements of later versions. Driver support ends at Windows 10 with no official provision for newer operating systems.

Highlights

  • Dual-band Wi-Fi up to 600 Mbps with two external antennas
  • Bluetooth 4.0 support for wireless peripherals
  • PCI Express x1 slot fits x4, x8 and x16
  • Windows 7, 8 and 10 on 32-bit and 64-bit
  • Low-profile bracket included for small-form-factor cases

Specifications

TypePCIE Wi-Fi Adapter

Questions about this item

Will the FV8303 fit in a PCI-E X1 slot and does it need a low-profile bracket?

The adapter uses a PCI-E X1 interface and is compatible with X1, X4, X8 and X16 slots; a low-profile bracket is included in the box for slim cases.

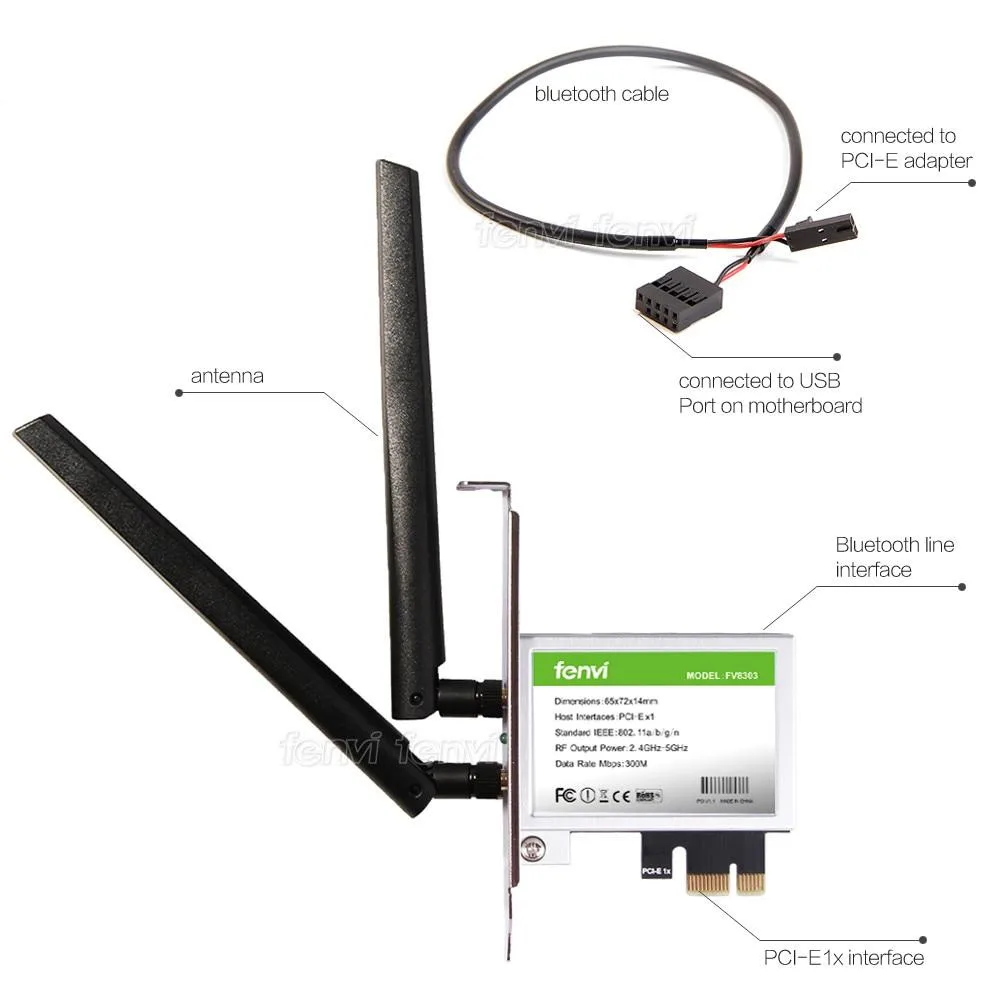

Which cable must be connected for Bluetooth 4.0 to work during installation?

Connect the supplied Bluetooth cable to an internal USB header on the motherboard; without it the Bluetooth 4.0 function will not operate.

Can the two antennas be replaced later if one breaks?

Yes, the antennas use standard RP-SMA connectors so you can swap in any compatible replacement antenna.
