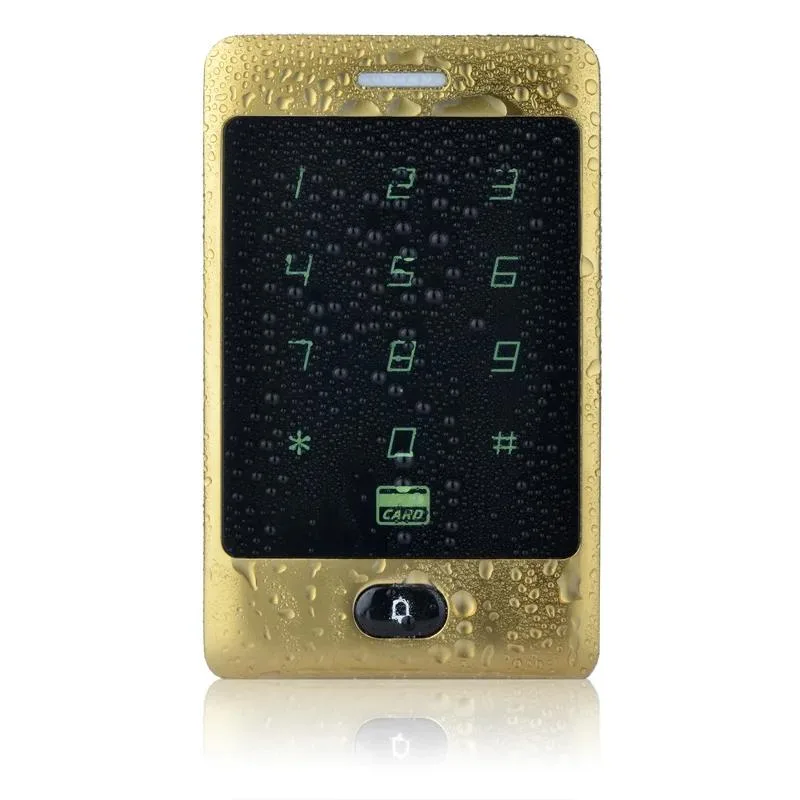

Golden metal RFID door lock with waterproof touch keypad and card reader

YINGHUA

YINGHUA BC40 RFID Door Lock Fat Golden 125kHz

SKU CH-FWPX-6Y6YJ

Waterproof metal RFID keypad lock supports 8000 cards and passwords at 125kHz with WG26/34 interface

  • TypeChain Guard
  • MaterialMetal
  • FunctionEntrance

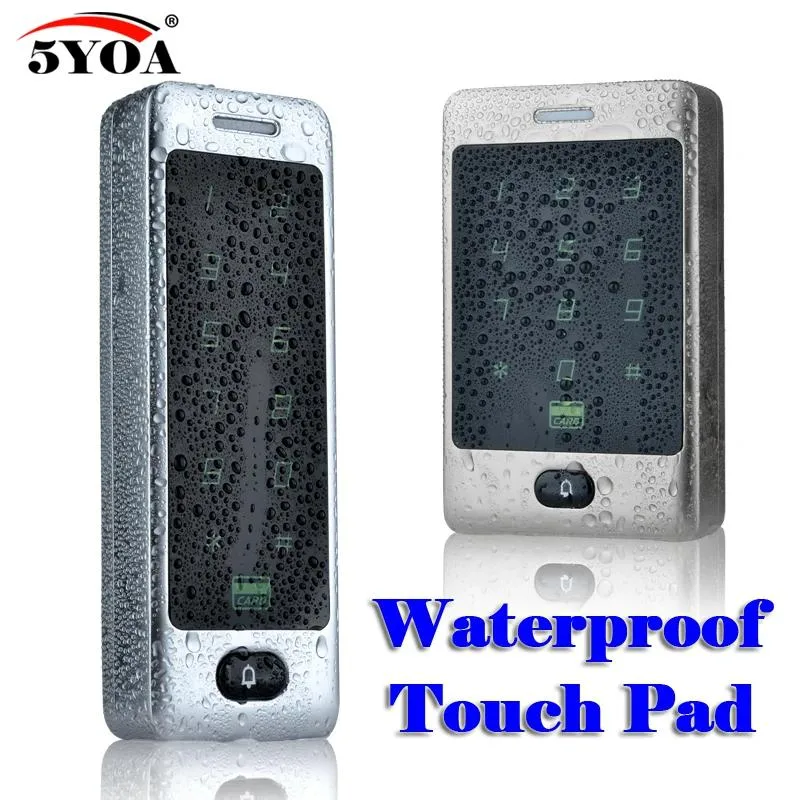

  • Waterproof touch panel withstands outdoor exposure
  • Stores 8000 users for large access lists
  • Operates from -20 to 70 Celsius
  • Supports card, PIN or card-plus-PIN entry
  • WG26/34 interface connects to external systems

Standalone RFID Door Lock

The BC40 is a waterproof metal access controller that operates at 125kHz frequency. It supports up to 8000 user cards and passwords for standalone operation. The unit functions as both a card reader and a standalone controller with a backlit touch keypad. It requires a DC12V power supply to operate the lock mechanism.

Power And Wiring Requirements

Verify that your installation can provide a stable DC12V source for the unit. The unlock relay is rated at 12VDC/2A for driving the electric strike or maglock. Ensure the operating environment stays within -20C to 70C temperature and 0-95% humidity. The device uses WG26/34 protocol for communication with other controllers.

Build Integration And Extras

The lock outputs active and passive signals plus an imported double-point relay for the locking hardware. An external exit button connects directly to the terminal for egress. The same series supports data copy and backup between units without a computer. It combines a proximity reader, keypad, and doorbell button in a single metal case.

Highlights

  • Waterproof touch panel withstands outdoor exposure
  • Stores 8000 users for large access lists
  • Operates from -20 to 70 Celsius
  • Supports card, PIN or card-plus-PIN entry
  • WG26/34 interface connects to external systems

Specifications

TypeChain Guard
MaterialMetal
FunctionEntrance

Questions about this item

Does the lock ship with cards, a power supply or an exit button, or must I buy them separately?

The unit is supplied as the reader and controller only; 125 kHz cards, a 12 V DC supply and an external exit button are not included and must be sourced separately.

Should I choose the WG26 or WG34 interface for my controller?

Both WG26 and WG34 are supported on the same terminal block; select the format that matches your existing access controller.

What does the 8000-user capacity mean for daily operation?

Up to 8000 unique cards or PINs can be stored locally, allowing the lock to run standalone without a PC connection.
