Light green metal RFID keypad with touch panel and doorbell button

YINGHUA

YINGHUA BC40 RFID Access Control Door Lock Light Green

SKU CH-K7CC-4V90K

A waterproof metal RFID access controller with keypad and card reader supporting 8000 users, operating from -20 to 70°C at 125 kHz

  • TypeChain Guard
  • MaterialMetal
  • FunctionEntrance

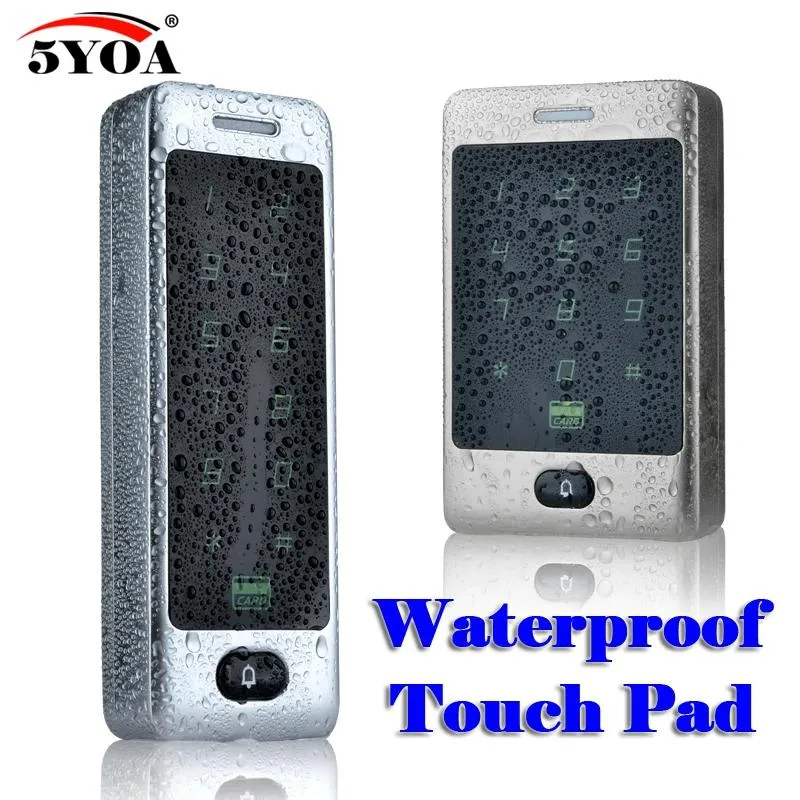

  • Waterproof metal case protects electronics in rain
  • 8000 user cards and passwords stored locally
  • RFID 125KHz cards plus keypad codes accepted
  • Standalone operation with no computer connection needed
  • WG26 and WG34 interfaces for system integration

Standalone RFID Door Controller

The YINGHUA BC40 operates as a self-contained access control unit for entrances, requiring no computer connection to manage credentials. It supports up to 8000 user cards and passwords with full programming handled directly on the keypad. The device reads 125KHz RFID transponders and offers card, password or combined verification modes. A management card function simplifies administration for residential or commercial entry points.

Integration with Locks and Exit Hardware

The unit provides active and passive lock signal outputs plus an imported double-point relay rated at 12VDC 2A to drive electric strikes or magnetic locks. WG26 and WG34 input and output ports allow connection to external readers or controllers. A dedicated terminal for an external release button enables standard exit-button wiring. The metal case includes a backlit touch panel and doorbell button for visitor use.

Environmental Durability and Continuous Operation

Rated for ambient temperatures from -20 to 70 Celsius and humidity up to 95 percent, the waterproof housing is designed to prevent ingress through rear cable openings. The controller draws power from a DC12V supply and maintains a low quiescent current during idle periods. Relay contacts and the built-in reader are specified for sustained daily cycling without requiring a host PC or scheduled downtime.

Highlights

  • Waterproof metal case protects electronics in rain
  • 8000 user cards and passwords stored locally
  • RFID 125KHz cards plus keypad codes accepted
  • Standalone operation with no computer connection needed
  • WG26 and WG34 interfaces for system integration

Specifications

TypeChain Guard
MaterialMetal
FunctionEntrance

Questions about this item

How many users can the BC40 store before the memory limit is reached?

The BC40 stores up to 8000 user cards and passwords in its built-in memory.

What is the operating temperature range for the BC40 when running continuously?

The unit is rated for ambient temperatures from -20°C to 70°C during sustained operation.

Which power supply must the buyer provide for the BC40 to function?

A DC 12 V power source is required; the lock relay draws up to 2 A at 12 VDC.
