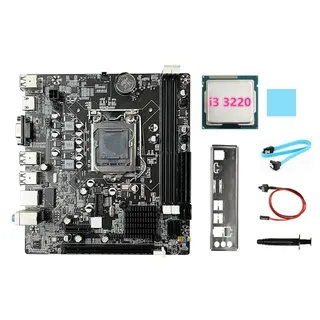

Black rectangular server motherboard with installed CPU, SATA and switch cables, and baffle included

YINGHUA

YINGHUA B75 server motherboard with i3-3220 CPU, SATA cable, switch cable, baffle

SKU CH-R1FH-GAMCB MPN B75

LGA 1155 server board bundled with an i3-3220 CPU, SATA cable, switch cable and baffle

  • CPU TypeIntel Atom
  • Ready-to-use kit with i3-3220 CPU included
  • B75 chipset on LGA1155 socket for 2nd/3rd gen Intel
  • 16 GB DDR3 maximum across two slots at 1600 MHz
  • 1×PCIe x16 plus 1×PCIe x1 for expansion cards
  • 100 M LAN with HDMI and VGA video outputs

Ready-to-run LGA1155 server board

This YINGHUA B75 motherboard arrives with an Intel Core i3-3220 processor already installed, plus a SATA cable, a switch cable and a baffle. The LGA1155 socket and B75 chipset support second- and third-generation Intel Core i3, i5, i7, Pentium and Celeron CPUs. Two DDR3 DIMM slots accept up to 16 GB of memory at 1066, 1333 or 1600 MHz. A PCIe x16 slot and a PCIe x1 slot provide expansion for graphics or add-in cards.

Suits compact servers and legacy upgrades

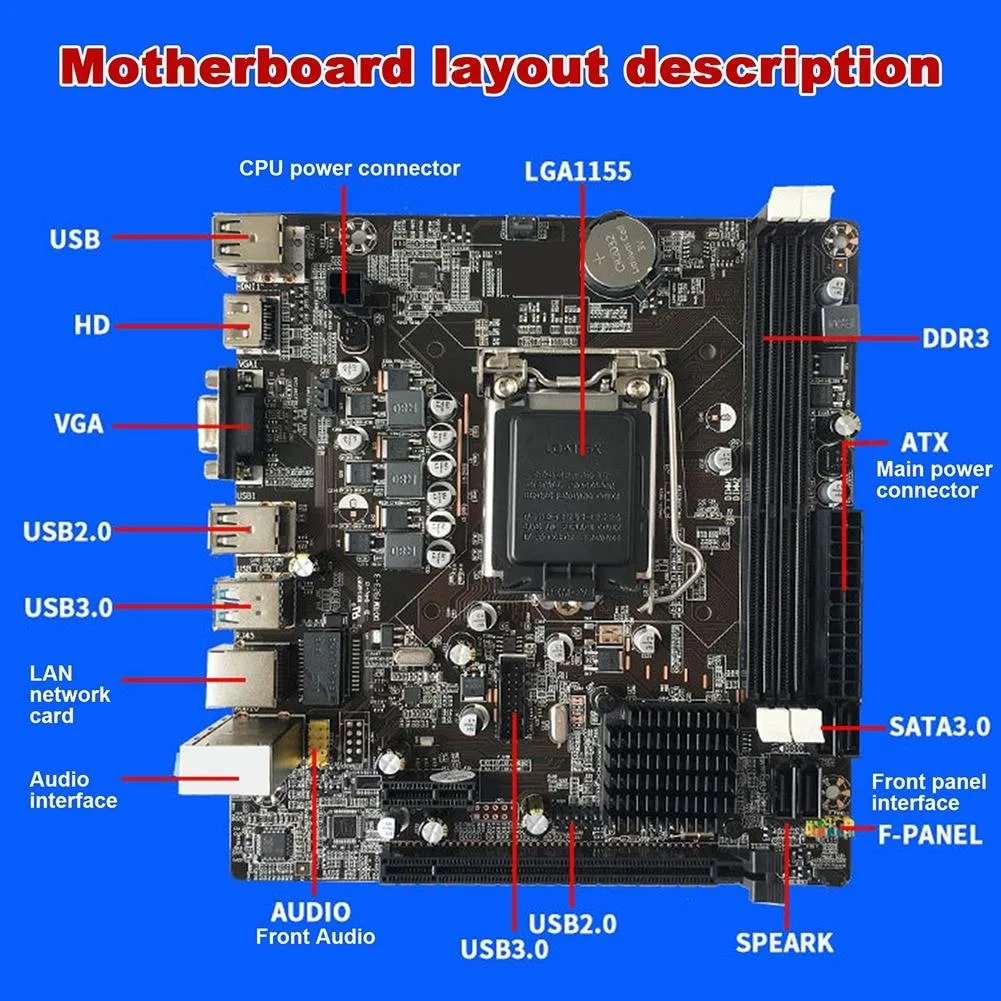

The board fits 190 x 170 mm chassis and delivers six USB 2.0 ports, two USB 3.0 ports, three SATA 2.0 ports, one SATA 3.0 port, HDMI, VGA, 100 Mbit LAN and audio. It is not for builders who need more than two memory slots, faster than 100 Mbit networking, or additional PCIe lanes beyond the single x16 and x1 connectors.

Deciding spec: two DDR3 slots limited to 16 GB total

Maximum memory capacity is 16 GB across the two DDR3 slots, so the board cannot serve workloads that require 32 GB or more. If your application fits within that limit, the bundled i3-3220 and included cables make this a complete drop-in platform.

Highlights

  • Ready-to-use kit with i3-3220 CPU included
  • B75 chipset on LGA1155 socket for 2nd/3rd gen Intel
  • 16 GB DDR3 maximum across two slots at 1600 MHz
  • 1×PCIe x16 plus 1×PCIe x1 for expansion cards
  • 100 M LAN with HDMI and VGA video outputs

Specifications

CPU TypeIntel Atom

Questions about this item

What case dimensions fit the 190 x 170mm board?

The board measures 190 x 170mm, so any chassis accepting micro-ATX or larger will accommodate it.

How do I install the included i3-3220 into the LGA1155 socket?

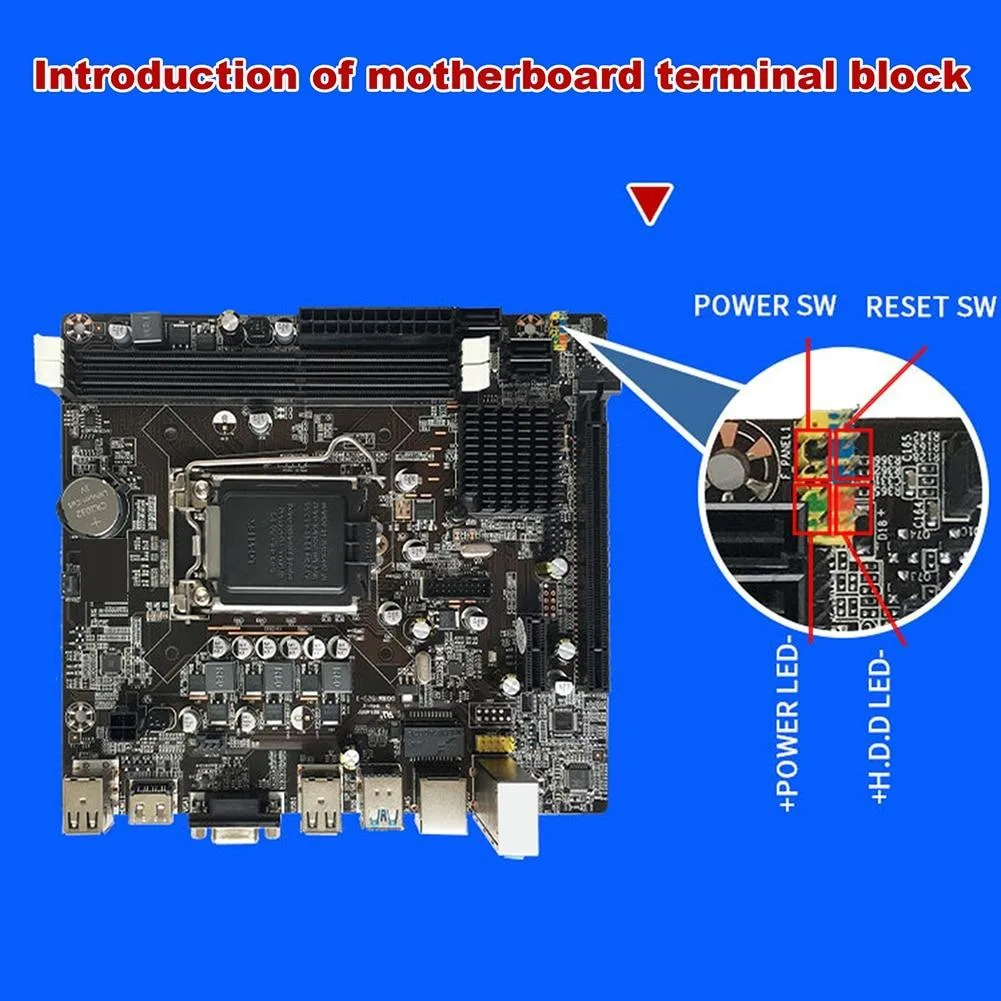

Align the CPU notches with the socket keys, lower the lever gently, and attach the cooler before connecting the switch cable.

Which memory modules can I upgrade to later?

Two DDR3 desktop DIMMs up to 8 GB each, running at 1066, 1333 or 1600 MHz, for a 16 GB maximum.
