Black B75 server motherboard, LGA1155 socket, two DDR3 slots, G620 CPU, cables included

YINGHUA

YINGHUA B75 Server Motherboard + G620 CPU LGA1155 DDR3

SKU CH-D7FC-W7VYS MPN B75

LGA 1155 server board with included G620 CPU, two DDR3 slots up to 16 GB, PCIe x16, SATA 3.0 and 100 M LAN

  • CPU TypeIntel Atom
  • LGA1155 socket supports Intel 2nd and 3rd generation Core i3, i5, i7, Pentium and Celeron processors
  • Dual DDR3 memory slots accept up to 16 GB at 1066, 1333 or 1600 MHz
  • PCI Express x16 and x1 slots provide expansion for graphics and add-in cards
  • Four SATA 2.0 and one SATA 3.0 ports connect multiple storage drives

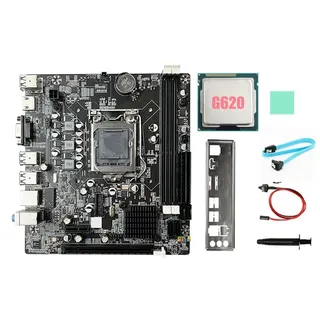

  • G620 dual-core processor included as a bonus item with the motherboard

Server bundle with G620 CPU

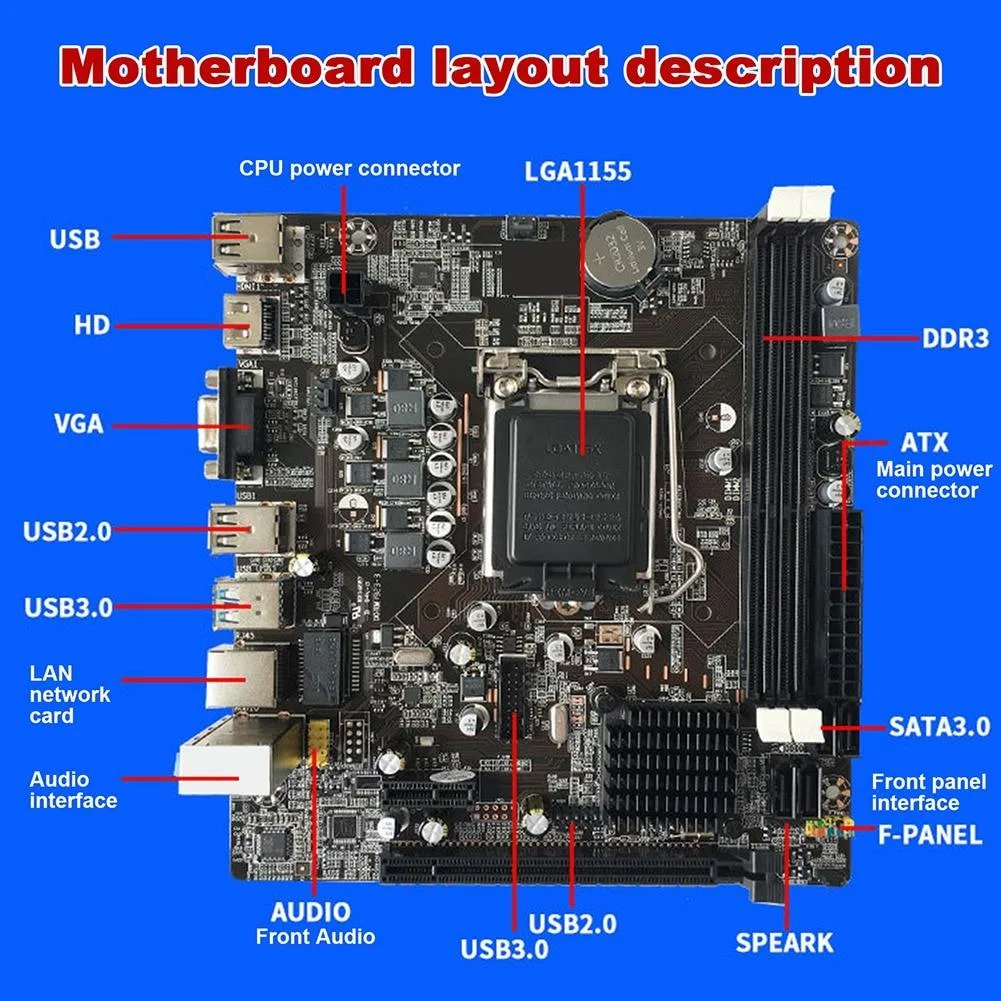

The YINGHUA B75 motherboard ships with a socket 1155 Intel G620 processor, two DDR3 memory slots supporting up to 16 GB at 1600 MHz, one PCI Express x16 slot, one PCI Express x1 slot, SATA 2.0 and 3.0 ports, 100 Mbit LAN, HDMI and VGA video outputs, plus USB 2.0 and 3.0 headers. A SATA cable, switch cable and I/O baffle are included in the package.

Fits legacy LGA1155 upgrades

This bundle suits technicians repairing or expanding older servers and workstations that still run second- or third-generation Core i3, i5, i7, Pentium or Celeron CPUs and DDR3 memory. It is not for builds that require more than two memory slots, more than one full-size expansion slot, or integrated graphics beyond the basic HDMI and VGA outputs provided.

Maximum memory is 16 GB DDR3

The board accepts two unbuffered DDR3 DIMMs up to 8 GB each, giving a hard ceiling of 16 GB total capacity at speeds of 1066, 1333 or 1600 MHz. Any configuration needing more memory than this limit will require a different platform.

Highlights

  • LGA1155 socket supports Intel 2nd and 3rd generation Core i3, i5, i7, Pentium and Celeron processors
  • Dual DDR3 memory slots accept up to 16 GB at 1066, 1333 or 1600 MHz
  • PCI Express x16 and x1 slots provide expansion for graphics and add-in cards
  • Four SATA 2.0 and one SATA 3.0 ports connect multiple storage drives
  • G620 dual-core processor included as a bonus item with the motherboard

Specifications

CPU TypeIntel Atom

Questions about this item

How do I install the B75 motherboard and G620 CPU, and which step is often missed?

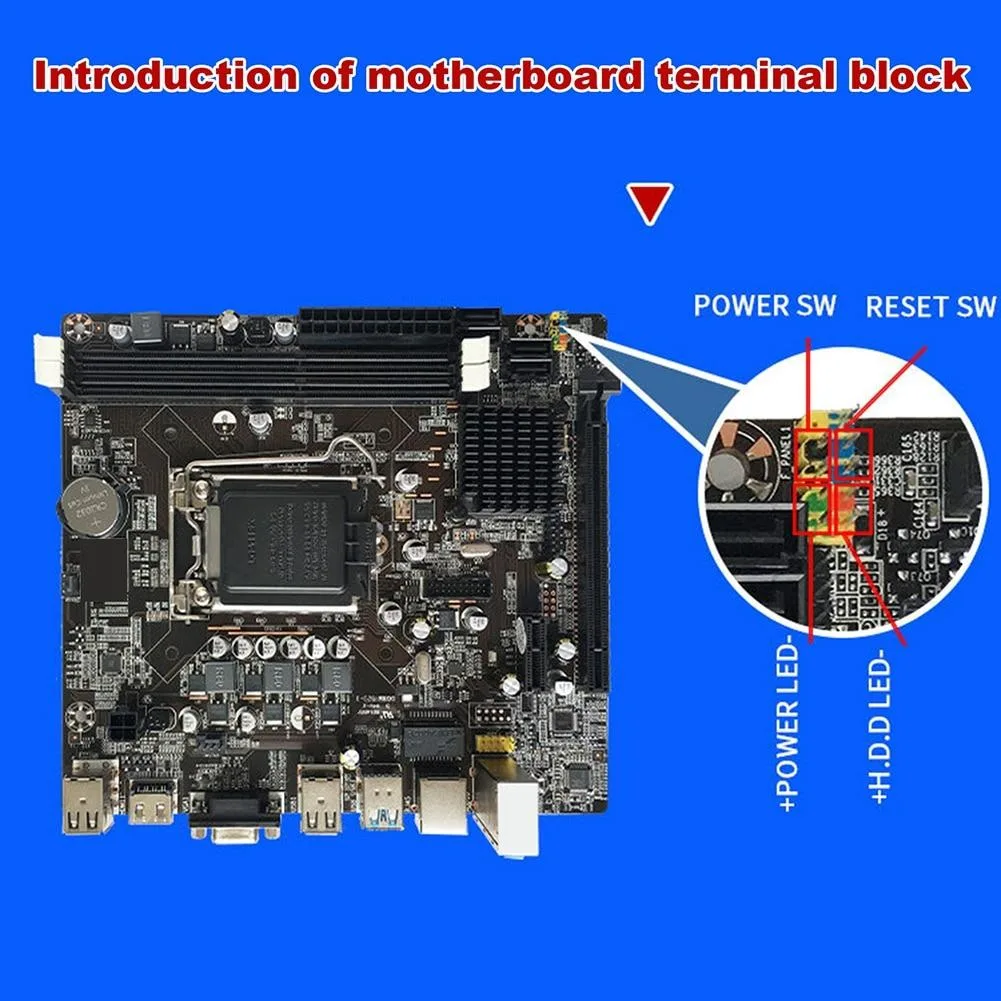

Mount the board using its 190 x 170 mm dimensions, seat the LGA1155 processor, attach the switch cable to the front-panel header, and connect the 3.0 and 2.0 SATA cables — the step most often missed is plugging the 4-pin CPU power near the socket.

What maintenance or replacement will this board need over time?

The DDR3 slots support up to 16 GB at 1066, 1333 or 1600 MHz; memory modules can be swapped later, and the SATA 2.0 and 3.0 drives attached to the four ports may need replacement as they age.

What limit appears first under sustained load?

The 100M LAN port caps sustained network throughput, and the two DDR3 slots max out at 16 GB total, so memory capacity or network bandwidth will be the first bottleneck.
