Black rectangular media player with eight HDMI ports, UK plug, Android 4.4 system

YINGHUA

YINGHUA 8-Way HDMI KVM Switch 4K 30Hz Android 4.4

SKU CH-52V4-X09FM

Plays 4K 30Hz video across eight simultaneous HDMI outputs from an Android 4.4 media box with H.265 decoding

  • TypeHDMI
  • Plug-and-play setup with eight simultaneous HDMI outputs
  • 4K 30 Hz playback powered by 2.0 GHz eight-core GPU and 2G DDR3
  • H.265 and H.264 4K decoding plus MPEG 1080p 60 Hz support
  • Android 4.4 system enables app installation and screencasting

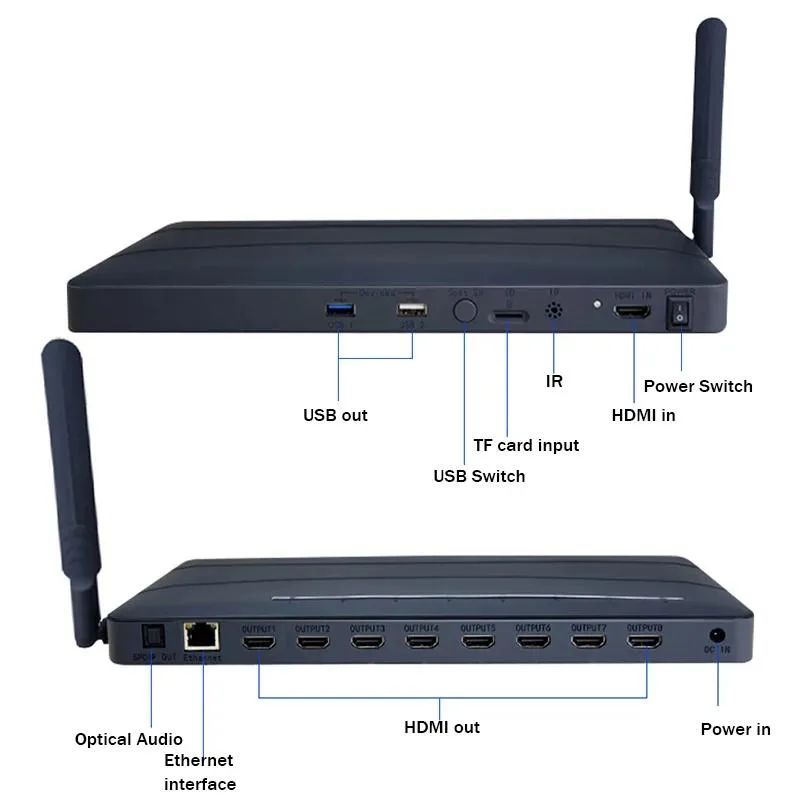

  • SPDIF audio extraction and dual USB 2.0 ports for media playback

8-Way 4K HDMI Multimedia Player

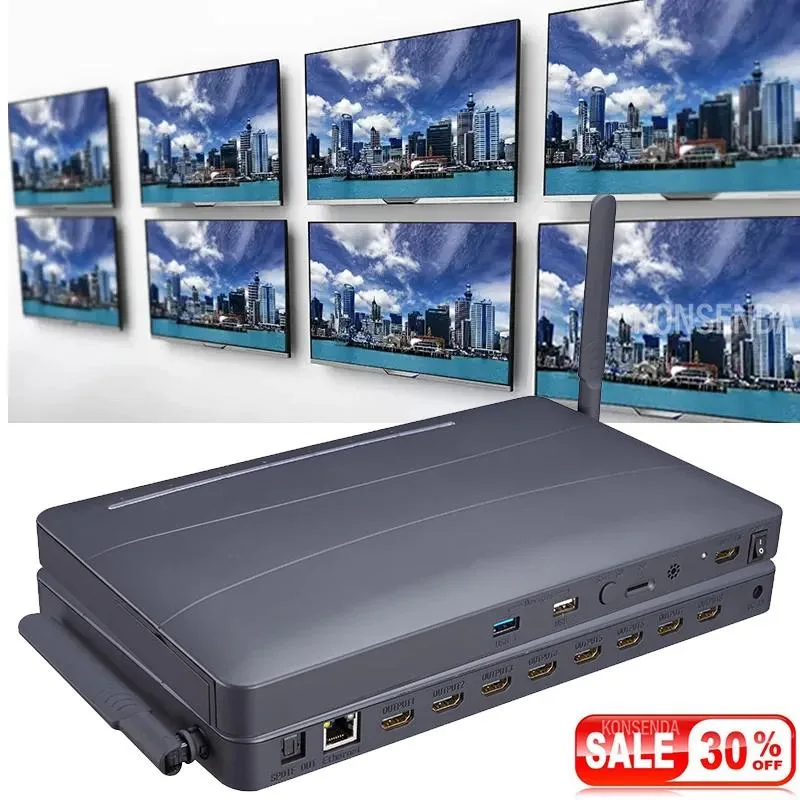

The YINGHUA unit combines an eight-way HDMI splitter with an Android 4.4 media player for simultaneous 4K 30 Hz output across eight displays. It decodes H.265 and H.264 at 4K 30 Hz plus MPEG and AVS formats at 1080p 60 Hz. Two USB 2.0 ports and a Micro SD slot accept local video files or firmware updates. A 2.0 GHz eight-core GPU and 2 GB DDR3 RAM drive the system.

Retail installers and digital-signage operators

Buyers who need HDMI 2.0 bandwidth, 4K 60 Hz output, or a modern Android version for current apps should look elsewhere. The HDMI 1.4 interface and 300 MHz pixel clock limit resolution to 4K 30 Hz. Android 4.4 no longer receives security updates and cannot run software that targets newer API levels. Wired Ethernet and Wi-Fi are present, but no Bluetooth or advanced streaming protocols are listed.

HDMI 1.4 4K 30 Hz eight-way output

The single specification that decides fit is the HDMI 1.4 interface capped at 4K 30 Hz across all eight outputs simultaneously. If the installation requires higher refresh rates, deeper colour at 4K, or HDCP 2.2 handshake support, this player will not meet the requirement. For standard 4K 30 Hz signage walls driven from local storage or network streams, the eight synchronous outputs match the brief.

Highlights

  • Plug-and-play setup with eight simultaneous HDMI outputs
  • 4K 30 Hz playback powered by 2.0 GHz eight-core GPU and 2G DDR3
  • H.265 and H.264 4K decoding plus MPEG 1080p 60 Hz support
  • Android 4.4 system enables app installation and screencasting
  • SPDIF audio extraction and dual USB 2.0 ports for media playback

Specifications

TypeHDMI

Questions about this item

Which Android version and RAM size should I choose for smooth 4K playback?

The unit runs Android 4.4 with 2G DDR3 RAM and a 2.0 GHz eight-core GPU, so there is no alternative configuration to select.

What does the 4K 30Hz headline mean for actual video output?

The player decodes H.265 and H.264 at 4K 30Hz and sends the signal through eight simultaneous HDMI 1.4 ports at up to 4k x2k@30Hz.

How does HDMI 1.4 limit the bandwidth and cable length I can use?

HDMI 1.4 caps the link at 300Mhz bandwidth and 3G baud rate, and the spec allows AWG26 cables up to 8 metres on both input and output.
