Black rectangular box with seven HDMI inputs one output and AU power plug

YINGHUA

YINGHUA 7x1 HDMI 2.0 KVM Switch 4K 60Hz AU Plug

SKU CH-HAQ9-30VMH

Connects seven HDMI sources to one display with 4K 60Hz HDR and HDCP 2.2 support, switched by remote or front buttons

  • TypeHDMI
  • Connect 7 HDMI sources to one display
  • Enjoy 4K 60Hz HDR with HDCP 2.2
  • Switch instantly via remote or front buttons
  • Deep 24/30/36-bit colour for richer visuals
  • Supports 3D video formats for immersive viewing

7x1 HDMI 2.0 KVM Switch for Multi-Source Setups

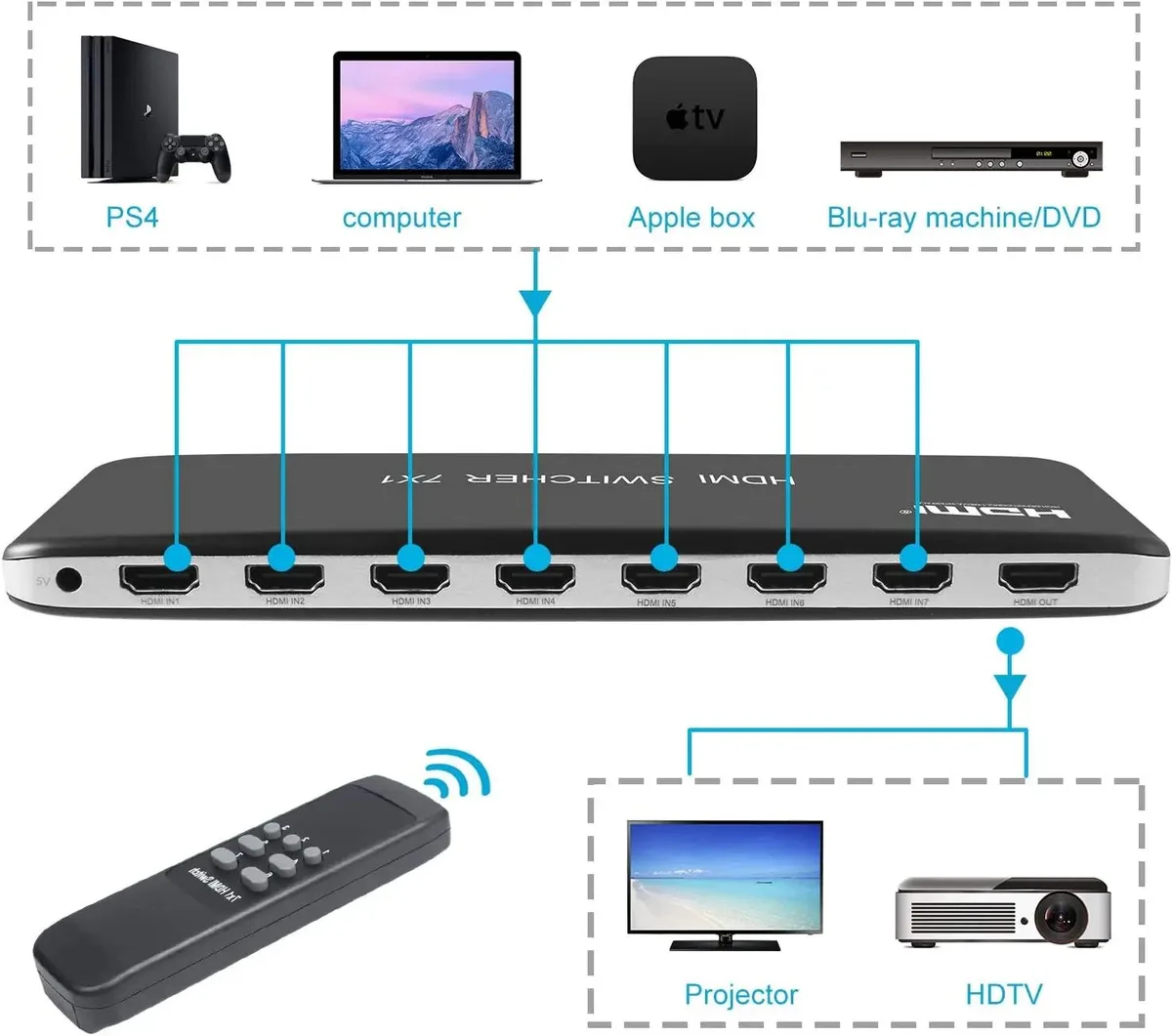

This HDMI 2.0 switch connects seven source devices to a single display. It supports video resolutions up to 4K at 60Hz with HDR and HDCP 2.2 compliance. The unit is designed for users managing multiple consoles, players, or PCs on one screen.

Cable Length Limits at 4K 60Hz and Lower Resolutions

At 4K 60Hz the switch accepts input cables up to 3 metres and output cables up to 5 metres using HDMI 2.0 standard cables. For 4K 30Hz and lower resolutions the input limit extends to 8 metres and the output limit to 8 metres with AWG26 cables. Longer runs beyond these figures are not supported by the specification.

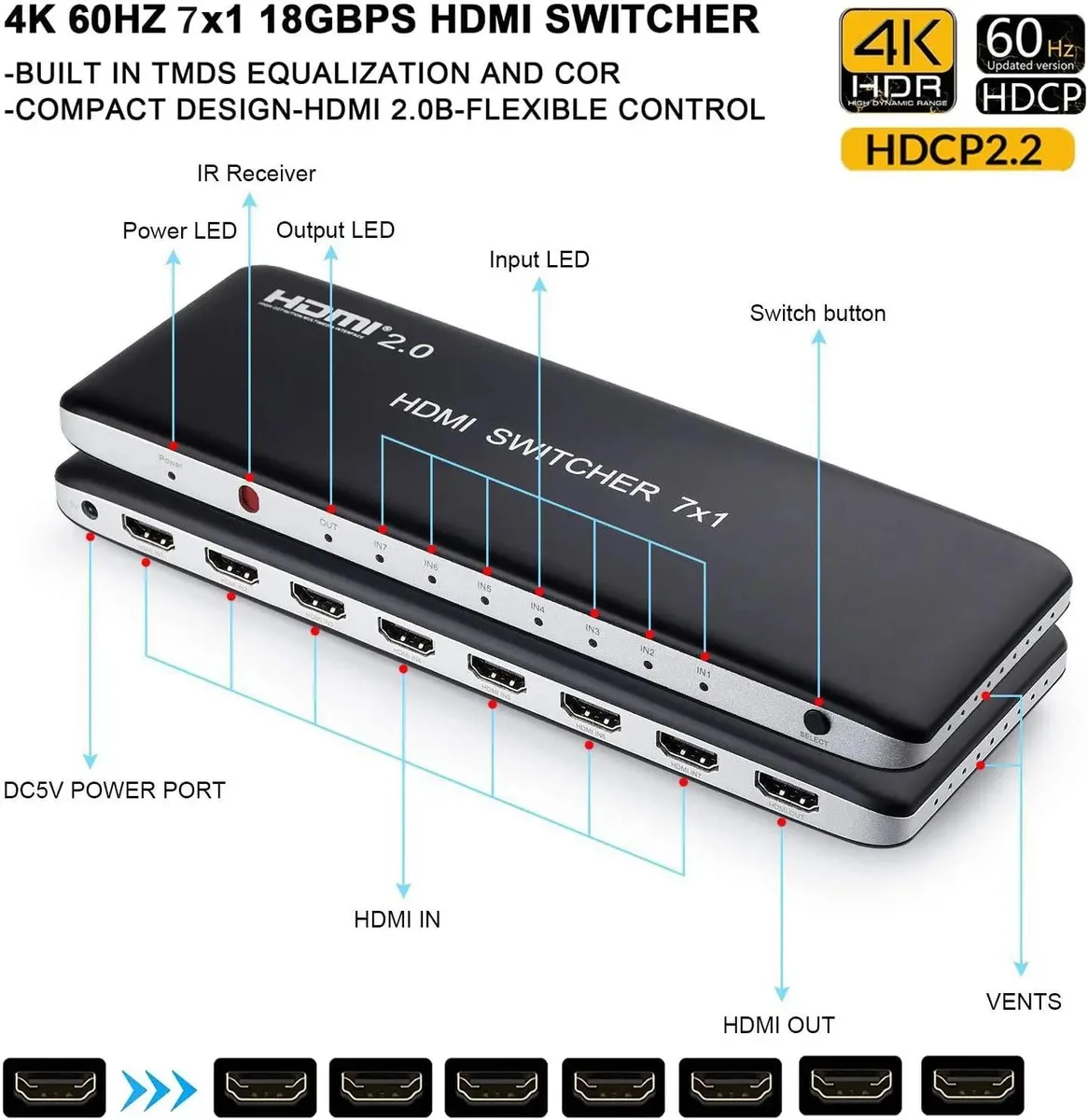

Powered Operation with Remote and Button Switching

The device requires a DC 5V 1A power supply to function and switches sources via the included remote control or front-panel buttons. No software drivers are needed for basic operation. Ensure the power adapter is connected before troubleshooting signal loss or switching failures.

Highlights

  • Connect 7 HDMI sources to one display
  • Enjoy 4K 60Hz HDR with HDCP 2.2
  • Switch instantly via remote or front buttons
  • Deep 24/30/36-bit colour for richer visuals
  • Supports 3D video formats for immersive viewing

Specifications

TypeHDMI

Questions about this item

Should I pick the 7-port model or a smaller switch for my setup?

The 7x1 model handles seven sources like PS4, PC, DVD players and set-top boxes to one screen; choose it only if you need that many inputs.

What does 4K 60Hz actually deliver on my TV?

It passes 4K at 60 Hz with HDR and 24/30/36-bit deep colour, provided you use HDMI 2.0 cables no longer than 3 metres.

How does HDMI 2.0b with HDCP 2.2 limit what I can watch?

HDMI 2.0b caps video at 6 Gbps and 600 MHz TMDS clock, so 4K 60Hz is the ceiling; HDCP 2.2 allows protected 4K streams but blocks older non-compliant sources.
