Compact black metal box with front-panel buttons and multiple HDMI ports on the rear

YINGHUA

YINGHUA 6x1 HDMI KVM Multi Viewer 180° 232

SKU CH-QQNA-MJ0AP

Displays six HDMI sources on one screen with picture-in-picture, zoom, rotation and USB keyboard-mouse switching via buttons, IR or RS-232

  • TypeHDMI
  • Displays six HDMI sources simultaneously on one screen
  • Seamless switching between six inputs without signal loss
  • Flexible layouts including PIP, POP, PBP and quad view
  • Each window rotates 180° and scales freely via mouse
  • Control via front buttons, IR remote or RS-232

Six-input HDMI multi-viewer

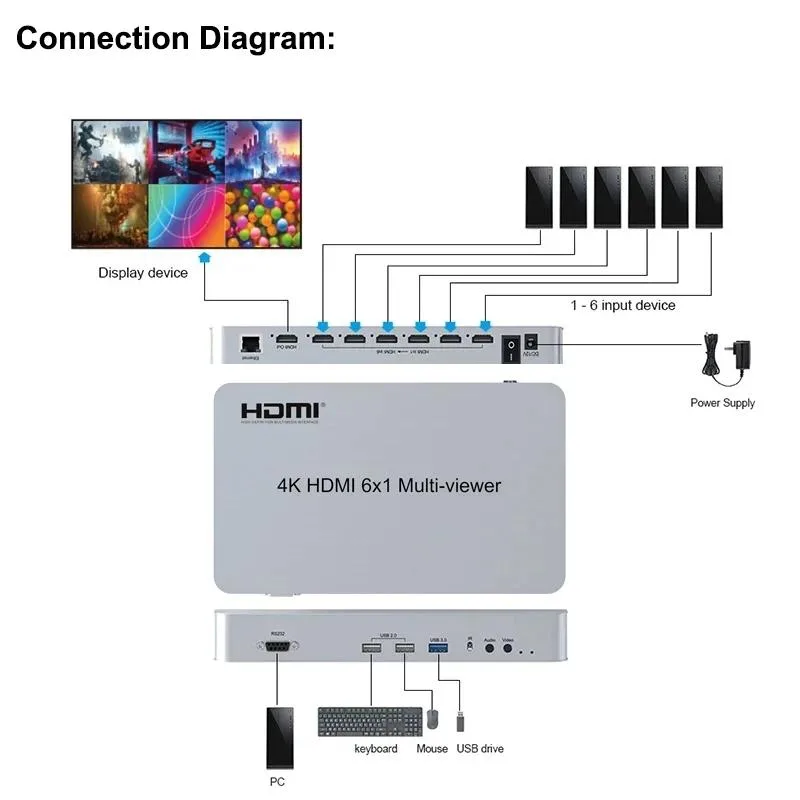

The YINGHUA 6x1 HDMI KVM Multi Viewer accepts six HDMI sources and combines them on a single display with flexible screen segmentation. Operators can switch between inputs seamlessly using front-panel buttons, RS-232 commands or the included IR remote. USB keyboard and mouse pass-through lets one workstation control all connected sources. Touch-screen overlay is also supported for interactive installations.

Layout capacity and headroom

Up to six 1080p signals can be shown simultaneously in picture-in-picture, picture-by-picture, quad or full-screen arrangements. Each window can be moved, resized or rotated 180 degrees directly with the mouse. The processor handles synchronous switching without visible frame drops, but only one HDMI output is provided so a second display requires an external splitter. Audio follows the active window and can be muted per segment.

HDMI interface practical limits

The single HDMI output carries the combined layout at the resolution of the connected display, so total bandwidth is constrained by that link. RS-232 control uses a standard DB-9 port at 232 baud for automation systems. No network port or wireless control is built in, limiting remote management to serial or IR line-of-sight. Buyers needing IP-based KVM or more than one simultaneous output should consider a matrix switcher instead.

Highlights

  • Displays six HDMI sources simultaneously on one screen
  • Seamless switching between six inputs without signal loss
  • Flexible layouts including PIP, POP, PBP and quad view
  • Each window rotates 180° and scales freely via mouse
  • Control via front buttons, IR remote or RS-232

Specifications

TypeHDMI

Questions about this item

Will the six HDMI inputs and single HDMI output work with my existing 1080p sources and display?

Yes, the unit accepts six HDMI sources and delivers one HDMI output, supporting multi-view layouts such as PIP, POP, PBP, single, dual and four-image modes on the connected screen.

How can I verify the RS-232 control is functioning after installation?

Send a switching command over the RS-232 port; the corresponding input should appear on the output immediately, confirming the serial link is active.

Does the package include the IR remote and RS-232 cable, or must I source them separately?

The box contains the 6x1 HDMI KVM multi-viewer, an IR remote and a USB keyboard/mouse cable; an RS-232 cable is not included and must be purchased separately.
