White rectangular transmitter and receiver units with HDMI, USB, Ethernet and 3.5mm audio ports

YINGHUA

YINGHUA 60M USB KVM HDMI Extender over Cat5e Cat6 (AU Plug)

SKU CH-BSQP-RZDJC

Extends HDMI video and USB control up to 60 m over Cat5e or Cat6 with 1080p resolution and 3.5 mm audio output

  • TypeHDMI
  • Control a PC from up to 60 m away using a single Cat 5e/6 cable
  • Uncompressed 1080p video at 60 Hz for sharp remote display
  • HDMI audio extraction via 3.5 mm stereo output on both transmitter and receiver
  • USB mouse and keyboard extension over the same Ethernet link
  • IR control included for managing the remote source

Remote PC Control Over 60 Metres

This USB HDMI KVM extender lets you operate a computer from up to 60 metres away using a single qualified Cat 5e or Cat 6 cable. It delivers uncompressed 1080p video and USB keyboard and mouse signals to a remote monitor. The kit includes transmitter and receiver units with Australian power plugs. It supports Windows and Mac operating systems.

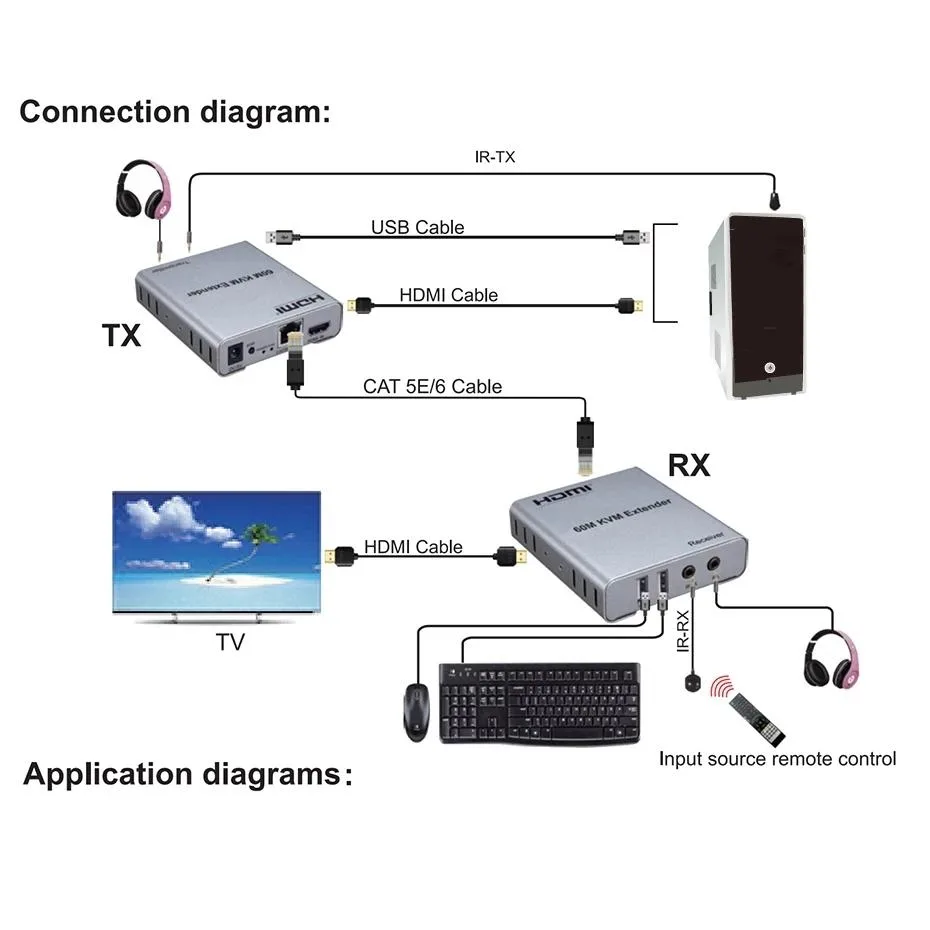

Build Integration With Cat Cabling

The extender replaces a direct HDMI and USB link with one Ethernet cable run, freeing up space around the host PC. Both transmitter and receiver provide 3.5 mm stereo audio output jacks for local or remote sound. IR control support allows remote switching or device management. No software drivers are required for basic keyboard, mouse and video operation.

Video Capacity And Distance Limits

Uncompressed 1080p at 60 Hz or 1920x1200 resolution is supported at the full 60 metre reach over Cat 6. Cat 5e cable may reduce the maximum reliable distance below the rated limit. The unit handles standard USB keyboard and mouse peripherals but does not support high-speed USB storage or video devices.

Highlights

  • Control a PC from up to 60 m away using a single Cat 5e/6 cable
  • Uncompressed 1080p video at 60 Hz for sharp remote display
  • HDMI audio extraction via 3.5 mm stereo output on both transmitter and receiver
  • USB mouse and keyboard extension over the same Ethernet link
  • IR control included for managing the remote source

Specifications

TypeHDMI

Questions about this item

How far can I place the monitor and USB peripherals from the computer using this extender?

The extender carries uncompressed 1080p HDMI video and USB keyboard and mouse signals up to 60 metres over a single Cat 5e or Cat 6 cable.

Does the unit add noticeable heat or fan noise when it runs continuously?

The extender has no fan and draws little power, so it stays cool and silent during all-day operation.

What cables and connectors must I already have to link the transmitter and receiver?

You need one solid-core Cat 5e or Cat 6 patch cable with RJ45 plugs, an HDMI cable for the display and a 3.5 mm stereo cable if you want audio at the remote end.
