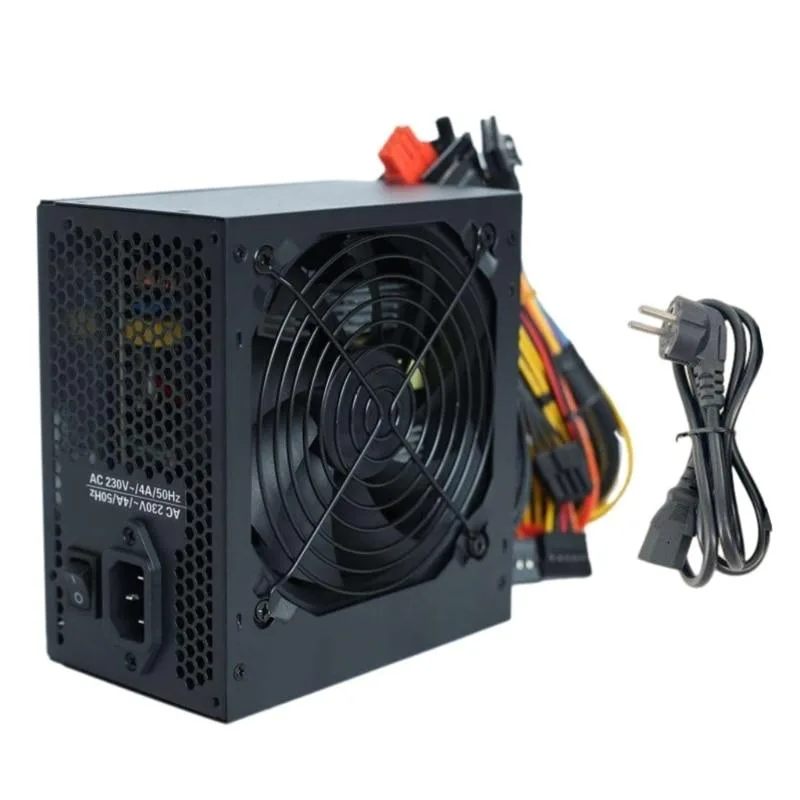

Rectangular metal PSU unit with EU plug, modular cables visible, 120mm fan grille, 15x14x8.5cm

YINGHUA

YINGHUA 600W modular server power supply ATX 12V EU plug

SKU CH-16FM-936Y7

Modular 600W ATX 12V unit with 120mm hydraulic fan, full cable management and multi-rail protection for desktop and server builds

  • Modular cabling cuts clutter inside the case
  • 600 W rated output powers high-end desktop builds
  • 120 mm hydraulic-bearing fan moves air quietly
  • Full protection suite guards against voltage and short-circuit faults
  • ATX12V design with EU plug fits standard desktop chassis

Modular 600W ATX server supply

This full-modular 600W unit follows the ATX12V specification and ships with an EU plug. It targets desktop builders who need a single 24-pin motherboard connector, one 4+4-pin CPU plug, two 6+2-pin GPU plugs, five SATA connectors and three large IDE fan headers for high-end configurations.

Sustained-load behaviour

Rated at 600W continuous output, the supply delivers 12V at 38.5A for 462W, 5V at 12A for 60W and 3.3V at 15A for 50W, with -12V at 1A and +5VSB at 3A. Over-voltage, over-current, over-load and short-circuit protections engage automatically when limits are exceeded during extended sessions.

Thermals noise and power

A 12cm hydraulic-bearing fan moves high airflow while running quietly inside the metal chassis measuring approximately 15x14x8.5cm. The unit accepts AC 180-264V at 5A across 50-63Hz, making it suitable for desktop computers, all-in-one systems, network terminals, industrial quasi-systems and POS machines.

Highlights

  • Modular cabling cuts clutter inside the case
  • 600 W rated output powers high-end desktop builds
  • 120 mm hydraulic-bearing fan moves air quietly
  • Full protection suite guards against voltage and short-circuit faults
  • ATX12V design with EU plug fits standard desktop chassis

Specifications

No published specifications for this item yet.

Questions about this item

How loud is the 120mm hydraulic fan under continuous load?

The 120mm hydraulic bearing fan is designed for large airflow and silent operation, keeping noise low during all-day use.

Which cables must I already have to connect the 24-pin motherboard and dual 4+4-pin CPU connectors?

All required cables are included with the full-modular unit; no extra cables are needed for the 24-pin motherboard or dual 4+4-pin CPU connectors.

Will the 600W unit with 462W on the 12V rail power an older GPU that only needs 6-pin PCIe?

Two 6+2-pin PCIe connectors are provided, so a legacy 6-pin graphics card can be connected directly without adapters.
