Black rectangular HDMI matrix switch with front ports and IR sensor

YINGHUA

YINGHUA 4x4 HDMI Matrix Switch 4K 60Hz HDR EDID 16 modes US Plug

SKU CH-DYC3-ANKA0

Routes four HDMI sources to four displays at 4K 60 Hz with HDR, HDCP 2.2 and 16 EDID modes

  • TypeHDMI
  • Route any of four sources to four displays independently
  • 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • HDCP 2.2 and deep colour up to 12-bit supported
  • 16 selectable EDID modes for optimal handshake
  • IR remote included for convenient switching

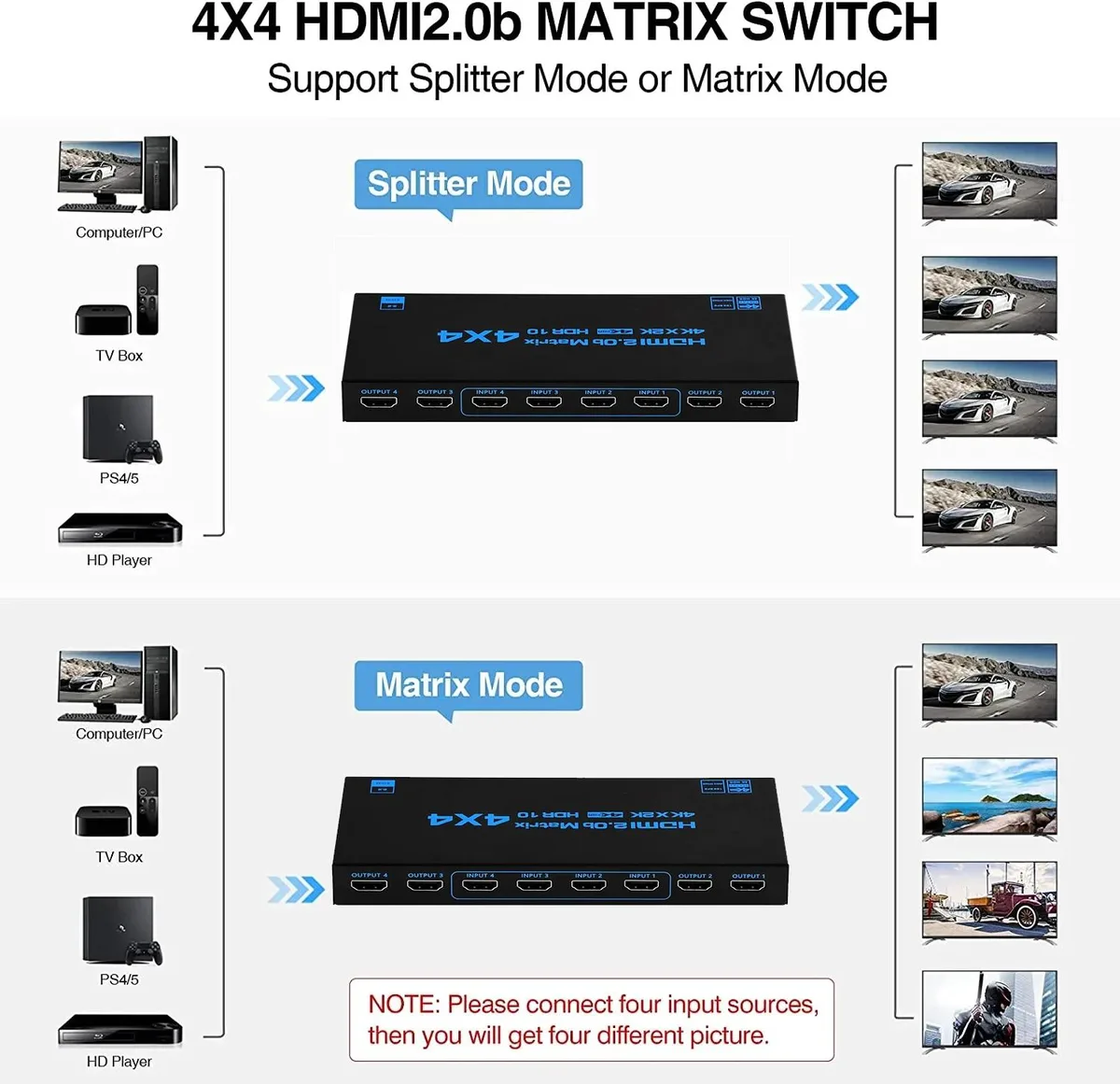

4x4 HDMI Matrix for Multi-Display Setups

This 4x4 HDMI matrix switch connects four signal sources to four displays. Each output can show the same or a different picture independently. It suits installers and enthusiasts managing multiple consoles, media players or PCs across several screens.

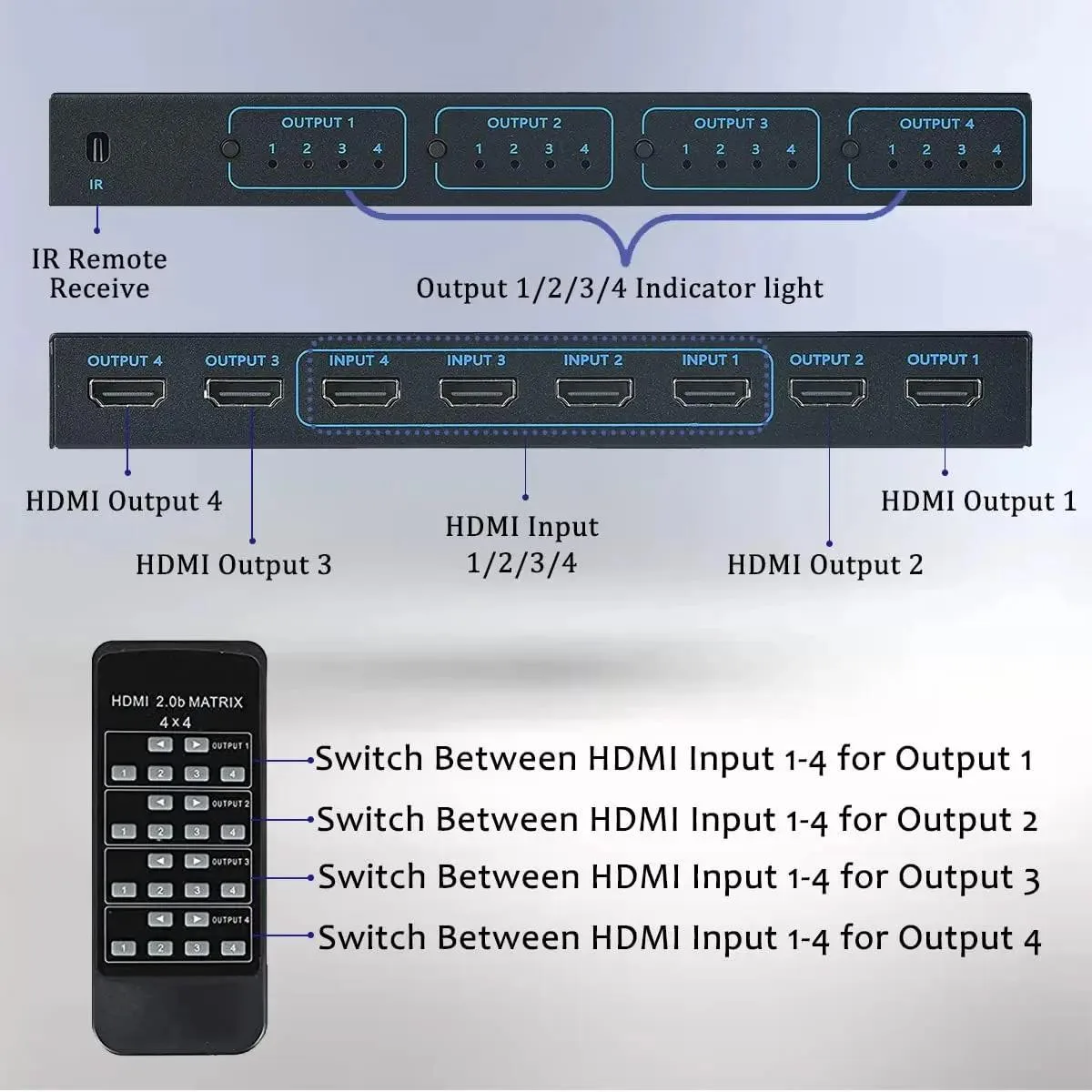

Metal Chassis with IR Remote and EDID Dials

The unit uses a metal enclosure and includes an IR remote for input selection per output. Sixteen EDID modes let you match source timing to each display for stable handshakes. A US-plug power supply is included for immediate deployment.

HDMI 2.0 Bandwidth Limits at 18 Gbps

The HDMI 2.0 interface caps video at 4K 60 Hz with 8/10/12-bit colour and YUV 4:4:4 sampling. HDCP 2.2 protects premium content but older sources may fall back to lower resolutions. Bandwidth above 18 Gbps or refresh rates beyond 60 Hz are not supported.

Highlights

  • Route any of four sources to four displays independently
  • 4K at 60 Hz with HDR and 18 Gbps bandwidth
  • HDCP 2.2 and deep colour up to 12-bit supported
  • 16 selectable EDID modes for optimal handshake
  • IR remote included for convenient switching

Specifications

TypeHDMI

Questions about this item

What does the HDMI 2.0b interface cap at for 4K resolution and bandwidth?

The HDMI 2.0b interface supports 4K at 60Hz with an 18Gbps data rate and up to 600MHz bandwidth.

How many HDMI ports does the 4x4 matrix provide for source and display connections?

The unit provides four HDMI inputs and four HDMI outputs for connecting sources and displays.

How do I apply one of the 16 EDID modes so the setting takes effect?

Select the desired EDID mode using the IR remote, then restart the matrix switch to apply the change.
