Black rectangular box with four HDMI inputs and four outputs, front panel buttons, IR sensor, and EU power plug

YINGHUA

YINGHUA 4x4 HDMI Matrix KVM Switch 4K 60Hz

SKU CH-NKAZ-VQ185

Routes four HDMI sources to four displays at 4K 60 Hz with RS-232 and IR control

  • TypeHDMI
  • Route any of 4 sources to any of 4 displays
  • 4K at 60 Hz with HDMI 2.0 and HDCP 2.2
  • Control via front buttons, IR remote, RS-232 or Ethernet
  • Intelligent EDID management for broad device compatibility
  • Supports 3D, 3 Gbps bandwidth and 12-bit Deep Color

4×4 HDMI Matrix KVM Switch

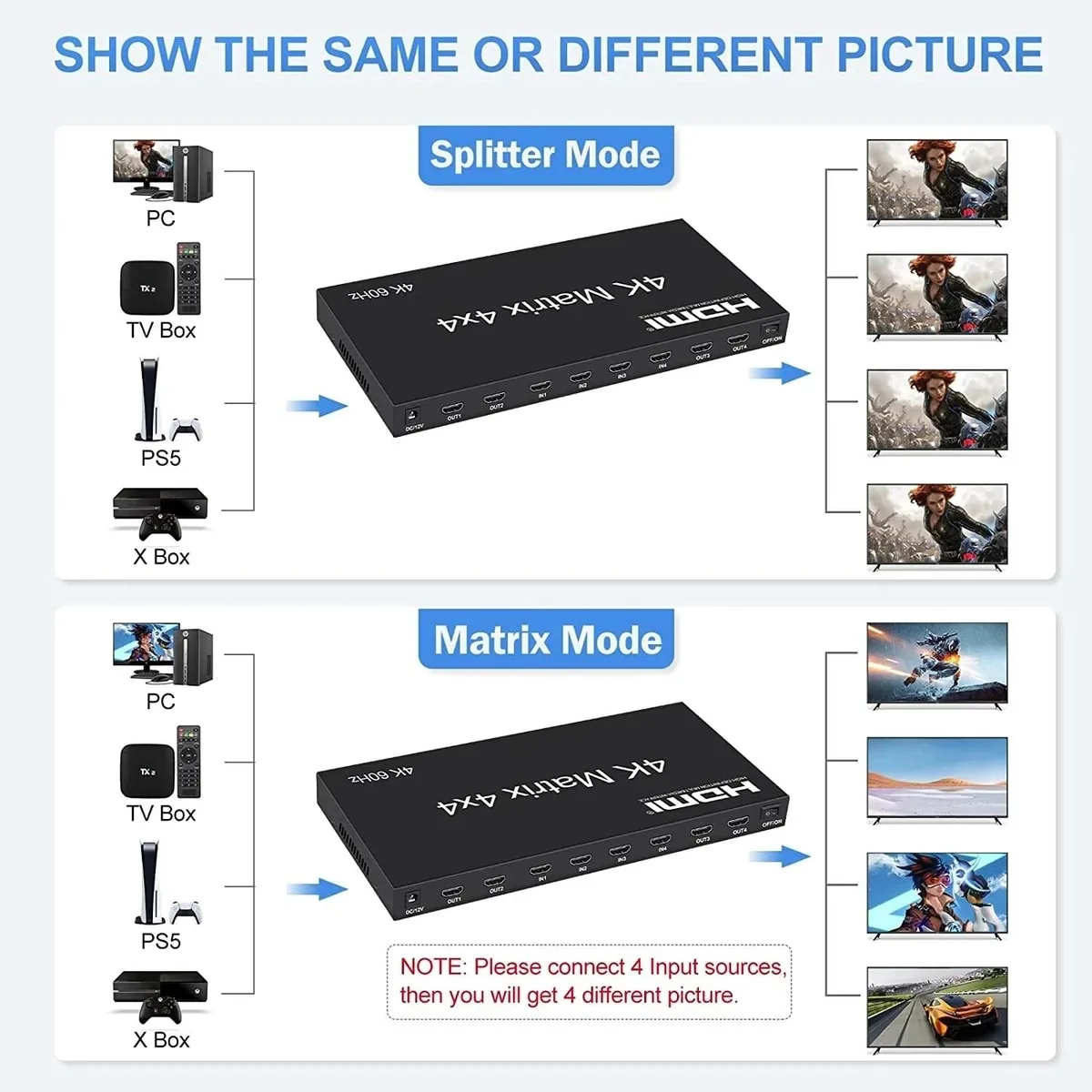

This 4×4 HDMI matrix KVM switch routes signals from four source devices to four displays simultaneously. Each display can show the same image or a different one. It is suited for control rooms, multi-monitor workstations and presentation setups that need flexible source-to-screen assignment.

4K 60 Hz capacity with HDCP 2.2

The switch handles resolutions up to 4K at 60 Hz with RGB/YUV 4:4:4 colour sampling and 12-bit Deep Color. HDMI 2.0 and HDCP 2.2 compliance protects premium content. Bandwidth limits mean higher refresh rates or uncompressed 8K signals cannot be passed.

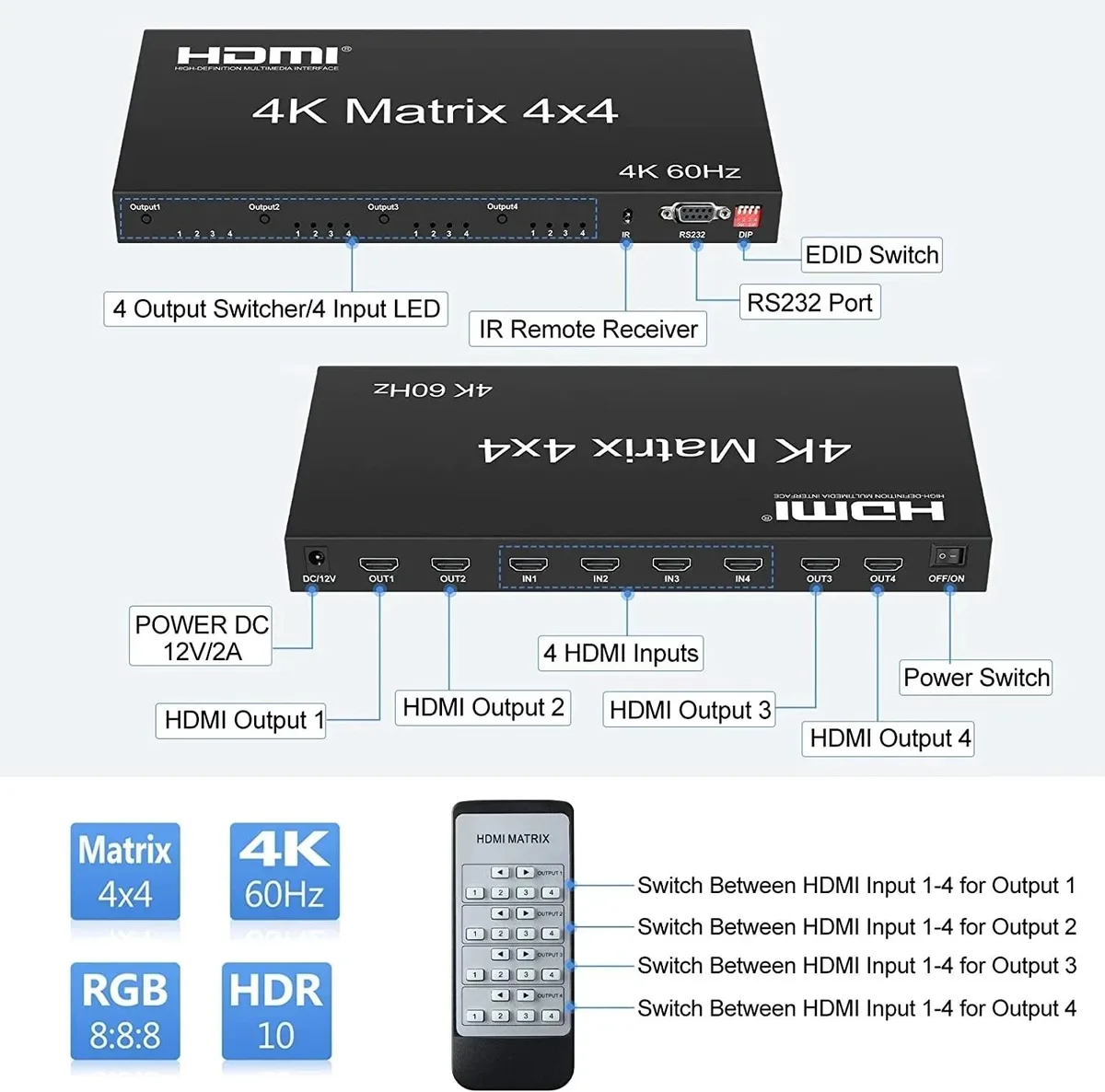

Front-panel, IR, RS-232 and Ethernet control

Bundled control options include front-panel buttons, an IR remote, RS-232 serial and Ethernet interfaces. Intelligent EDID management improves compatibility with most HDMI sources and sinks. No additional software or mobile app is supplied for configuration.

Highlights

  • Route any of 4 sources to any of 4 displays
  • 4K at 60 Hz with HDMI 2.0 and HDCP 2.2
  • Control via front buttons, IR remote, RS-232 or Ethernet
  • Intelligent EDID management for broad device compatibility
  • Supports 3D, 3 Gbps bandwidth and 12-bit Deep Color

Specifications

TypeHDMI

Questions about this item

Will the 4K 60Hz matrix pass HDR and 12-bit Deep Color from my older Blu-ray player to a new TV?

Yes — the switch supports HDMI 2.0 with 12-bit Deep Color and 3D, so legacy sources keep their full colour depth at 4K 60Hz.

How do I confirm the 4x4 matrix is routing each of the four inputs to the correct display after installation?

Use the front-panel buttons, IR remote, RS-232 or Ethernet interface to select an input for each output; the on-screen image on every display shows the active source instantly.

Which cables and power adapter are included with the EU-plug 4x4 HDMI matrix?

The unit ships with an EU power supply; HDMI cables for the four inputs and four outputs are not included and must be purchased separately.
