YINGHUA 4K 60Hz 4x4 HDMI Matrix KVM Switch (US Plug)
Routes four HDMI sources to four displays at 4K 60Hz with RS-232 and IR control
- TypeHDMI
- Routes four sources to four displays independently
- 4K at 60 Hz with HDMI 2.0 and HDCP 2.2 support

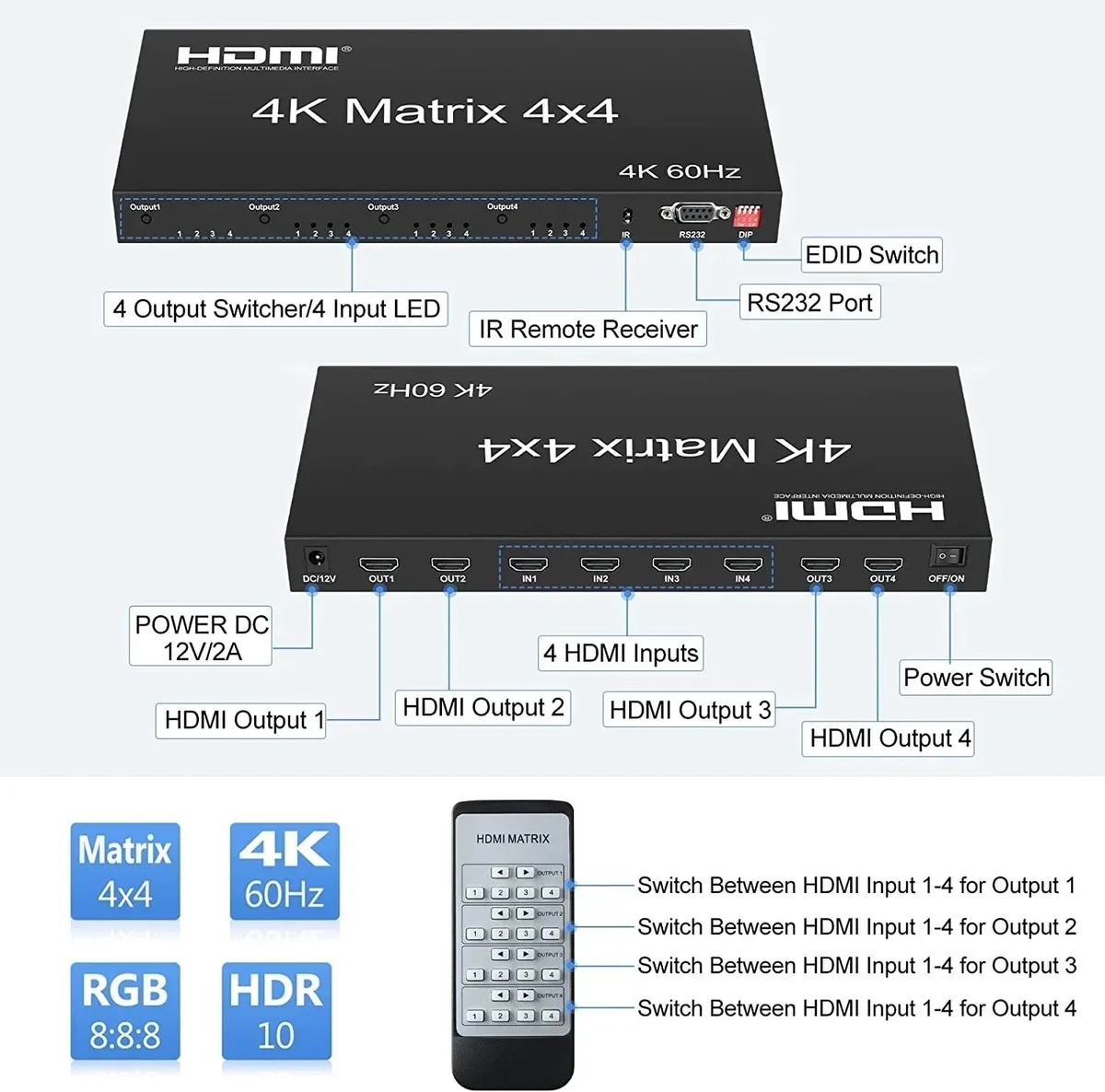

- Control via front panel, IR remote, RS-232 or Ethernet
- Intelligent EDID management ensures wide device compatibility
- Supports 3D, 12-bit Deep Color and lossless audio
4K 60Hz 4x4 HDMI Matrix KVM

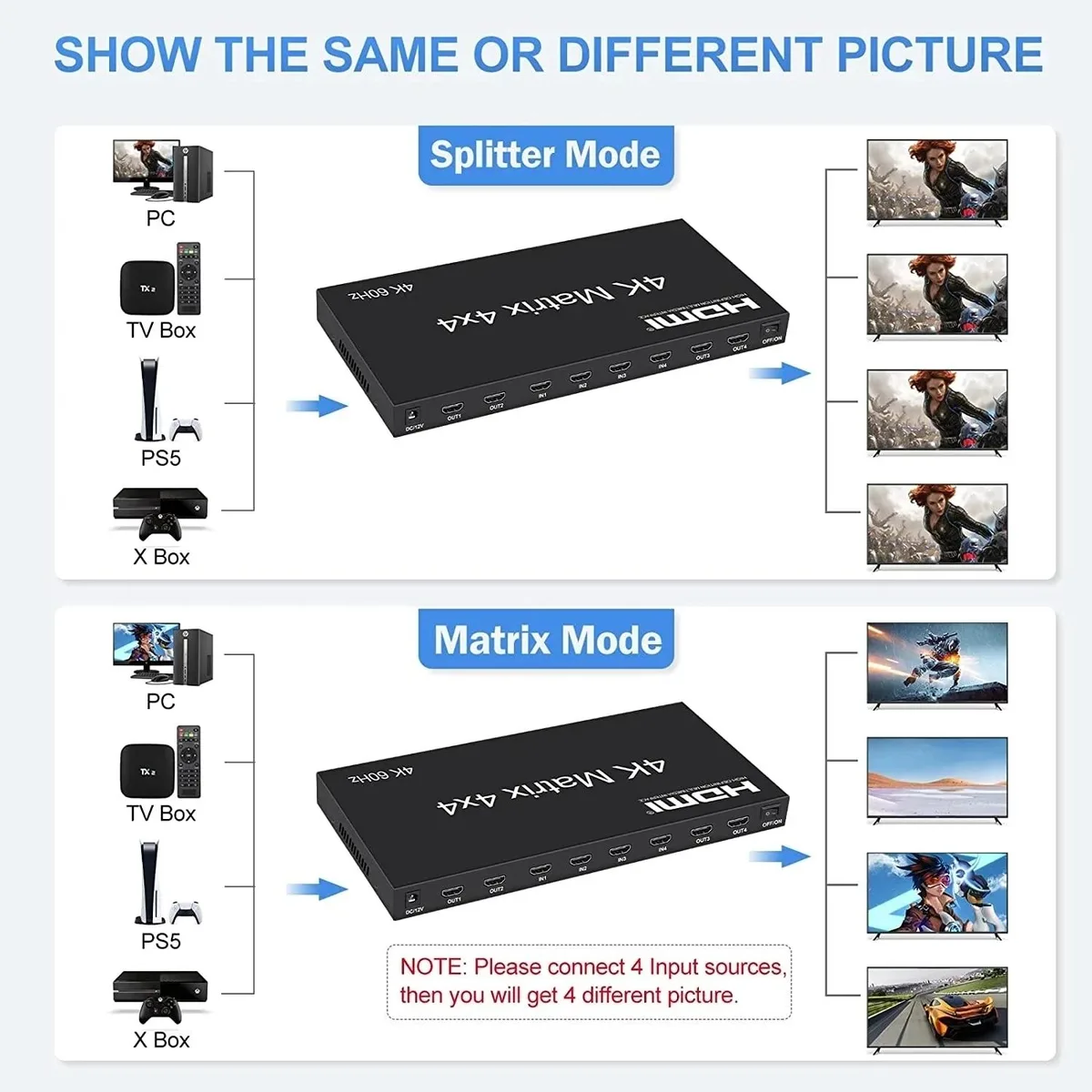

This 4K 60Hz 4x4 HDMI matrix KVM routes signals from four source devices to four displays simultaneously. Each output can show the same image or a different source. It supports HDMI 2.0 and HDCP 2.2 for protected 4K content at 60Hz. Control is available via front-panel buttons, IR remote, RS-232 or Ethernet.
Upgrade from basic switchers
A simple HDMI switcher only selects one source for one display. This matrix replaces that limitation by allowing any input to reach any output independently. The jump is worth it when you need four sources visible across four screens at once, such as in a control room, classroom or multi-monitor workstation.
Sustained operation with EDID management
Intelligent EDID management maintains stable handshakes between sources and sinks during extended sessions. The 3Gbps bandwidth and 12-bit Deep Color support continuous high-fidelity video without signal degradation. RS-232 and Ethernet control enable reliable remote monitoring and switching over long periods.
Highlights
- Routes four sources to four displays independently
- 4K at 60 Hz with HDMI 2.0 and HDCP 2.2 support
- Control via front panel, IR remote, RS-232 or Ethernet
- Intelligent EDID management ensures wide device compatibility
- Supports 3D, 12-bit Deep Color and lossless audio
Specifications
| Type | HDMI |
|---|
Questions about this item
How many HDMI ports does the 4x4 matrix provide for sources and displays?
The unit has four HDMI inputs and four HDMI outputs so each of the four sources can be routed to any of the four screens.
Which control methods let me switch inputs without reaching the front panel?
You can change routing with the included IR remote, over RS-232, or through the Ethernet port.
What HDMI version and HDCP level must my sources and displays support for 4K 60 Hz?
Both source devices and displays need HDMI 2.0 and HDCP 2.2 to pass 4K at 60 Hz with 4:4:4 colour.
