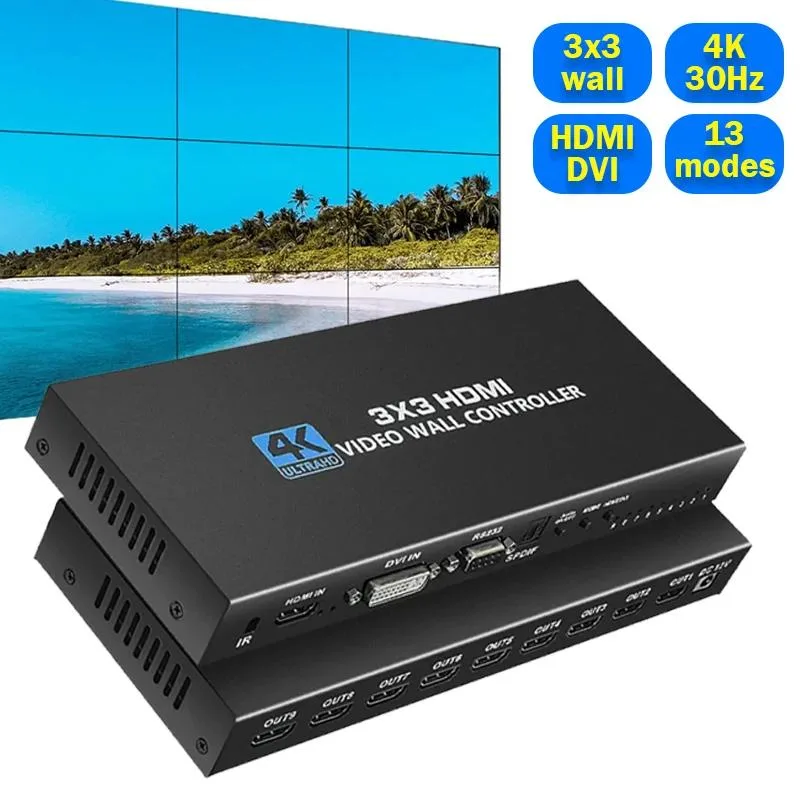

YINGHUA 3x3 Video Wall Controller 4K HDMI DVI 9 Output RS232 UK Plug KVM Switch
Splits one 4K HDMI or DVI source across nine 1080p displays with RS232 and remote control
- TypeHDMI
- Splits one 4K source across nine 1080p displays
- Handles HDMI 1.4 and DVI inputs at up to 4K 30 Hz
- Delivers 1080p 60 Hz output on each of nine HDMI ports
- RS-232 and IR remote give full control without front-panel buttons
- Optical S/PDIF extracts surround audio from the HDMI stream
3x3 Video Wall Controller

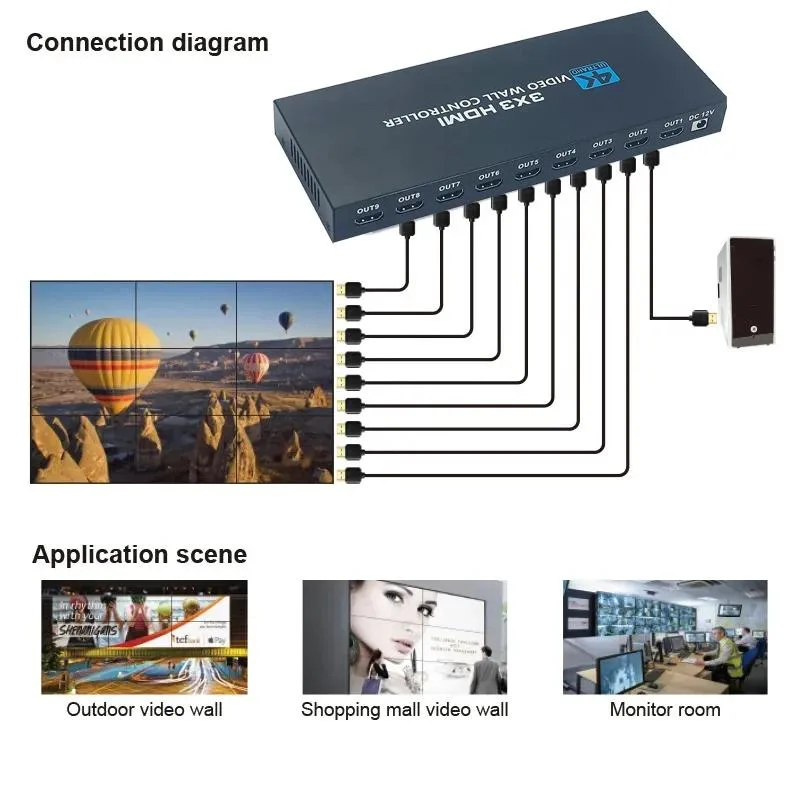

The YINGHUA 3x3 video wall controller accepts one HDMI or DVI source and splits it across nine HDMI outputs for multi-screen installations. It is designed for digital signage, control rooms and presentation spaces that need a single large image spread over multiple displays.
Input and cable requirements
The unit supports HDMI 1.4 with HDCP 1.4 and handles input resolutions up to 3840x2160 at 24 or 30 Hz and 1920x1080 at up to 60 Hz. All nine outputs deliver 1920x1080 at 60 Hz, so source content must match these timings. Use fully wired, shielded HDMI cables with all 19 pins connected to avoid sync problems.
Thermals noise and power
The controller ships with a DC 12 V 2 A power adapter and has no internal fan, so it runs silently in normal operation. Power draw stays within the supplied adapter rating, and the metal chassis passively dissipates heat during continuous use. RS232 and infrared remote control allow configuration without physical access to the unit.
Highlights
- Splits one 4K source across nine 1080p displays
- Handles HDMI 1.4 and DVI inputs at up to 4K 30 Hz
- Delivers 1080p 60 Hz output on each of nine HDMI ports
- RS-232 and IR remote give full control without front-panel buttons
- Optical S/PDIF extracts surround audio from the HDMI stream
Specifications
| Type | HDMI |
|---|
Questions about this item
Does the box include everything needed to run a 3×3 wall, or must I buy the nine HDMI cables separately?
The package contains the controller, a DC 12 V 2 A power adapter, a remote control (battery not supplied) and a user manual; the nine HDMI cables to connect the displays are not included.
The title lists several splicing modes — 3×3, 2×3, 2×4 and 4×2 — so which one should I select for nine screens?
Choose the 3×3 mode; it splits the single HDMI or DVI input into nine 1080p 60 Hz outputs, matching the nine-display layout.
The headline says 4K, yet the note states 1080p 60 Hz out — what resolution will I actually see on each monitor?
Each of the nine HDMI outputs delivers 1920×1080 at 60 Hz; the 4K 30 Hz capability applies only to the input signal.
