Black rectangular box with six HDMI ports and EU power plug

YINGHUA

YINGHUA 2x3 Video Wall Controller 4K 6 Display KVM Switch

SKU CH-HYTM-FJY0E

Splits a single 4K HDMI source across six 1080p displays in a 2×3 video wall with plug-and-play hardware and 3.5 mm audio extraction

  • TypeHDMI
  • Drives six displays from one 4K source at 30 Hz
  • Outputs full HD 1920×1080 at 60 Hz per screen
  • Extracts audio via optical and 3.5 mm ports
  • Cascades multiple units for larger video walls
  • Pure hardware plug-and-play with no software required

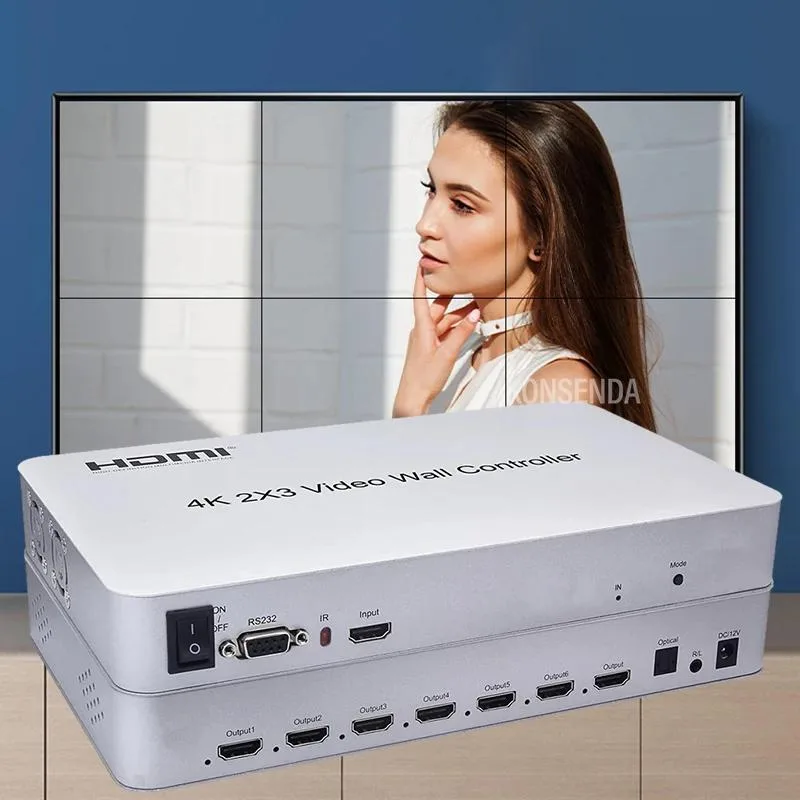

YINGHUA 2x3 Video Wall Controller

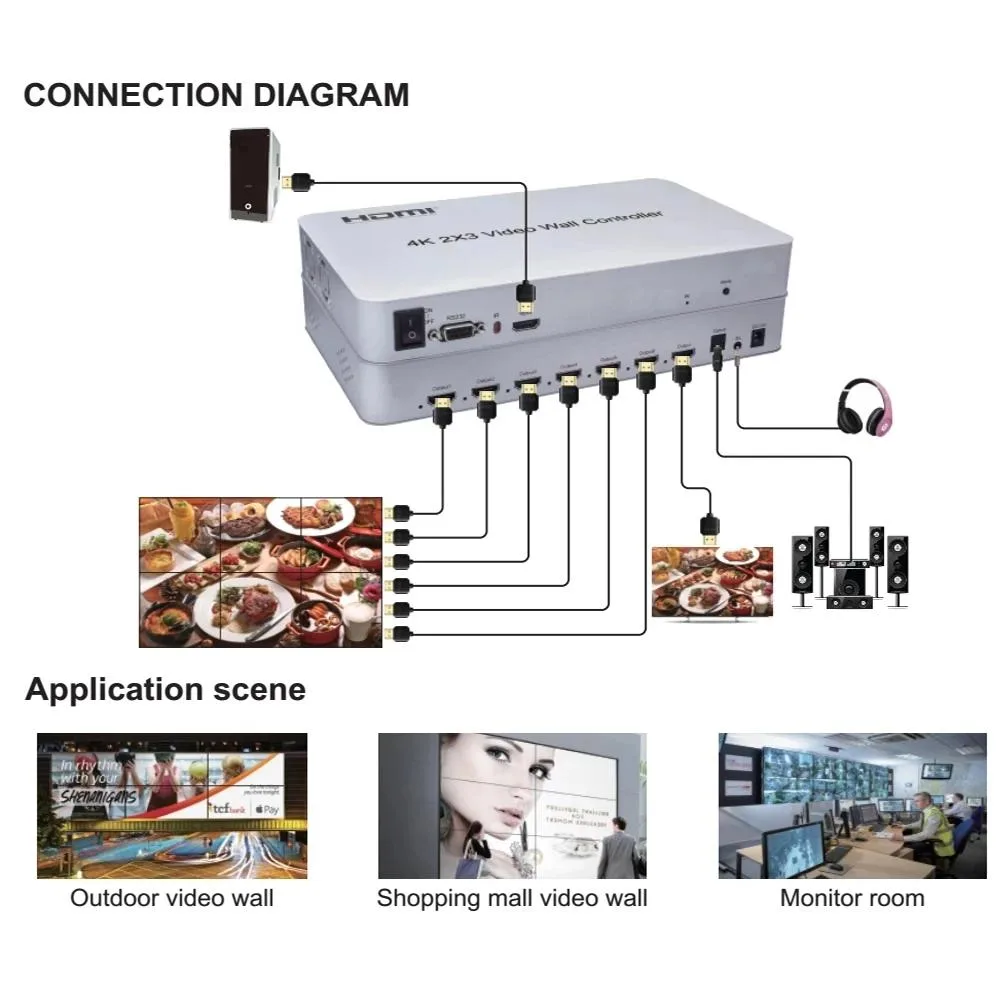

This YINGHUA unit is a 2x3 video wall controller that accepts one HDMI input and distributes it across six HDMI outputs. It stitches a single 4K source into a 2-by-3 grid of displays for digital signage, hospitality screens or classroom installations. Pure hardware architecture means no software configuration is required.

Suits installers building a six-screen video wall

The controller fits projects that need a fixed 2x3 layout with plug-and-play operation and audio extraction via optical or 3.5 mm ports. It does not suit users who require more than six outputs, higher than 1080p per screen, or 4K at 60 Hz on the input.

Maximum input resolution 3840x2160 at 30 Hz

The HDMI input supports up to 3840x2160 at 30 Hz, while each of the six outputs delivers up to 1920x1080 at 60 Hz. This resolution ceiling determines whether your source content and display array are compatible with the controller.

Highlights

  • Drives six displays from one 4K source at 30 Hz
  • Outputs full HD 1920×1080 at 60 Hz per screen
  • Extracts audio via optical and 3.5 mm ports
  • Cascades multiple units for larger video walls
  • Pure hardware plug-and-play with no software required

Specifications

TypeHDMI

Questions about this item

Does the 2x3 video wall controller run hot or draw much power when driving six 1080p displays all day?

The unit uses pure hardware processing with no software overhead, so it stays cool and power draw remains low during continuous operation across all six HDMI outputs.

What source and cables must I already have to feed the 3840x2160/30Hz HDMI input?

You need a device that can output 3840x2160 at 30Hz over HDMI and a certified cable — up to 8 metres for 4K/30Hz or 3 metres for 4K/60Hz.

Will my older 1080p monitors work with the 1920x1080/60Hz HDMI outputs?

Yes, each of the six HDMI outputs delivers 1920x1080 at 60Hz, matching standard Full HD displays without scaling issues.
