YINGHUA

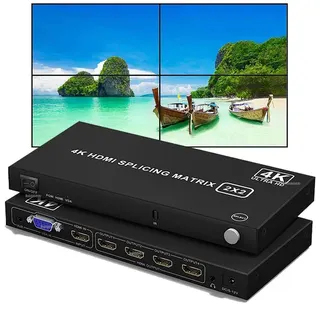

YINGHUA 2x2 4K HDMI VGA Video Wall KVM Switch with UK Plug
Splits one 4K HDMI or VGA source across four HDMI displays in eight layout modes including 2×2 with 180° row rotation, supports 10 m cables and 3.5 mm audio output
- TypeHDMI
- Splits one 4K source across four displays
- Handles HDMI and VGA inputs up to 4K30
- Eight splicing layouts including 2×2 and 1×4
- 180° rotation on top-row screens in 2×2 mode
- 10 m HDMI cable reach with 3.5 mm audio out
2×2 Video Wall Controller

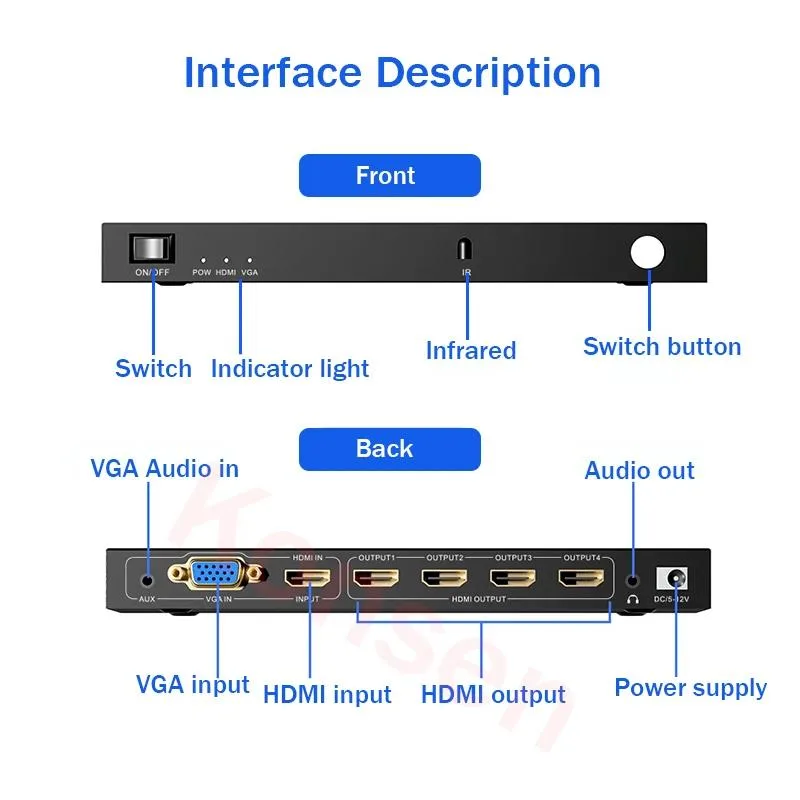

The YINGHUA 2x2 unit splits a single HDMI or VGA source across four HDMI displays to build a 4K video wall. It accepts input resolutions up to 4K at 30 Hz and outputs at up to 1080p. Eight splicing modes include 1×3, 3×1, 1×4 and 4×1 layouts. A 3.5 mm audio output feeds external speakers.
Installations needing multi-screen layouts
This controller suits control rooms, digital-signage walls and presentation spaces that stitch several screens into one large canvas. It is not for users who only need to duplicate one signal on two monitors. Buyers requiring HDCP 2.2 handshake management or input resolutions above 4K30 should look at a different processor.

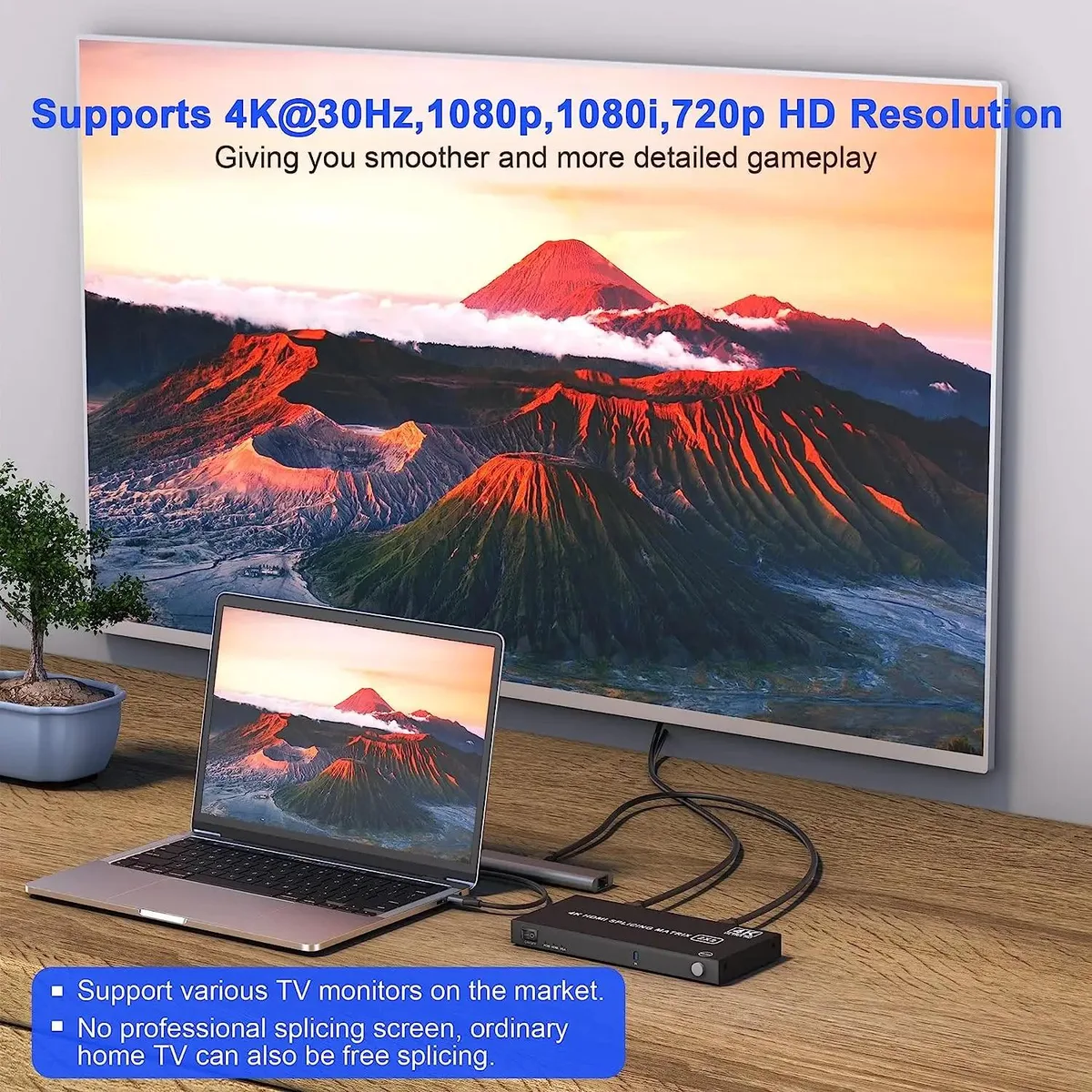

4K30 input with 1080p output
The decisive specification is the maximum input resolution of 4K at 30 Hz while each of the four HDMI outputs is limited to 1080p. Source content above 30 Hz at 4K will not pass through. HDMI and VGA cables up to 10 m AWG24 are supported. The included UK-plug power adapter runs from 100–240 V AC at 50 or 60 Hz.
Highlights
- Splits one 4K source across four displays
- Handles HDMI and VGA inputs up to 4K30
- Eight splicing layouts including 2×2 and 1×4
- 180° rotation on top-row screens in 2×2 mode
- 10 m HDMI cable reach with 3.5 mm audio out
Specifications
| Type | HDMI |
|---|
Questions about this item
What displays and cables are needed to run the 2x2 video wall at 1080P output?
Four HDMI displays and four AWG24 HDMI cables up to 10 m each, plus one HDMI or VGA source cable up to 10 m.
Can a 1080P60 source be shown across the wall while keeping two screens in portrait orientation?
Yes, the 2x2 mode supports 180° rotation for the top two displays and accepts 1080P input at 50 or 60 Hz.
How do I confirm the unit is splicing correctly after power-up?
The four screens should show a single continuous image with the top pair rotated 180° when 2x2 automatic splicing is selected via remote.
