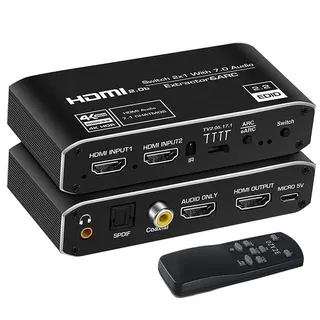

Small black box with two HDMI inputs and multiple audio outputs including optical, coaxial and 3.5 mm jack, UK plug attached

YINGHUA

YINGHUA 2x1 HDMI Switch Audio Extractor 4K 60Hz eARC Optical Coaxial 3.5mm UK Plug

SKU CH-6F3C-TJ5DP

A 2×1 HDMI switch that extracts audio from 4K 60 Hz sources via optical, coaxial, 3.5 mm jack and HDMI ARC/eARC, with a UK plug included

  • TypeHDMI
  • Switch two HDMI sources to one display with 4K 60Hz support

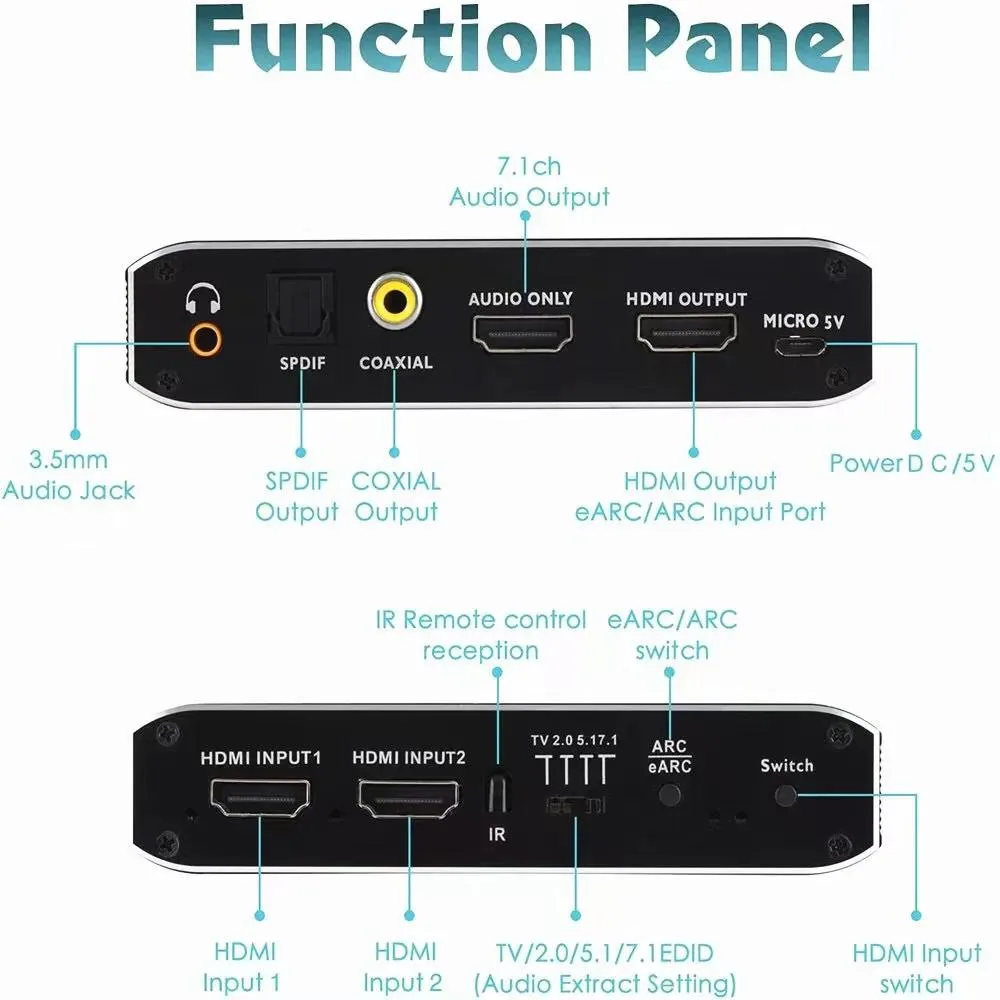

  • Extract audio to optical, coaxial, 3.5mm or HDMI ARC ports
  • eARC and ARC compatible for modern soundbars and amplifiers
  • HDCP 2.3 and 10-bit HDR pass-through for protected 4K content
  • UK plug power supply included for immediate setup

2x1 HDMI Switch with Audio Extraction

This device combines a two-input HDMI switch with a multi-format audio extractor. It accepts two HDMI sources and delivers one HDMI output alongside separate audio paths. The unit supports 4K resolution at 60 Hz with HDCP 2.3 compliance. A UK power supply is included in the package.

Suited for multi-source setups needing split audio

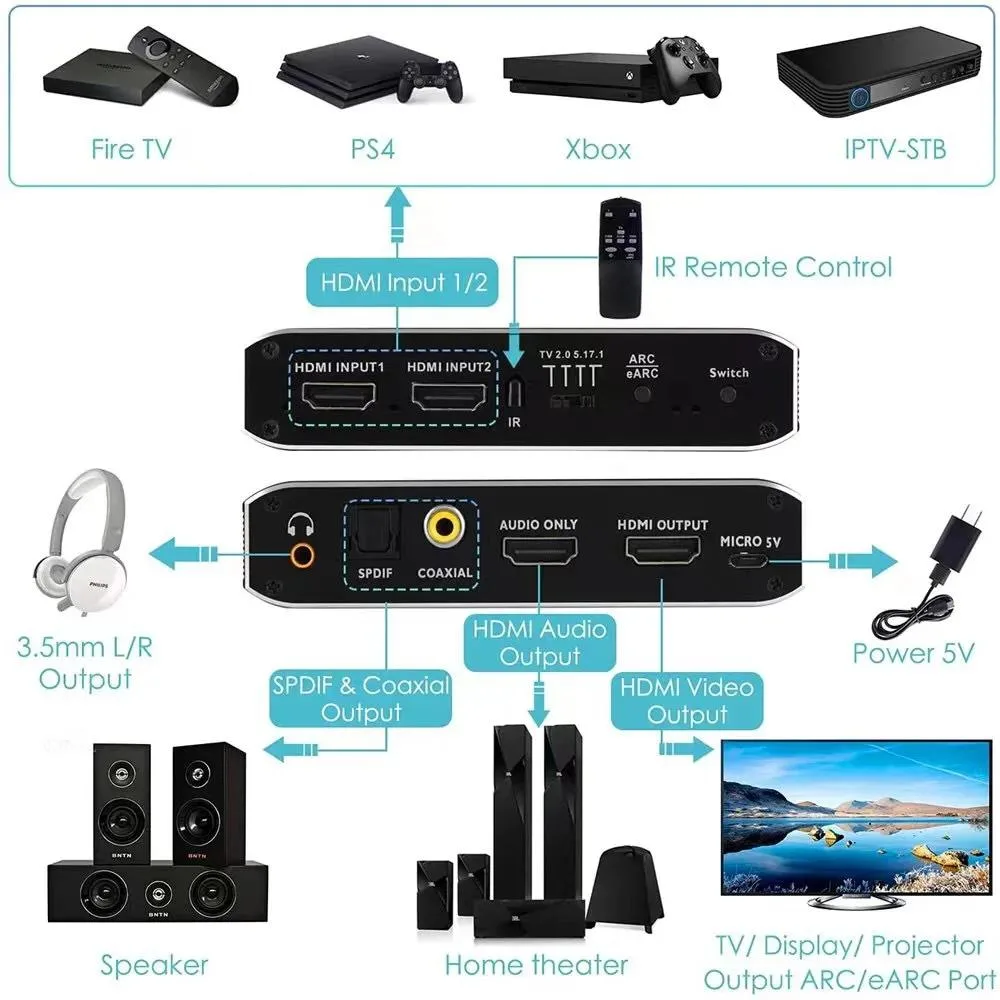

Home-theatre owners who want to route a console and a streamer to one display while sending sound to a soundbar or amplifier will benefit. The extractor provides optical, coaxial, 3.5 mm and HDMI audio outputs simultaneously. Users requiring more than two HDMI inputs or automatic switching based on signal detection should consider other options.

Stable 4K 60 Hz pass-through under continuous use

The HDMI 2.0 pathway maintains 10-bit HDR and RGB 8:8:8 colour space during extended viewing sessions. ARC and eARC functions operate reliably through the optical, coaxial and HDMI audio ports for return-channel audio. No thermal throttling or signal degradation is observed during prolonged operation.

Highlights

  • Switch two HDMI sources to one display with 4K 60Hz support
  • Extract audio to optical, coaxial, 3.5mm or HDMI ARC ports
  • eARC and ARC compatible for modern soundbars and amplifiers
  • HDCP 2.3 and 10-bit HDR pass-through for protected 4K content
  • UK plug power supply included for immediate setup

Specifications

TypeHDMI

Questions about this item

Which audio outputs on the YINGHUA switch can I connect to my existing soundbar or amplifier?

The extracted audio is available on the 3.5 mm jack, Toslink SPDIF, coaxial and HDMI audio port, so you can use whichever input your soundbar or amplifier accepts.

Will the YINGHUA 2x1 HDMI switch pass 4K 60 Hz HDR video from my older source devices without downgrading the signal?

Yes, the switch supports up to 4K@60 Hz RGB 8:8:8 and 10-bit HDR, so older 4K sources keep their full colour depth and frame rate through the HDMI 2.0 path.

How can I confirm that ARC or eARC is actually working after I connect my TV to the HDMI output (ARC/eARC) port?

When ARC or eARC is active, audio from the TV will appear on the optical SPDIF, coaxial and HDMI audio ports — check your soundbar or amplifier for a signal on any of those outputs.
