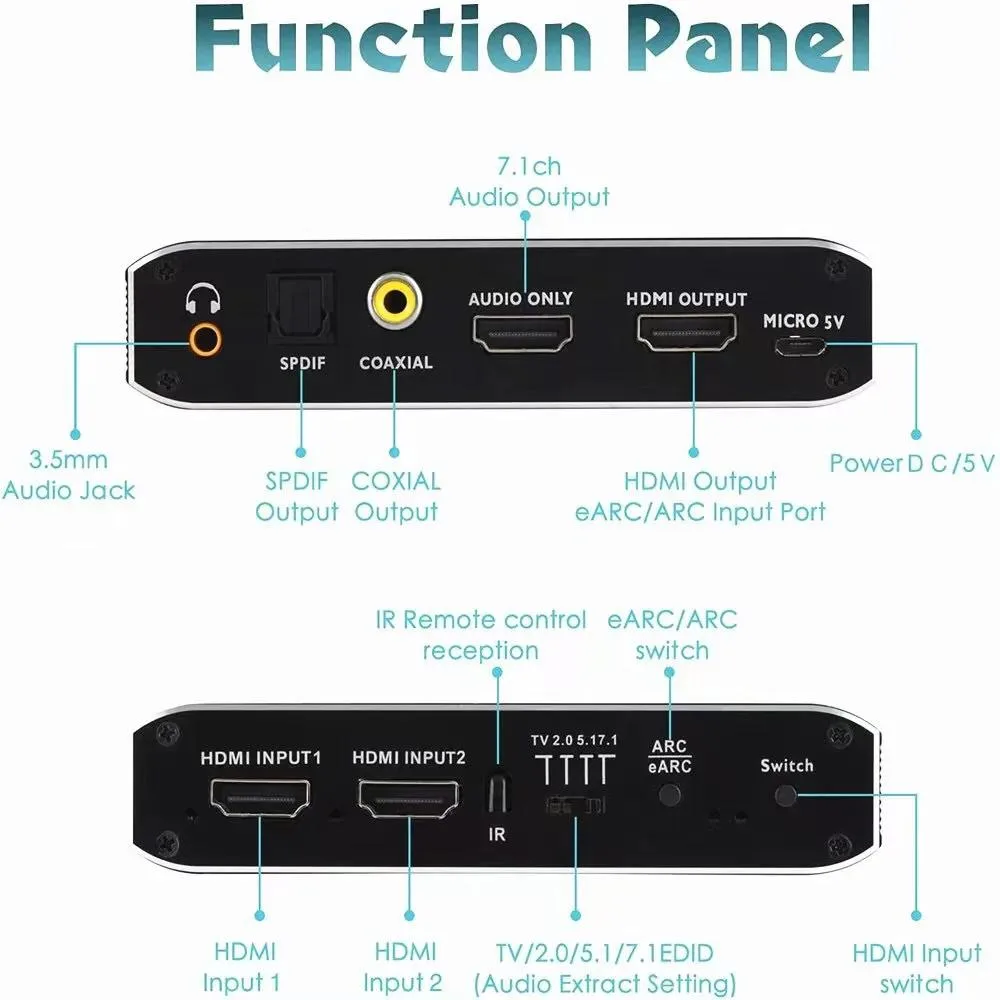

Compact black box with two HDMI inputs, one HDMI output, optical, coaxial and 3.5 mm audio ports, US power plug attached

YINGHUA

YINGHUA 2x1 HDMI Switch Audio Extractor 4K 60Hz ARC eARC US Plug

SKU CH-MEVY-RZGG4

A 2-in-1-out HDMI switch with audio extraction supporting 4K 60 Hz, ARC and eARC, outputting to optical, coaxial and 3.5 mm jack

  • TypeHDMI
  • Switch two HDMI sources to one display
  • Extract audio to optical, coaxial, 3.5 mm or HDMI ports
  • Supports ARC and eARC for TV-to-soundbar audio
  • Passes 4K 60 Hz video with HDCP 2.3 compliance
  • HDMI 2.0 bandwidth handles 10-bit HDR colour

2x1 HDMI Switch Audio Extractor

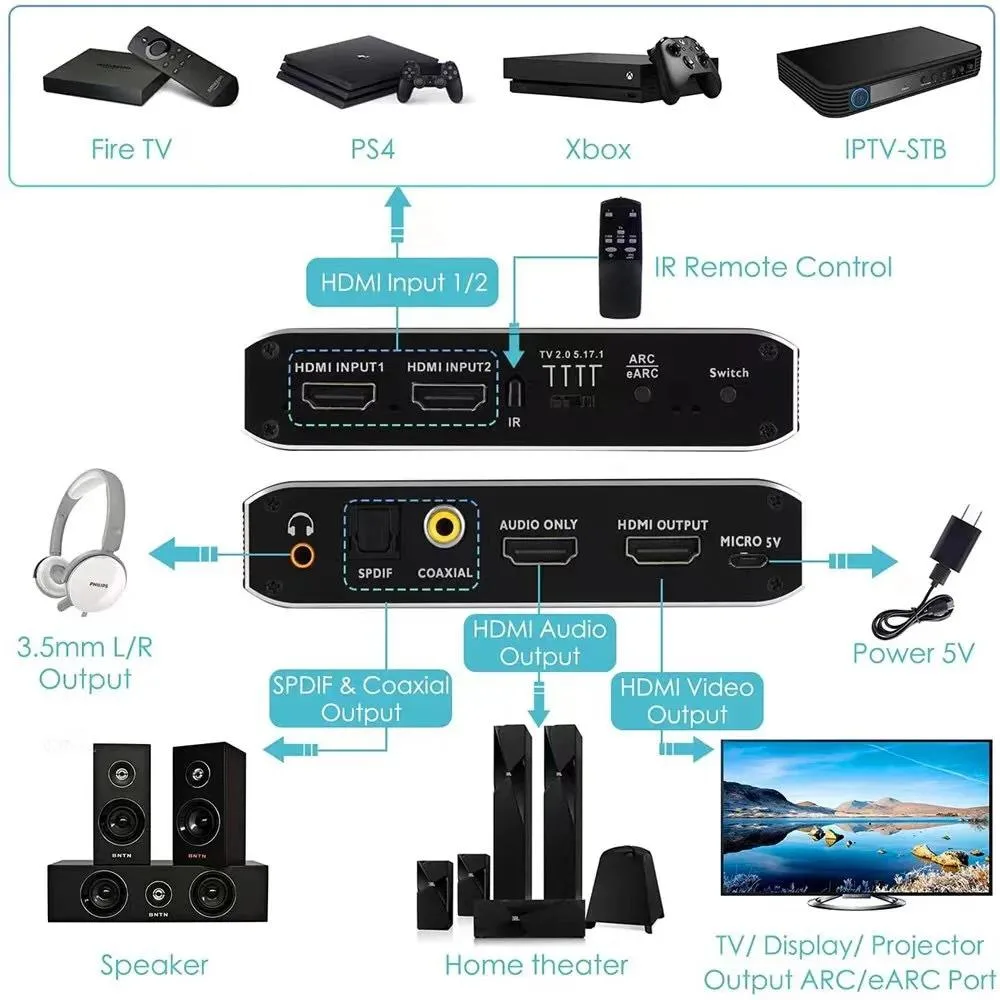

This device combines a two-input HDMI switch with an audio extractor for home-theatre and streaming setups. It accepts two 4K sources and routes one to a display while simultaneously sending sound to an external audio system. The unit is suited for users who need to alternate between consoles, media players or PCs without re-cabling.

Sustained 4K 60Hz signal handling

The switch maintains 4K resolution at 60 Hz with RGB 8:8:8 colour space and 10-bit HDR during extended viewing sessions. HDCP 2.3 compliance ensures protected content plays continuously without handshake drops. ARC and eARC return channels stay active over long periods, letting a soundbar or amplifier receive audio extracted from the TV without interruption.

US plug power and multi-format audio outputs

A US-style power adapter is included for reliable operation. Extracted audio is available simultaneously on 3.5 mm jack, Toslink optical, coaxial and HDMI audio ports, giving flexibility for legacy receivers or modern soundbars. The compact enclosure fits on a shelf or behind a display, and the front-panel button provides tactile source selection without software.

Highlights

  • Switch two HDMI sources to one display
  • Extract audio to optical, coaxial, 3.5 mm or HDMI ports
  • Supports ARC and eARC for TV-to-soundbar audio
  • Passes 4K 60 Hz video with HDCP 2.3 compliance
  • HDMI 2.0 bandwidth handles 10-bit HDR colour

Specifications

TypeHDMI

Questions about this item

Does the YINGHUA 2x1 HDMI switch generate noticeable heat or fan noise when left running continuously?

The unit is a passive HDMI 2.0 switch with audio extraction; it has no fan and draws little power, so it runs silently and stays cool during all-day use.

Which cables and audio gear must I already own to use the extractor’s ARC and eARC functions?

You need an HDMI cable from your TV’s ARC or eARC port to the switch’s HDMI output, plus either an optical Toslink, coaxial or another HDMI cable to reach your soundbar or amplifier.

Will the switch pass 4K 60 Hz HDR from an older source to a newer display without downgrading the signal?

Yes, it supports 4K at 60 Hz RGB 8:8:8 and 10-bit HDR loop-out, so legacy 4K sources connect through to modern displays at full quality.
