Small black box with two HDMI inputs, one HDMI output, optical, coaxial and stereo audio ports, EU power plug

YINGHUA

YINGHUA 2x1 HDMI Switch Audio Extractor 4K 60Hz 5.1CH ARC EU

SKU CH-GGDY-QMRA4

Switches two HDMI 2.0 sources to one 4K 60 Hz display and extracts 5.1-channel audio via optical, coaxial or stereo outputs

  • TypeHDMI
  • Switch two 4K sources to one display
  • Extract 5.1 audio via optical or coaxial
  • 4K 60 Hz with 18.2 Gbps bandwidth
  • ARC pulls TV audio to soundbar
  • 36-bit deep colour at 4:4:4 chroma

Two-Source HDMI Switch

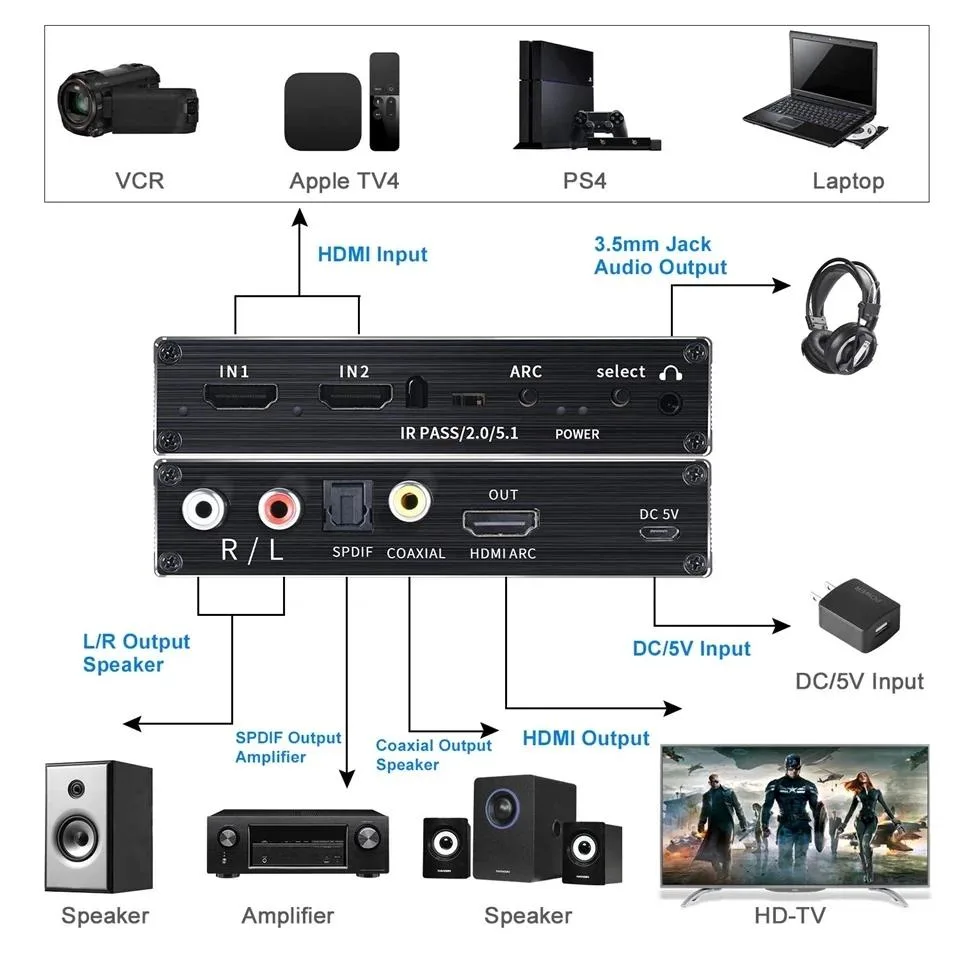

This 4K HDMI switch connects two HDMI 2.0 sources to a single display. Each input supports audio extraction via optical, coaxial and analogue outputs. The unit handles HDCP 2.2 and passes CEC commands through the HDMI output.

Bandwidth And Compatibility Limits

Maximum bandwidth is 18.2 Gbps for 4K at 60 Hz with RGB 4:4:4 and 36-bit deep colour. The switch is not compatible with DVI sources. Lower resolutions such as 4K at 30 Hz and 1080p are also supported.

Audio Extraction Modes

Optical and coaxial outputs deliver 5.1-channel or two-channel audio, while the 3.5 mm jack and L/R outputs are limited to two-channel or audio copy modes. ARC support extracts TV audio to a soundbar or amplifier via the HDMI output port.

Highlights

  • Switch two 4K sources to one display
  • Extract 5.1 audio via optical or coaxial
  • 4K 60 Hz with 18.2 Gbps bandwidth
  • ARC pulls TV audio to soundbar
  • 36-bit deep colour at 4:4:4 chroma

Specifications

TypeHDMI

Questions about this item

Should I pick the 3.5 mm jack or the optical SPDIF output for my soundbar?

Use optical SPDIF or coaxial when you want 5.1CH surround sound; the 3.5 mm and L/R outputs are limited to 2CH stereo.

What does the 4K 60Hz rating mean when I connect my PS5?

The switch passes 4K at 60 Hz with RGB 4:4:4 and 36-bit Deep Color up to 18.2 Gbps bandwidth, matching HDMI 2.0b performance.

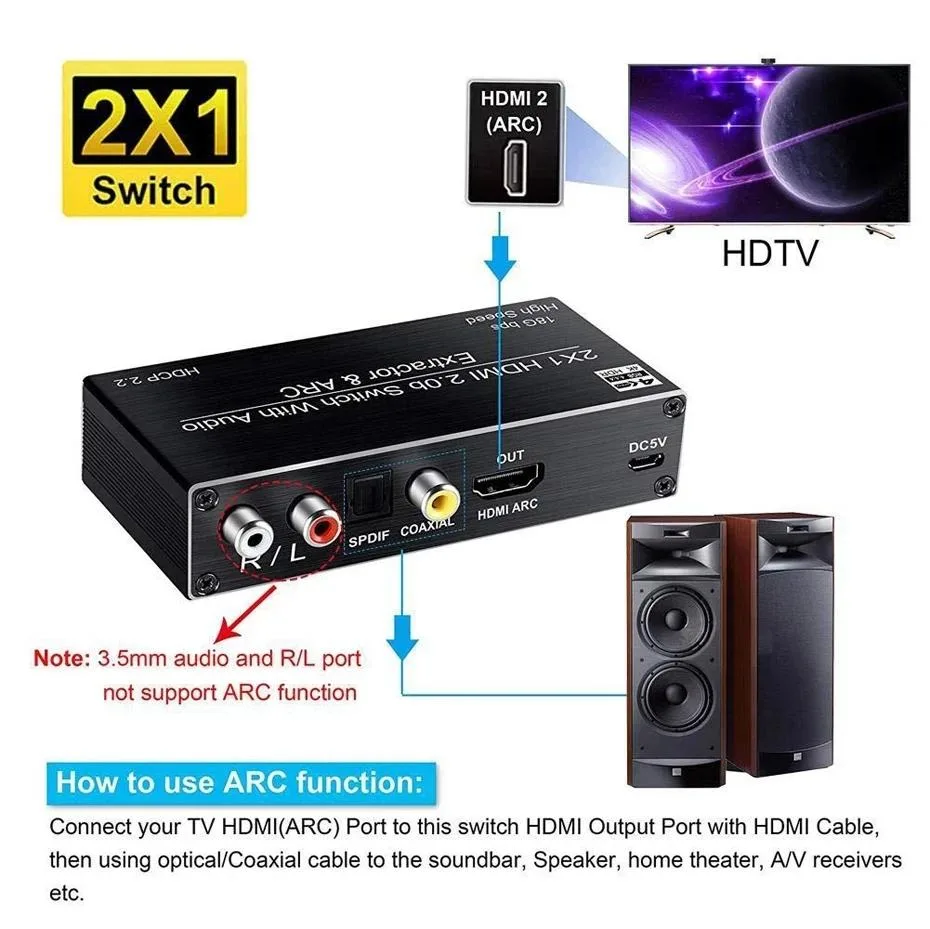

How does the ARC function work with my TV and amplifier?

Connect the TV HDMI ARC port to the switch HDMI output, then route audio to the amplifier via optical or coaxial for 5.1CH or 2CH playback.
