YINGHUA
YINGHUA 200M HDMI KVM Extender Over Cat5e/6 (AU Plug) One RX
Extends HDMI video, audio, IR and USB keyboard/mouse up to 200 m over a single Cat5e/6 cable with 1080p60 support
- TypeHDMI
- Extends HDMI, USB and IR up to 200 m over a single Cat5e/6 cable
- Delivers 1920 x 1080 at 60 Hz with 165 MHz pixel clock and 6.75 Gbps data rate
- HD 1.3 and HDCP 1.2 compliant for protected content playback
- Built-in ESD protection and automatic adjustment keep the image stable
- Plug-and-play installation with IR carrier at 38 kHz

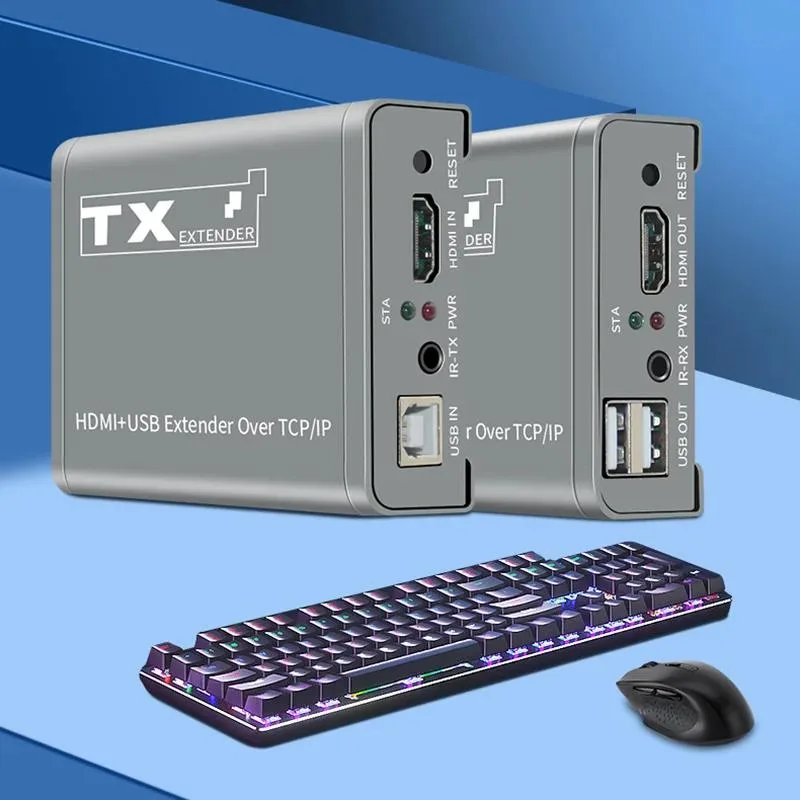

200 m HDMI KVM Extender

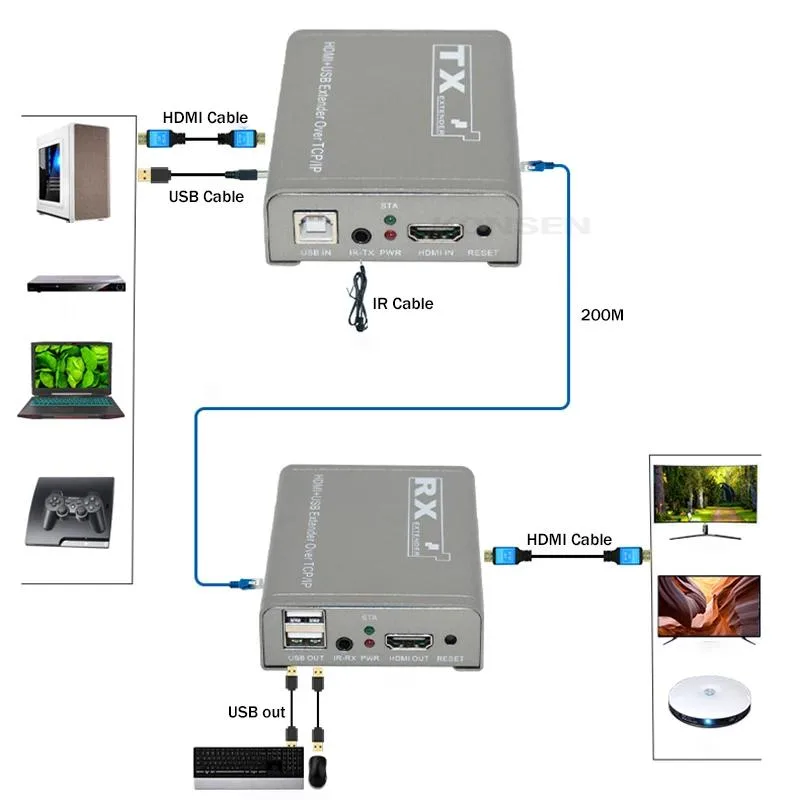

The YINGHUA extender sends 1080p HDMI video, audio, USB keyboard and mouse signals, plus IR control up to 200 metres over a single Cat5e or Cat6 cable. It uses standard TCP/IP so the link can pass through an ordinary network switch. The receiver unit arrives with an AU plug power supply.
Replaces short HDMI and USB cables
This kit replaces direct HDMI and USB runs that cannot reach beyond a few metres. The jump is worth it when the source and the operator must sit in separate rooms or on different floors. It does not suit buyers who need multi-monitor output or resolutions above 1080p at 60 Hz.
Sustained 1080p 60 Hz over Cat5e/6
The link maintains 1920×1080 at 60 Hz with a 165 MHz pixel clock and 6.75 Gbps data rate across the full 200 metre distance. Built-in automatic adjustment keeps the image stable and clear during continuous operation. ESD protection and HDCP 1.2 compliance prevent drop-outs during long sessions.
Highlights
- Extends HDMI, USB and IR up to 200 m over a single Cat5e/6 cable
- Delivers 1920 x 1080 at 60 Hz with 165 MHz pixel clock and 6.75 Gbps data rate
- HD 1.3 and HDCP 1.2 compliant for protected content playback
- Built-in ESD protection and automatic adjustment keep the image stable
- Plug-and-play installation with IR carrier at 38 kHz
Specifications
| Type | HDMI |
|---|
Questions about this item
What length and category of Cat5e/6 cable can I run between the transmitter and receiver?
The extender transmits 1080P HDMI, USB keyboard and mouse, and IR signals up to 200 metres over a single Cat5e or Cat6 cable.
Which USB port on the transmitter connects to the host PC, and what signal type does it carry?
The transmitter uses a Type B USB interface that carries HID signals for keyboard and mouse control.
How often should I check the built-in ESD protection and IR receiver for reliable operation?
The unit has built-in ESD protection and a 38 kHz IR receiver; no routine maintenance is required beyond keeping connectors clean and cables undamaged.
