Black transmitter and receiver units with UK power plugs and HDMI ports

YINGHUA

YINGHUA 200M HDMI IP Extender KVM Switch (UK Plug, 1 TX 1 RX)

SKU CH-3S2B-8WPBF

Extends HDMI up to 200 metres over CAT5e/6 cable with 1080p resolution, IR control, and loop-out

  • TypeHDMI
  • Extends HDMI up to 200 metres over CAT6 cable
  • H.264 encoding delivers 8.1M bps transmission rate
  • Works point-to-point, multipoint or cascaded via Ethernet switch
  • Transmitter includes HDMI loop-out for local display
  • IR remote control at 38 KHz for convenient operation

HDMI IP Extender for 200-metre runs

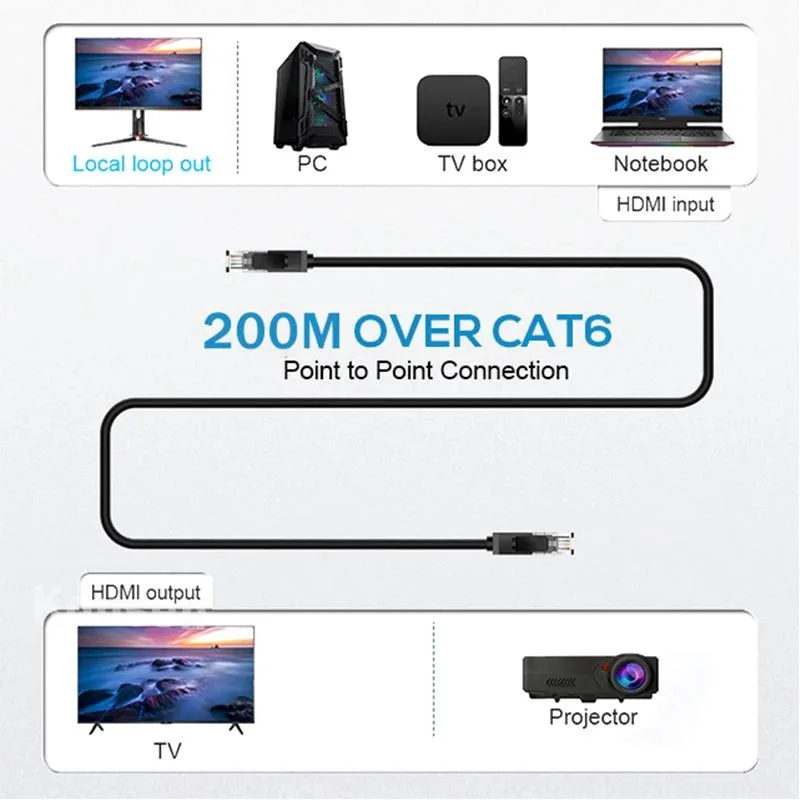

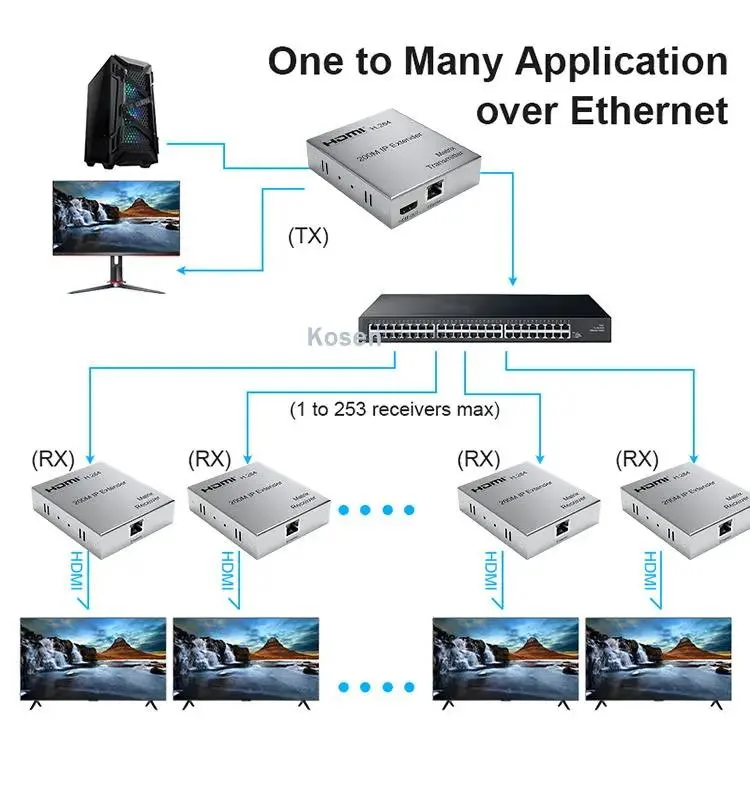

This KVM switch extends HDMI video and audio up to 200 metres over a single CAT5e or CAT6 cable. It uses H.264 encoding at 8.1M bps and follows the 802.3 Ethernet standard. The system supports point-to-point, point-to-multipoint and cascade connection modes. It is aimed at installers who need to place displays far from the source device.

Check cabling and resolution needs

Verify that your installation can run CAT5e or CAT6 cable between the transmitter and receiver locations. The extender handles 480p, 720p and 1080p resolutions only. Audio is limited to sample rates of 32, 44.1 and 48 kHz. Ensure your source and display operate within these resolution and audio constraints before ordering.

Bundled IR remote and UK power adapters

The package includes an IR remote operating at 38 KHz with NEC protocol for source control from the display side. A UK-plug power adapter is supplied for each unit. The transmitter provides an HDMI loop-out for a local monitor. No additional software is required, so the hardware works immediately after connection.

Highlights

  • Extends HDMI up to 200 metres over CAT6 cable
  • H.264 encoding delivers 8.1M bps transmission rate
  • Works point-to-point, multipoint or cascaded via Ethernet switch
  • Transmitter includes HDMI loop-out for local display
  • IR remote control at 38 KHz for convenient operation

Specifications

TypeHDMI

Questions about this item

Does the package include the transmitter, receiver and UK power adapters, or do I need to buy CAT5e/6 cables separately?

The box contains one transmitter, one receiver and UK power adapters; CAT5e or CAT6 UTP cables for the 200 m link must be purchased separately.

Should I choose the point-to-point, point-to-multipoint or cascade mode for a single source to multiple displays?

For one source to many displays use point-to-multipoint mode; point-to-point is for a single display and cascade extends the chain further.

What does the 200 m figure mean when the extender is connected through a standard gigabit switch?

The 200 m distance is achieved over CAT6 cable; the extender follows the 802.3 Ethernet standard and transmits H.264 video at 8.1 Mbit/s with 1080p resolution.
