Two small black boxes with HDMI ports and Ethernet jacks, one labeled TX, one RX, US power adapters included

YINGHUA

YINGHUA 150M IP HDMI KVM Extender (US Plug, 1 TX + 1 RX)

SKU CH-QQBM-FEBRH

Extends HDMI and USB control up to 150 m over a single CAT6 cable with 1080p 60 Hz support

  • TypeHDMI
  • Transmits HDMI up to 150 m over CAT6
  • Full HD 1920×1080 at 60 Hz supported
  • USB keyboard and mouse control included
  • Plug-and-play setup with auto-adjustment
  • Works through standard network switches

150 m HDMI KVM extender for remote workstations

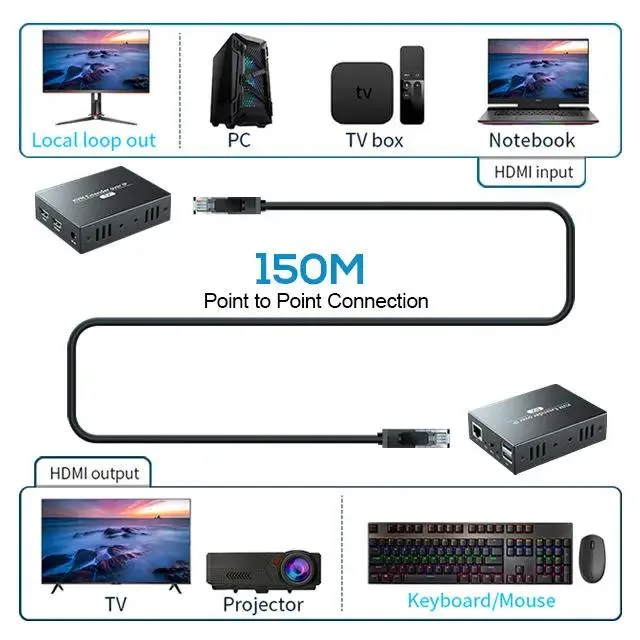

This transmitter and receiver set extends HDMI video, audio and USB keyboard or mouse signals up to 150 metres over a single CAT6 cable. It is built for operators who need to place a computer in a secure rack while controlling it from a distant desk or studio.

Plug-and-play CAT6 link with dual power adapters

Each unit measures 95 by 70 by 26 mm and draws power from an included 5 V 2 A adapter. Mini USB on the transmitter connects to the host PC, while the receiver provides USB ports for keyboard and mouse, giving a tidy, driver-free installation over standard Ethernet wiring.

1080p 60 Hz over HDMI 1.3 and HDCP 1.2

The extender passes Full HD 1920 by 1080 at 60 Hz within the HDMI 1.3 and HDCP 1.2 specifications. It will not suit users who require 4 K resolution, HDR metadata or higher refresh rates beyond the stated 1080p 60 Hz limit.

Highlights

  • Transmits HDMI up to 150 m over CAT6
  • Full HD 1920×1080 at 60 Hz supported
  • USB keyboard and mouse control included
  • Plug-and-play setup with auto-adjustment
  • Works through standard network switches

Specifications

TypeHDMI

Questions about this item

What resolution and refresh rate does the HDMI 1.3 link actually deliver over the 150 m Cat6 run?

The extender carries 1920 x 1080 at 60 Hz over a single Cat6 cable up to 150 m, compliant with HDMI 1.3 and HDCP 1.2.

What are the exact dimensions of each transmitter or receiver unit so I can check rack or desk clearance?

Each unit measures approximately 95 x 70 x 26 mm, so allow at least that footprint plus cable bend radius when mounting.

Which cables and ports must be connected on the transmitter side before the link will pass video and USB?

Plug the source into the transmitter HDMI input, connect a Mini USB cable from the transmitter to the PC for KVM data, attach keyboard and mouse to the USB K/M ports, then link TX and RX with Cat5e/6 and power both units.
