Small black box with HDMI and USB ports, AU power plug, 95 by 70 by 26 mm

YINGHUA

YINGHUA 150M HDMI KVM Extender over IP (AU Plug, 1 RX)

SKU CH-QFTE-GD3EZ

Extends HDMI and USB keyboard and mouse signals up to 150 m over a single CAT6 cable with 1080p 60 Hz support

  • TypeHDMI
  • Extends HDMI and USB control up to 150 metres over a single CAT6 cable
  • Delivers Full HD 1920×1080P at 60 Hz for sharp video quality
  • Transmits keyboard and mouse signals via USB for remote operation
  • Works through standard network switches using TCP/IP for flexible deployment
  • Compact 95×70×26 mm units with plug-and-play setup for quick installation

Purpose and Audience

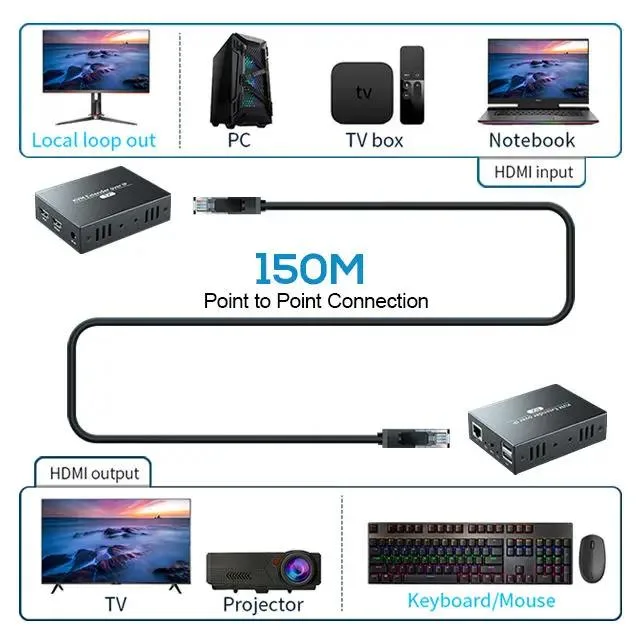

This HDMI KVM extender kit sends video, audio and USB keyboard-and-mouse signals up to 150 metres over a single Cat5e or Cat6 cable. It is built for installers and operators who need to place a display and controls far from the source computer in classrooms, signage or light-industrial settings.

Deciding Specification

The link is limited to 1920 by 1080 resolution at 60 Hz and complies with HDMI 1.3 and HDCP 1.2, so any source or display that requires higher bandwidth or newer copy-protection standards will not work through this extender.

Build Integration

The transmitter connects to the PC through a Mini USB port for keyboard and mouse data, while the receiver provides USB ports for the peripherals; both units need the included 5 V 2 A power adapters. The compact 95 by 70 by 26 mm housings fit on a desk or in a rack shelf, and the extender can pass through a standard Ethernet switch to share existing cabling infrastructure.

Highlights

  • Extends HDMI and USB control up to 150 metres over a single CAT6 cable
  • Delivers Full HD 1920×1080P at 60 Hz for sharp video quality
  • Transmits keyboard and mouse signals via USB for remote operation
  • Works through standard network switches using TCP/IP for flexible deployment
  • Compact 95×70×26 mm units with plug-and-play setup for quick installation

Specifications

TypeHDMI

Questions about this item

How does the 150-metre range over a single Cat6 cable behave when the extender is installed in a real rack?

The transmitter and receiver each measure about 95 by 70 by 26 millimetres, so they fit side-by-side on a standard shelf or can be Velcro-mounted behind a monitor without blocking adjacent ports.

What does HDMI 1.3 and HDCP 1.2 compliance actually limit on this extender?

It caps the video path at 1080p 60 Hz with eight-bit colour and stereo or compressed multichannel audio; higher resolutions, deep colour or HDCP 2.2 content will not pass.

What physical connections and power does the receiver need to operate?

The receiver requires one HDMI input from the display, two USB-A ports for keyboard and mouse, and the included 5 V 2 A AU-plug adapter; a mini-USB cable links the transmitter to the source PC.
