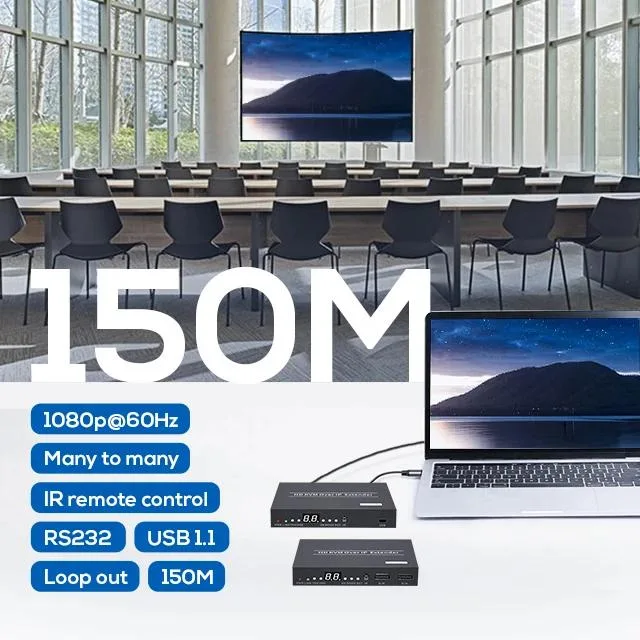

Two compact black boxes with HDMI, USB and RJ45 ports, UK power plugs included

YINGHUA

YINGHUA 150M HDMI KVM Extender Matrix 1 TX 1 RX UK Plug

SKU CH-RFYM-YV8NJ

Extends HDMI and USB signals up to 150 metres over Cat6 cable with support for 1920x1080 resolution at 60 Hz and IR remote control

  • TypeHDMI
  • Extends HDMI and USB control up to 150 metres over a single Cat6 cable
  • Supports 1920×1080 resolution at 60 Hz for clear video playback
  • Matrix function allows up to 99 device groups for flexible signal routing
  • IR receiver kit included for remote control of the source device
  • PoE switch compatibility simplifies installation by powering units through the network cable

150 m HDMI KVM extender matrix

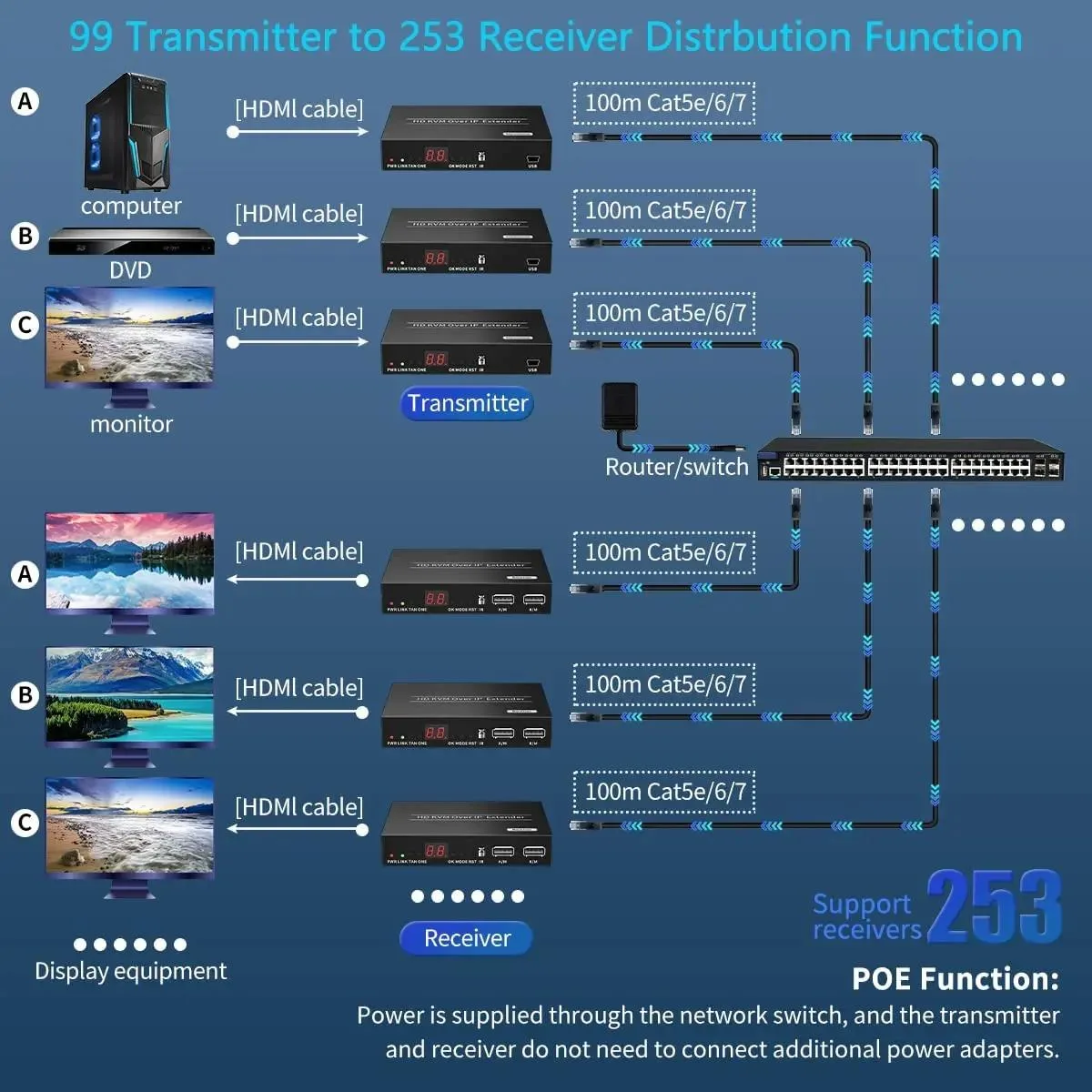

This HDMI KVM extender matrix uses standard Ethernet TCP/IP protocol to transmit video, audio and USB signals up to 150 m over a single Cat6 cable. The kit includes one transmitter and one RX receiver, each with a UK plug power supply. It supports matrix switching for up to 99 device groups via a PoE network switch, allowing many-to-many source and display combinations. Infrared pass-through with an included IR cable kit adds remote-control relay for the source device.

Cat6 cabling and PoE switch required

Before ordering, confirm you can run a solid-core Cat6 cable between the TX and RX locations up to 150 m. A PoE-capable network switch is needed to power the units and enable the matrix routing features. Verify that your HDMI sources output no higher than 1920 x 1080 at 60 Hz, as this is the maximum supported resolution. Ensure USB keyboard and mouse peripherals are standard HID devices for reliable KVM operation.

Replaces direct HDMI and USB runs

This extender replaces short direct HDMI and USB cables when the computer or NVR must sit far from the monitor and input devices. The jump is worth it when cable runs exceed typical copper limits, when multiple displays need the same source, or when several sources share multiple screens through a single network switch. It is not suited for installations requiring 4K resolution, higher refresh rates, or fibre-distance links beyond 150 m.

Highlights

  • Extends HDMI and USB control up to 150 metres over a single Cat6 cable
  • Supports 1920×1080 resolution at 60 Hz for clear video playback
  • Matrix function allows up to 99 device groups for flexible signal routing
  • IR receiver kit included for remote control of the source device
  • PoE switch compatibility simplifies installation by powering units through the network cable

Specifications

TypeHDMI

Questions about this item

Does the box include the Cat6 cable and the IR cables or do I need to buy them separately?

The kit ships with one transmitter, one receiver, a UK power plug and an IR cable kit; a Cat6 cable up to 150 m must be supplied by the installer.

The description mentions up to 99 groups of devices — how do I decide which capacity to choose?

The hardware supports up to 99 groups over a network switch; choose a switch with enough ports for the number of sources and displays you plan to connect.

What does the 1920×1080@60 Hz figure mean when the extender is running over a 150 m Cat6 link?

It is the maximum resolution and refresh rate the extender can deliver at the full 150 m distance over a single Cat6 cable.
