YINGHUA HDMI extender kit with transmitter and receiver units in black plastic housings

YINGHUA

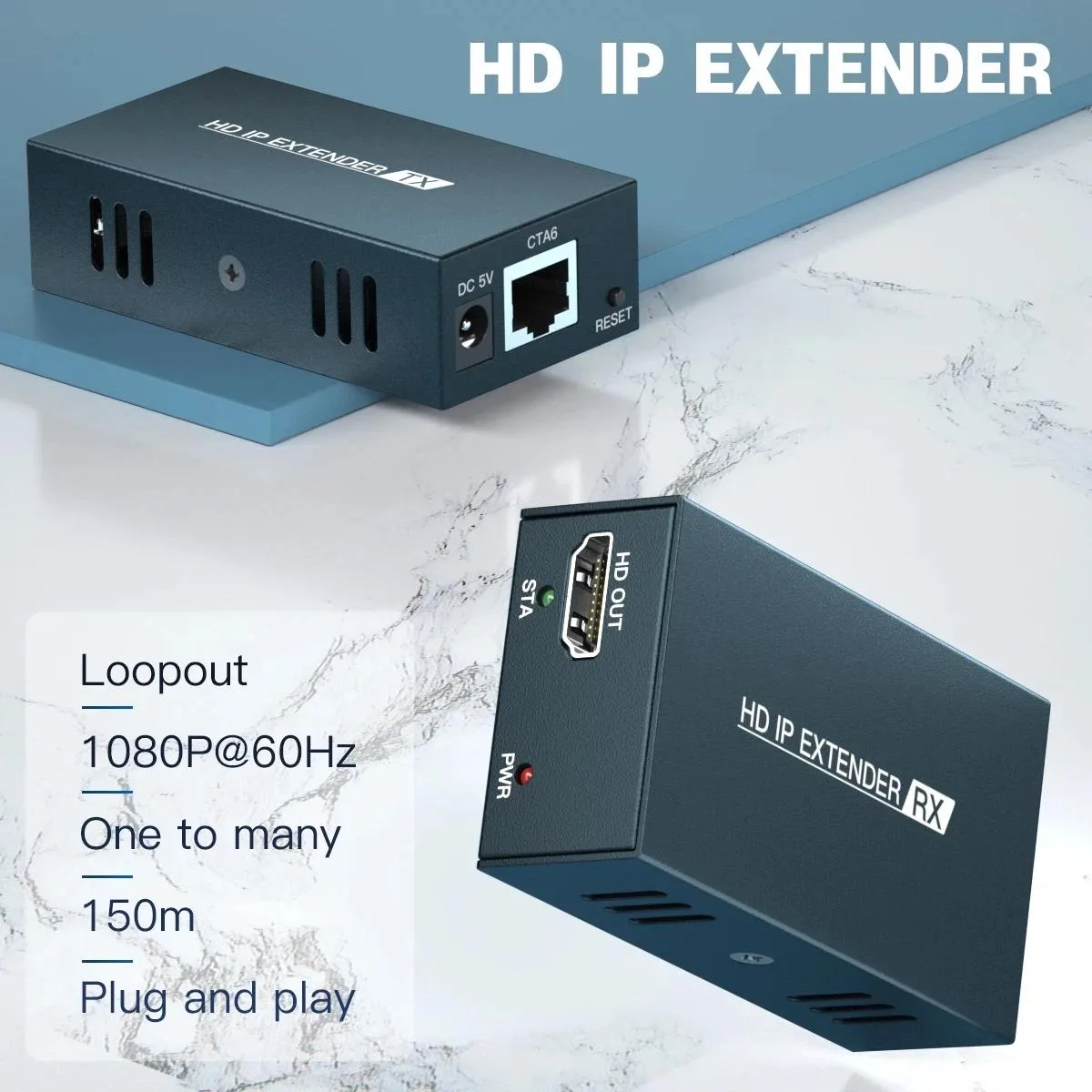

YINGHUA 150M HDMI Extender over IP KVM Switch (EU Plug) 1TX 1RX

SKU CH-VE02-V5P58

Extends HDMI up to 150 metres over a single Cat5e/6 cable with 1080p at 60 Hz and latency below 50 ms

  • TypeHDMI
  • Extends HDMI up to 150 m over single Cat5e/6 cable
  • Delivers 1080p at 60 Hz for sharp video quality
  • Supports 7.1 surround audio including DTS-HD and Dolby TrueHD
  • Low latency under 50 ms for responsive KVM control
  • Connects one transmitter to 253 receivers via Ethernet switch

HDMI extender over IP with KVM

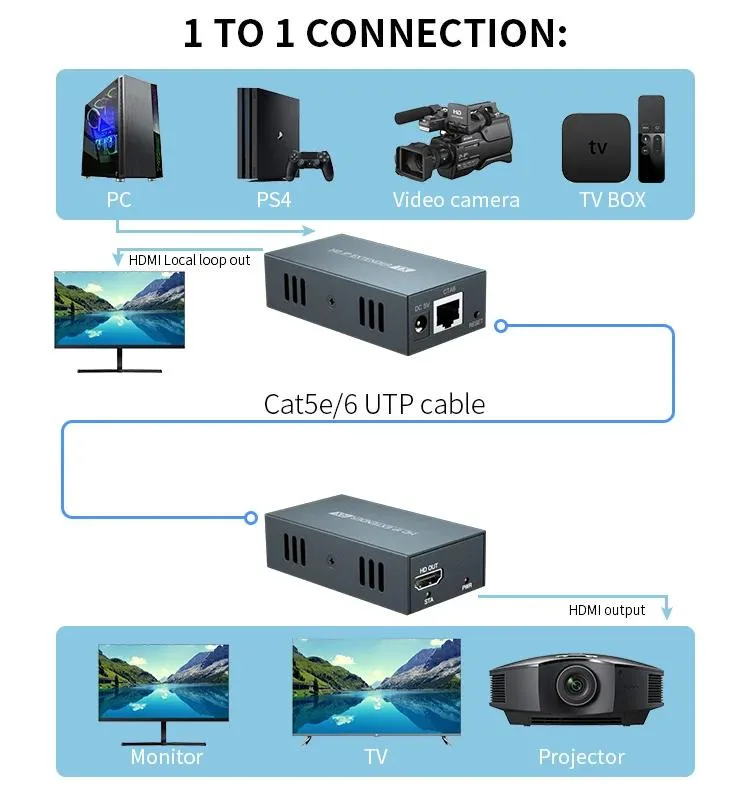

The YINGHUA kit extends HDMI video and USB control up to 150 metres over a single Cat5e or Cat6 cable. One transmitter pairs with one receiver for point-to-point use, or connects through an Ethernet switch to serve up to 253 receivers. It supports resolutions up to 1920x1080 at 60 Hz and audio formats including DTS-HD, Dolby TrueHD and LPCM 7.1. An EU plug power supply is included.

Suits installers needing long cable runs

This extender fits projects where the source and display are far apart, such as digital signage, factory floors or large homes. The H.264 compression keeps latency below 50 ms, making it usable for interactive KVM control. Buyers who need 4K resolution, HDCP 2.2 or uncompressed video should look at other solutions because this unit is limited to 1080p and HDCP 1.2.

Sustained operation with automatic adjustment

A built-in automatic adjustment system keeps the image smooth and stable during continuous use, while ESD protection guards the link against electrical transients. The transmitter and receiver run on standard 10/100/1000 Mbps Ethernet hardware, so performance does not degrade when the connection is routed through managed switches. Local EDID handling maintains consistent handshake behaviour across reboots.

Highlights

  • Extends HDMI up to 150 m over single Cat5e/6 cable
  • Delivers 1080p at 60 Hz for sharp video quality
  • Supports 7.1 surround audio including DTS-HD and Dolby TrueHD
  • Low latency under 50 ms for responsive KVM control
  • Connects one transmitter to 253 receivers via Ethernet switch

Specifications

TypeHDMI

Questions about this item

What Ethernet switch or router do I need to connect multiple RX units to the single TX?

Any standard IEEE 802.3 Ethernet switch or router with 10/100/1000 Mbps ports supports up to 253 RX units over TCP/IP.

Will my existing Cat5e patch cables carry the 1080p 60 Hz signal the full 150 m distance?

Cat5e works for shorter runs, but the 150 m specification requires a single solid-core Cat6 cable for reliable 1920x1080@60Hz transmission.

How can I verify the extender is delivering 1080p at 60 Hz with under 50 ms latency after installation?

Check the display’s on-screen information for 1920x1080@60Hz and test responsiveness; the built-in automatic adjustment keeps the image smooth and stable.
