Small black box with HDMI and RJ45 ports, AU power plug, labeled receiver only

YINGHUA

YINGHUA 150M HDMI Extender over Cat5e/6 (AU Plug) 1 RX only

SKU CH-PQBB-T1SF4

Extends HDMI up to 150 metres over Cat5e/6 cable with 1080p resolution and under 50 ms latency

  • TypeHDMI
  • Extends HDMI up to 150 metres over single Cat5e/6 cable
  • Delivers 1080p60 video with H.264 compression under 50 ms latency
  • Supports up to 253 receivers via standard network switch
  • Handles 7.1 surround audio at 48 kHz sampling rate
  • Built-in ESD protection and automatic image adjustment ensure stable signal

HDMI Extender with Cat5e/6 up to 150 m

This HDMI extender transmits 1080P video over a single CAT5e or CAT6 cable up to 150 metres. It uses H.264 compression and delivers latency below 50 ms. The receiver unit works with an Australian power plug and is sold as a single RX for expanding an existing transmitter setup.

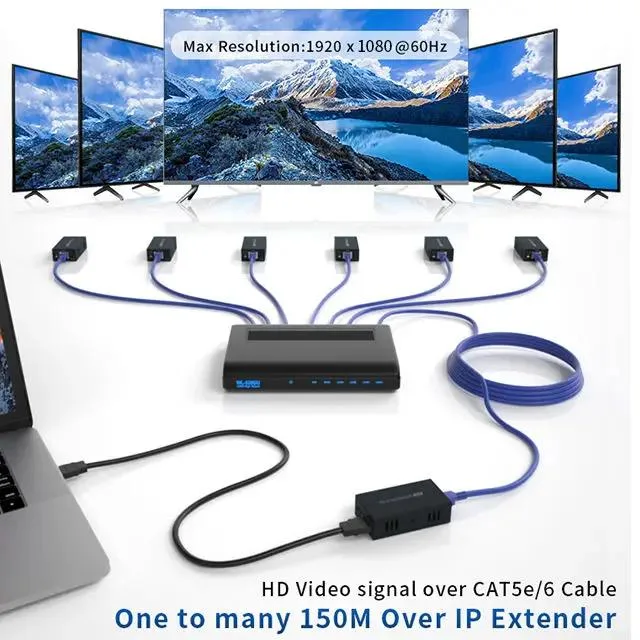

Receiver integration via network switch

The RX connects to a standard Ethernet switch or router using IEEE 802.3 10/100/1000 Mbps links, allowing one transmitter to serve up to 253 receivers. Local EDID management matches various displays automatically, while built‑in ESD protection safeguards the signal path. No extra cabling beyond the network infrastructure is required.

Audio formats and automatic adjustment

Supported audio includes LPCM 7.1, DTS-HD, Dolby TrueHD and DSD at 32, 44.1 and 48 kHz sampling rates. The built‑in automatic adjustment system keeps the image smooth and stable across long runs. HDMI 1.3 and HDCP 1.2 compliance ensures compatibility with protected content sources.

Highlights

  • Extends HDMI up to 150 metres over single Cat5e/6 cable
  • Delivers 1080p60 video with H.264 compression under 50 ms latency
  • Supports up to 253 receivers via standard network switch
  • Handles 7.1 surround audio at 48 kHz sampling rate
  • Built-in ESD protection and automatic image adjustment ensure stable signal

Specifications

TypeHDMI

Questions about this item

How far can the 1080p signal travel over Cat6 before image quality degrades?

The extender supports up to 200 m over a single Cat6 cable while maintaining 1920x1080@60 Hz resolution.

What is the maximum latency when the receiver runs continuously for hours?

Latency stays below 50 ms thanks to H.264 compression and the built-in automatic adjustment system.

Which transmitter and network gear are required to operate this single AU-plug receiver?

You need one compatible TX unit plus an Ethernet switch or router that supports IEEE 802.3 10/100/1000 Mbps for TCP/IP distribution.
