YINGHUA
YINGHUA 125KHz RFID Access Control Keypad Door Lock (10 keys)
A 125KHz RFID keypad door lock supporting 1000 users with card, PIN or both, includes 10 keys and operates from -10 to 60 °C
- TypeChain Guard
- MaterialMetal
- FunctionEntrance
- Keyless entry via 125KHz RFID cards and PIN
- Supports up to 1000 users for office or home use
- Operates standalone without a computer connection

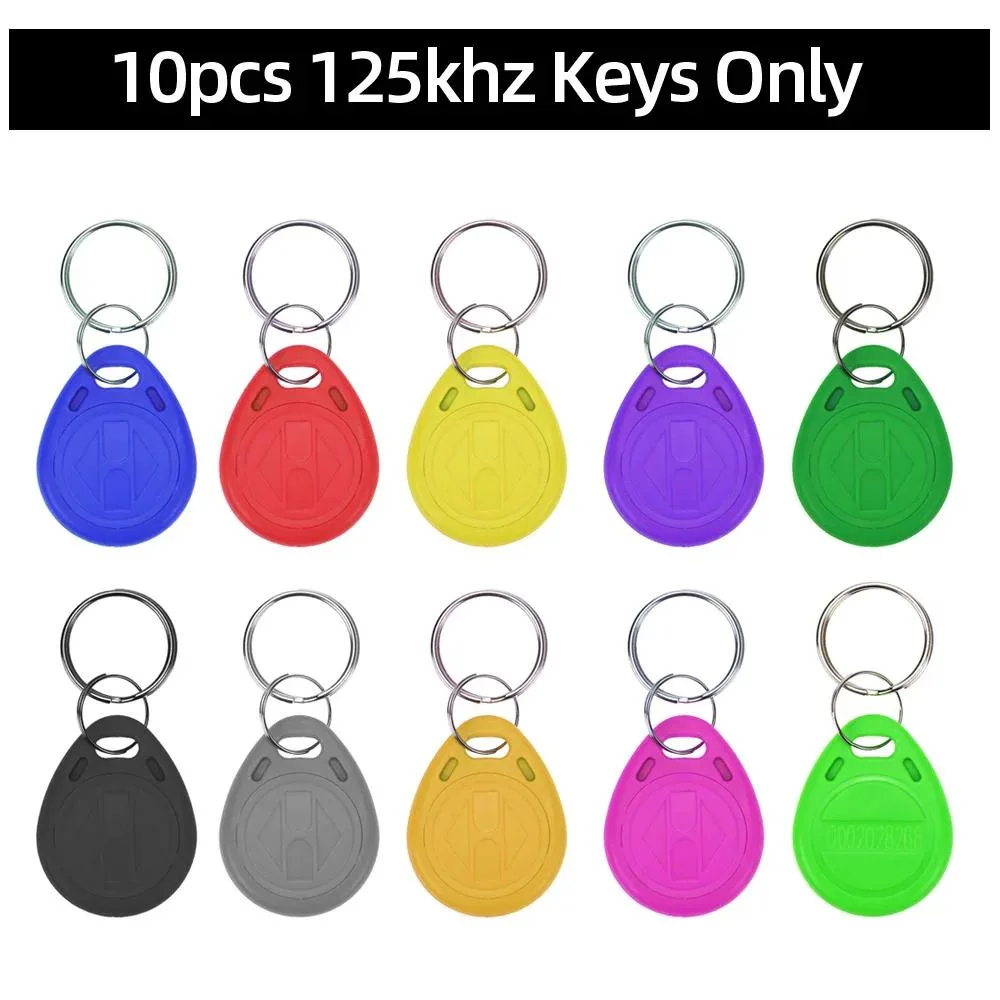

- Includes 10 RFID keys for immediate setup
- Functions from -10 to +60 °C in 20–90% humidity
Standalone RFID Access Keypad

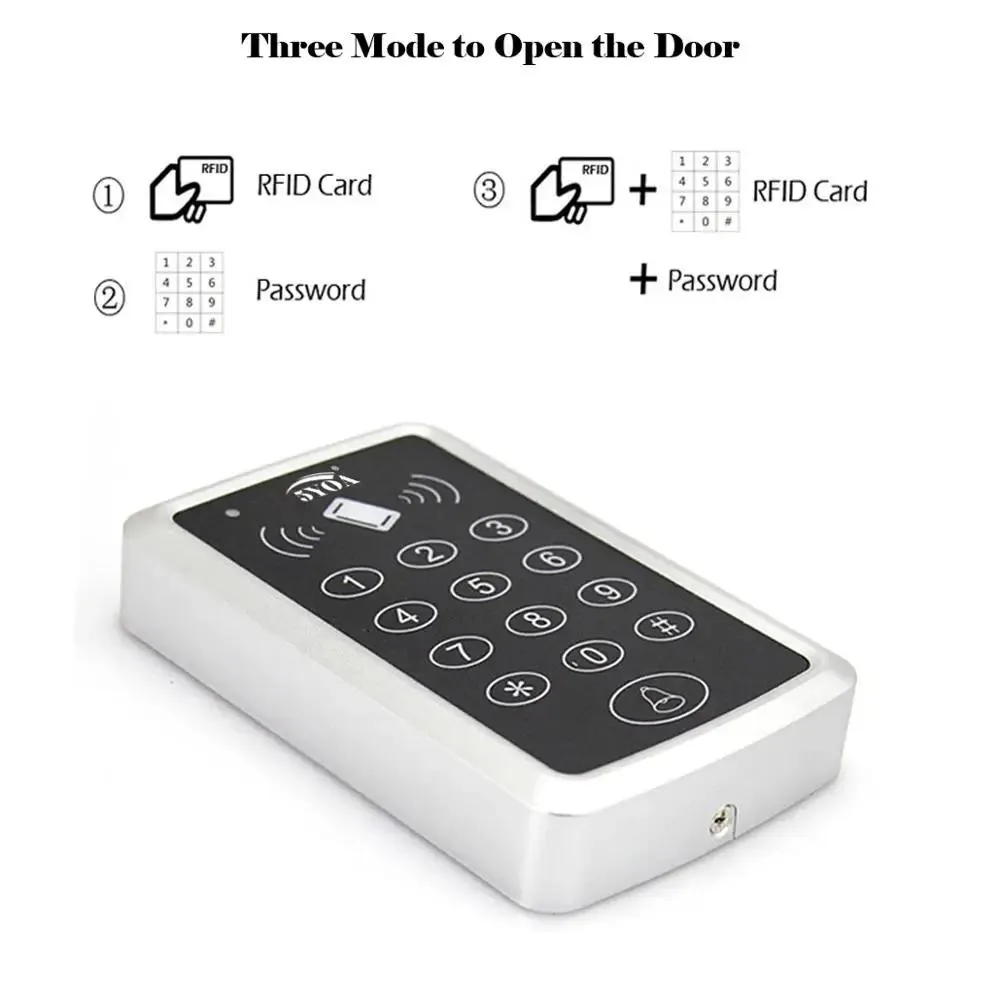

This 125KHz RFID access control keypad operates as a standalone unit without requiring a computer connection. It supports up to 1000 standard users and accepts card, password, or combined card-plus-password entry. The system includes ten 125KHz keys and features an integrated doorbell button. It is suited for homes, offices, hotels, and apartments needing a self-contained entry solution.
Metal Construction With Plastic Housing
The keypad uses a metal chain guard and high-quality plastic housing designed for low power consumption. It mounts at 120mm by 78mm by 22mm and reads credentials from 0 to 10cm away. Operating voltage is DC12 with a working temperature range of -10 to +60 Celsius and relative humidity tolerance of 20% to 90%. The durable build handles daily traffic at building entrances.
Upgrade From Basic Keyed Locks
This system replaces traditional mechanical locks where key management becomes impractical. The jump is worth it when you need to add or revoke access for many users without rekeying cylinders. It is not for buyers who require networked logging, remote management, or integration with building automation platforms.
Highlights
- Keyless entry via 125KHz RFID cards and PIN
- Supports up to 1000 users for office or home use
- Operates standalone without a computer connection
- Includes 10 RFID keys for immediate setup
- Functions from -10 to +60 °C in 20–90% humidity
Specifications
| Type | Chain Guard |
|---|---|
| Material | Metal |
| Function | Entrance |
Questions about this item
Does the 125KHz RFID interface cap the reading distance at 10cm?
Yes, the reader reads cards from 0 to 10cm, so the 125KHz frequency limits practical range to that distance.
What mounting dimensions and voltage does the 120mm x 78mm x 22mm keypad need?
The unit measures 120mm long, 78mm wide and 22mm deep, and requires a DC12V power supply for operation.
How is the B03 standalone controller wired, and which step do installers often skip?
Connect the DC12V supply, the lock output and the exit button; the step often missed is wiring the door-bell button so it actually rings.
