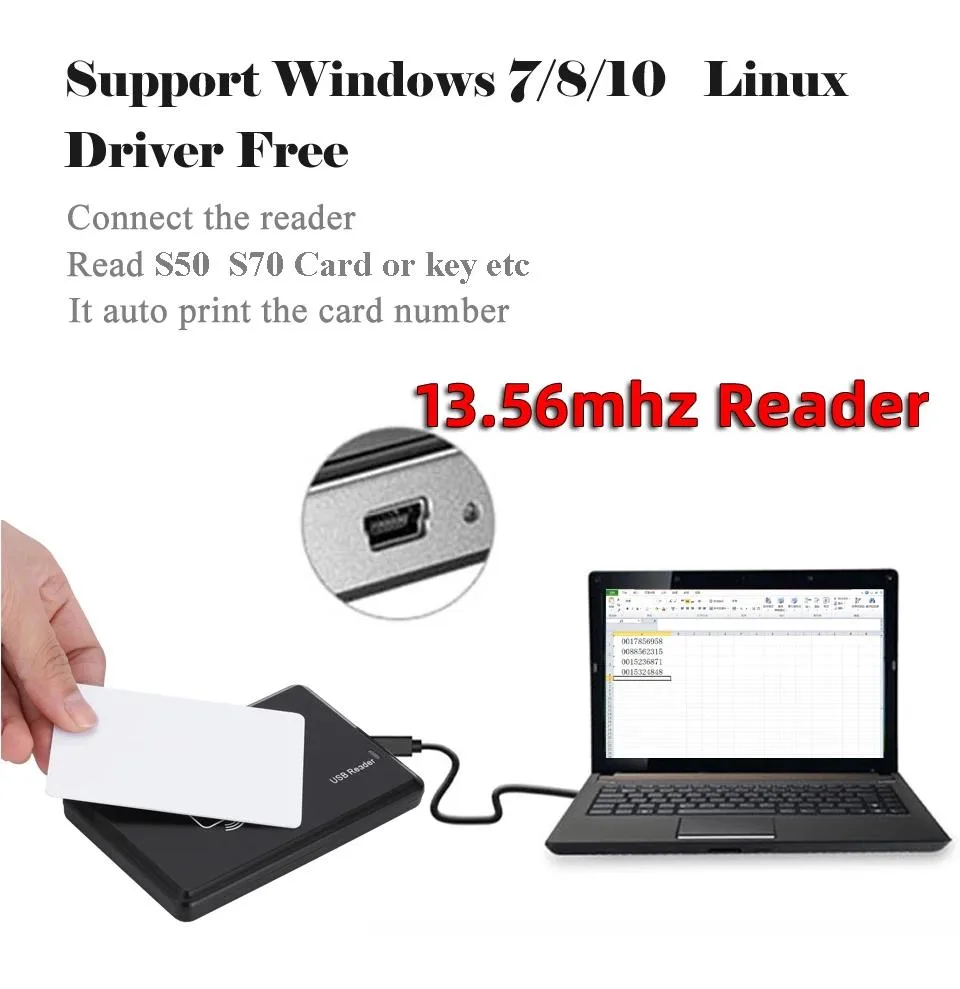

Compact black RFID reader with USB cable, dual-frequency labels on matte plastic housing

YINGHUA

YINGHUA 125KHz 13.56MHz RFID Reader USB Door Lock

SKU CH-FJ1Q-YA399

USB RFID reader reads 125 kHz and 13.56 MHz cards at 5–8 cm, driverless on Windows 2000, 2003, XP, Windows 7, powered from USB 5 V

  • TypeChain Guard
  • MaterialMetal
  • FunctionEntrance
  • Dual-frequency 125 kHz and 13.56 MHz reads both card types
  • Driverless USB plug-and-play works instantly on Windows 2000, 2003, XP and Windows 7
  • Powered directly from USB port with no external supply needed
  • Reads card serial number up to 8 cm distance
  • Operates reliably from -10 °C to 70 °C

Dual-Frequency RFID Access Reader

This USB proximity sensor reads both 125KHz and 13.56MHz credentials, making it suitable for access-control systems that must support legacy and modern cards. It connects directly to a PC and outputs the card serial number as automatic keyboard input, requiring no driver installation on Windows 2000, 2003, XP or Windows 7.

Driverless USB Metal Enclosure

The reader draws DC 5V power from the USB port, eliminating the need for an external supply, and its metal chain-guard housing is rated for entrance use. A 106Kbit/s communication speed and a 5-8cm read range allow quick badge presentation, while the operating range of -10 to 70 degrees Celsius supports indoor or sheltered outdoor mounting.

Replaces Separate Single-Frequency Units

Installations that currently run one reader for 125KHz cards and another for 13.56MHz cards can consolidate to this single device, reducing cabling and USB port consumption. The upgrade is worthwhile when a site issues mixed credential types or plans to migrate card technologies without replacing door hardware.

Highlights

  • Dual-frequency 125 kHz and 13.56 MHz reads both card types
  • Driverless USB plug-and-play works instantly on Windows 2000, 2003, XP and Windows 7
  • Powered directly from USB port with no external supply needed
  • Reads card serial number up to 8 cm distance
  • Operates reliably from -10 °C to 70 °C

Specifications

TypeChain Guard
MaterialMetal
FunctionEntrance

Questions about this item

What USB standard does the 13.56MHz reader use and what throughput does it cap at?

The reader connects via a USB interface and communicates at 106Kbit/s.

What physical space and mounting does the metal reader need?

It is a metal chain-guard style unit that plugs directly into a USB port with no external power supply required.

How is the reader installed and which step do people often miss?

Plug the USB cable into the PC; it is driverless for Windows 2000, 2003, XP and Windows 7, so no driver installation is needed.
