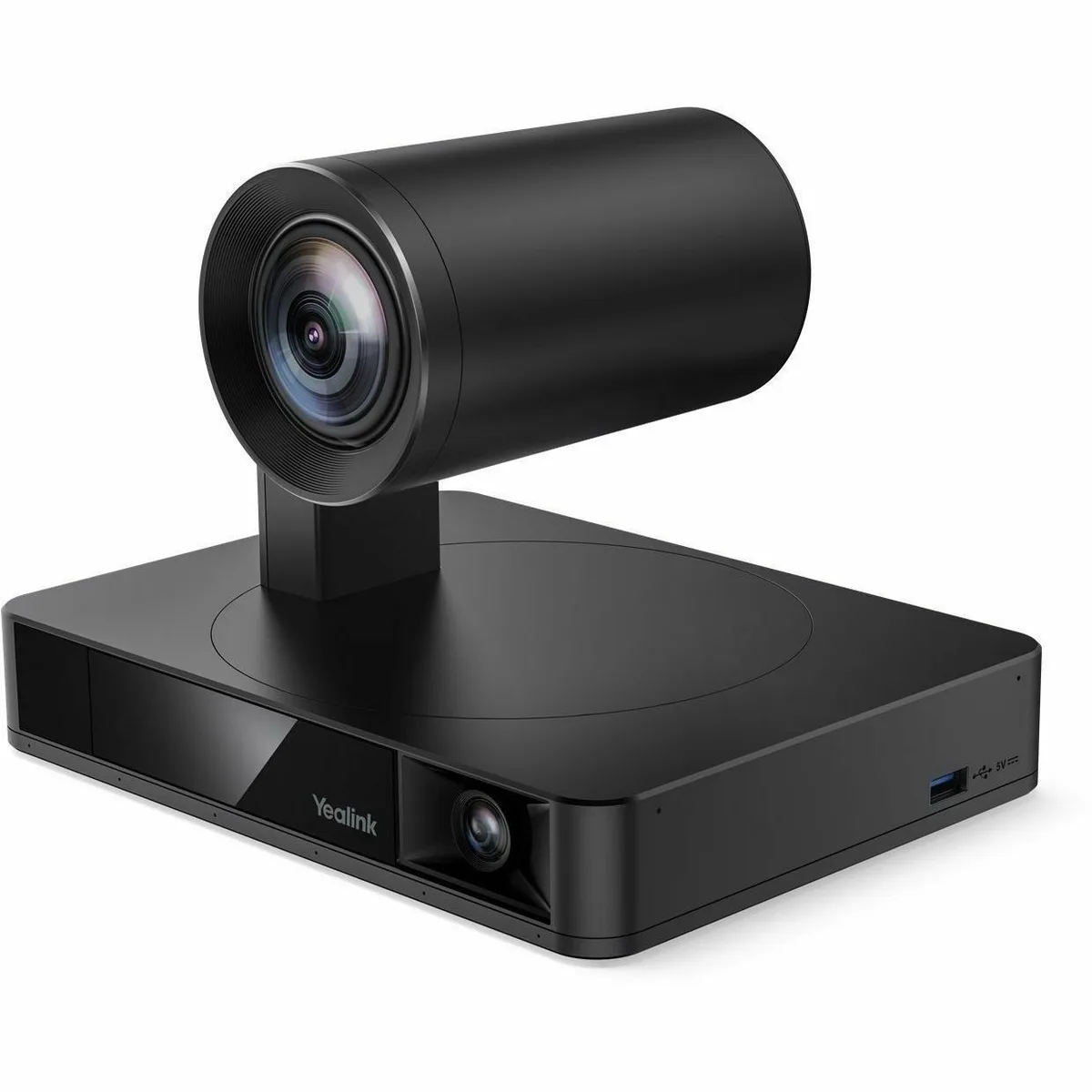

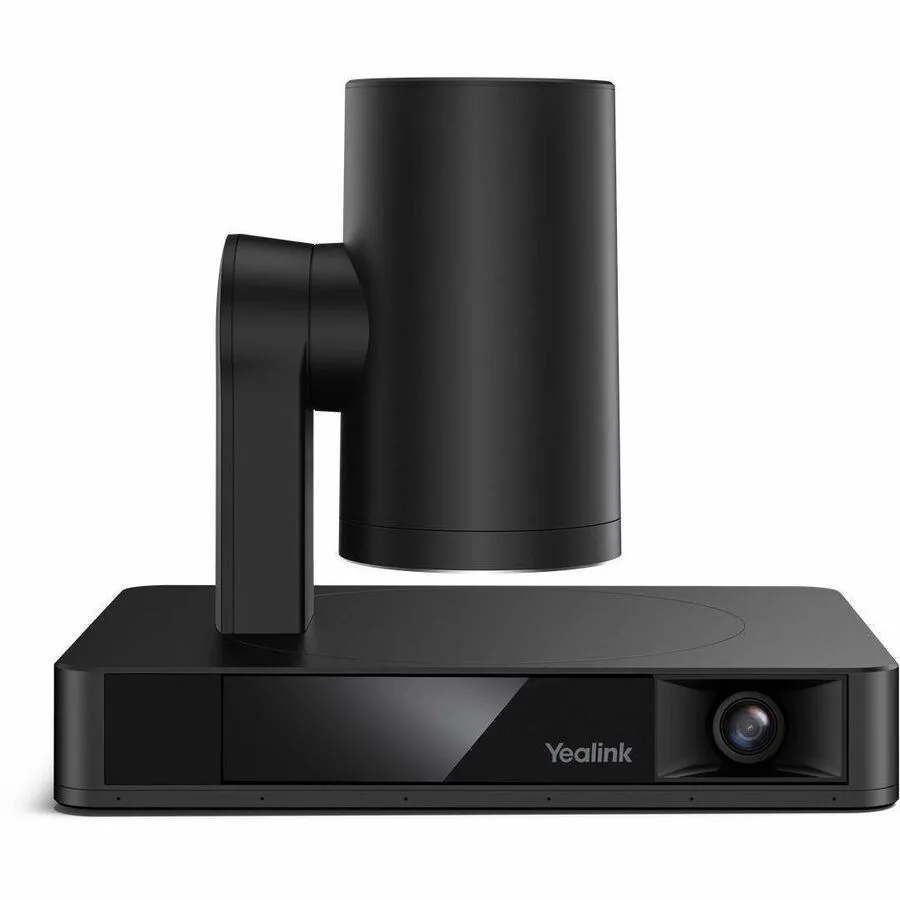

Black rectangular conferencing camera with dual lenses on a motorised PTZ base, 210mm wide, 156mm deep, 156mm tall when active

Yealink Network Technology Co., Ltd

Yealink Network Technology Co., Ltd UVC86 BLACK conferencing device

SKU CH-NBNE-VTGB0 MPN UVC86 BLACK

Dual-eye 4K conferencing camera with 12x optical zoom, PTZ movement and AI auto-framing, speaker and presenter tracking

  • TypeVideo Conference Device
  • ConnectivityUVC86 CONNECTIONS 1 x USB3.0 Type-B Port 1 x USB2.0 Type-A P
  • CameraPTZ CAMERA 8MP, Sony Sensor 90 degrees DFOV, 81 degrees HFOV
  • SpecificationAI FEATURES: Auto Framing Speaker Tracking Presenter Trackin
  • PowerExternal Yealink Power Adapter: AC 100~240V input and DC 48V
  • DimensionsSleeping Dimensions (W.D.H): 210mm x 156mm x 183mm Working D
  • Dual-eye 4K camera captures every participant at 30 frames per second
  • Auto Framing, Speaker Tracking and Presenter Tracking keep focus on the active talker
  • 12x optical zoom plus 1.7x digital zoom delivers 20.4x total magnification for clear detail
  • Mechanical pan ±100° and tilt +40°/-90° with nine presets covers the whole room
  • USB 3.0, USB 2.0, VCH, HDMI and 3.5 mm line-in connect to codecs and audio devices

Dual-Eye 4K Conferencing Camera

The Yealink UVC86 combines a PTZ camera and a panoramic lens to capture meeting rooms at 4K resolution and 30 frames per second. It connects via USB 3.0, USB 2.0, HDMI and a proprietary VCH port for audio devices or a codec. The unit is designed for medium to large rooms that need automated framing and tracking.

Sustained Operation With Mechanical PTZ

Motorised pan of ±100 degrees and tilt from +40 to -90 degrees move the lens smoothly during long sessions without the drift seen in digital-only zoom. The 12x optical zoom and 1.7x digital zoom keep detail intact when the camera reframes a presenter. External 48 V power ensures stable output for continuous daily use.

USB 3.0 Bandwidth And VCH Integration

The USB 3.0 Type-B link carries 4K video at 30 fps within the 5 Gbps ceiling of the interface, leaving no headroom for additional high-bandwidth streams on the same controller. The VCH RJ45 port is limited to Yealink audio peripherals, BYOD extenders or codecs, so third-party devices cannot use that path.

Highlights

  • Dual-eye 4K camera captures every participant at 30 frames per second
  • Auto Framing, Speaker Tracking and Presenter Tracking keep focus on the active talker
  • 12x optical zoom plus 1.7x digital zoom delivers 20.4x total magnification for clear detail
  • Mechanical pan ±100° and tilt +40°/-90° with nine presets covers the whole room
  • USB 3.0, USB 2.0, VCH, HDMI and 3.5 mm line-in connect to codecs and audio devices

Specifications

BrandYealink
ModelUVC86
TypeVideo Conference Device
ConnectivityUVC86 CONNECTIONS
1 x USB3.0 Type-B Port
1 x USB2.0 Type-A Port
1 x Yealink VCH Port (RJ45) for Audio devices, BYOD Extender or Yealink Codec
1 x 3.5mm Line in Port
1 x Power Port
1 x Security Lock Slot
1 x Reset Slot
1 x HDMI Out Port
Part NumberUVC86 BLACK
CameraPTZ CAMERA
8MP, Sony Sensor
90 degrees DFOV, 81 degrees HFOV, 50 degrees VFOV
20.4 x HD zoom (12 x optical, 1.7x digital)
Pan: ±100 degrees, Tilt: +40 degrees, -90 degrees
9 Camera Presets
PANORAMIC CAMERA
8MP, Sony Sensor
120 degrees DFOV, 110 degrees HFOV, 78 degrees VFOV
Manual Tilt: ± 9 degrees
SpecificationAI FEATURES:
Auto Framing
Speaker Tracking
Presenter Tracking
PowerExternal Yealink Power Adapter: AC
100~240V input and DC 48V/0.7A Output
DimensionsSleeping Dimensions (W.D.H): 210mm x 156mm x 183mm
Working Dimensions (W.D.H): 210mm x 156mm x 156mm
Working Height: 156 mm - 192 mm
Shipping weight4.99 kg
Package size381 × 274 × 229 mm

Questions about this item

How much power does the Yealink UVC86 draw when it runs all day?

The external Yealink power adapter supplies DC 48V at 0.7A from an AC 100-240V input, powering both the PTZ and panoramic cameras continuously.

What cables or devices must I already have to connect the UVC86 to my meeting-room setup?

You need a USB 3.0 Type-B cable for the host PC, a USB 2.0 Type-A cable for peripherals, and a VCH RJ45 link if you plan to attach Yealink audio devices or a BYOD extender.

Will the UVC86 work with my existing Yealink codec and speakerphone over the VCH port?

Yes, the single VCH RJ45 port carries audio, video and control signals to compatible Yealink codecs and audio devices, letting the dual-eye 4K camera integrate directly with your current Yealink hardware.
