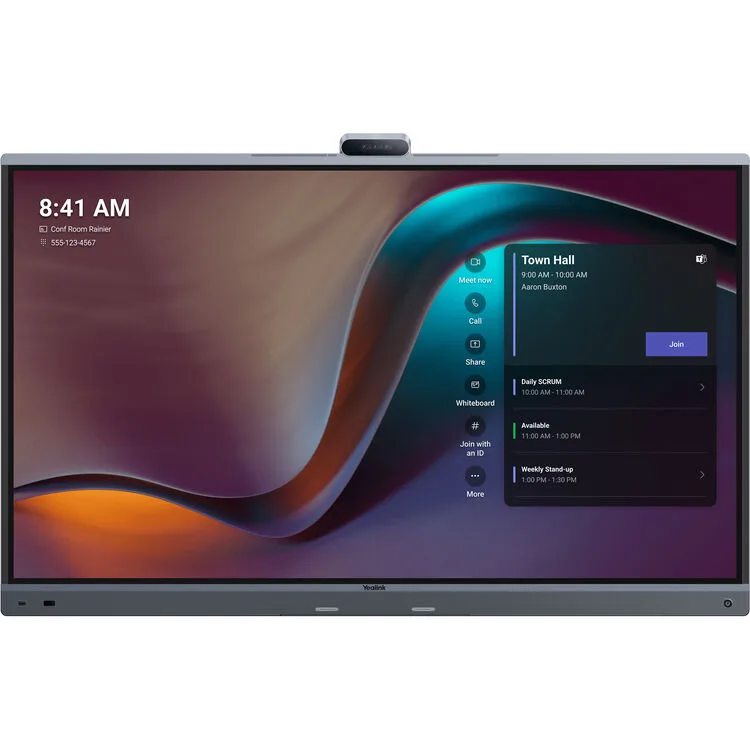

Large 86-inch all-in-one conferencing display with triple camera array, slim bezel, matte anti-glare finish

Yealink Network Technology Co., Ltd

Yealink Network Technology Co., Ltd MB86PRO-A02 86 inch conferencing device

SKU CH-665Y-PQTTE MPN MB86PRO-A02

An 86-inch all-in-one conferencing display with a triple 50MP camera, 16 MEMS microphones reaching 12 meters, stereo speakers, and native Teams and Zoom support

  • TypeVideo Conference Device
  • CameraMax Resolution: Built-in triple 50MP camera Image Sensor: So
  • Additional FeaturesOptional Accessories (sold separately) Mounting Accessories:
  • SpecificationINSTALLATION METHODS Wall-mounted installation Wall-stand in
  • Data Link ProtocolNETWORK PROTOCOLS Wi-Fi 6: 2.4G & 5G dual-band, 802.11a/b/g/
  • MicrophoneBuilt-in 16 MEMS microphone array Pickup distance: 12 meters
  • 86-inch 4K anti-glare display for clear room-wide viewing
  • Triple 50MP Sony-sensor camera with 98.2° field of view
  • 16 MEMS microphone array captures voices up to 12 metres
  • Wi-Fi 6 and Bluetooth 5.1 for flexible wireless connectivity
  • Native Teams, Zoom and General Mode support simplifies meeting joins

All-in-One Meeting Device for Medium Rooms

The Yealink MeetingBoard 86 Pro combines a 86 inch anti-glare display with a built-in triple 50MP camera, 16 MEMS microphone array and stereo speakers. It runs native Teams, Zoom and General Mode for immediate collaboration without an external PC.

Flexible Mounting and Connectivity

Wall, wall-stand or floor-stand installation options use dedicated brackets for the 86 inch size. Wi-Fi 6 and Bluetooth 5.1 provide wireless screen sharing and peripheral pairing, while wired HDMI input supports 4K60fps local content sharing.

Upgrade from Separate Components

Replaces a standalone display, soundbar, camera and compute module with a single calibrated system. The jump is worthwhile when deployment speed, consistent 12 meter audio pickup and integrated whiteboarding matter more than modular upgrades.

Highlights

  • 86-inch 4K anti-glare display for clear room-wide viewing
  • Triple 50MP Sony-sensor camera with 98.2° field of view
  • 16 MEMS microphone array captures voices up to 12 metres
  • Wi-Fi 6 and Bluetooth 5.1 for flexible wireless connectivity
  • Native Teams, Zoom and General Mode support simplifies meeting joins

Specifications

BrandYealink
ModelMeetingBoard
TypeVideo Conference Device
Part NumberMB86PRO-A02
CameraMax Resolution: Built-in triple 50MP camera
Image Sensor: Sony Sensor X3
Viewing angle: Wide-angle HFOV 98.2 degrees
PTZ type: Electronic pan-tilt
Zoom/Digital zoom: 4x digital zoom
Max resolution: 3840 x 2160
Max frame rate: 60Hz
Video output resolution: 3840 x 2160
Autofocus: Supported
Wide dynamic range: Supported
High dynamic range imaging: Supported
Exposure: Auto
White balance: Auto/Manual/ATW
Number of presets: 9
Privacy shutter: Electric privacy shutter
Swappable optical zoom camera module
AI Smart Framing
Additional FeaturesOptional Accessories (sold separately)
Mounting Accessories:
- Wall Mount
- MB-WallMount-650: for 65 inch
- MB-WallMount-860: for 75 inch & 86 inch
- Wall Stand
- MB-WallStand-650W: for 65 inch
- MB-WallStand-860W: for 75 inch & 86 inch
- Floor Stand
- MB-FS-P650T: for 65 inch
- MB-FS-P750T: for 75 inch
- MB-FS-P860T: for 86 inch
- MB-FS-Lift: for 65 inch, 75 inch & 86 inch
Audio Accessories:
- Wired microphone: VCM35
- Wireless microphone: VCM36-W
- Ceiling speaker: CS10
- Celling microphone: CM20
Casting Accessories:
- Wireless presentation pod (unavailable in the United States)
-
SpecificationINSTALLATION METHODS
Wall-mounted installation
Wall-stand installation
Floor-stand installation
CONTENT SHARING
Wired screen sharing:
Wireless screen sharing
SECURITY
Encryption protocols: supports H.235/TLS/signaling encryption
Encryption algorithms: supports SRTP media stream encryption and AES-256 encryption
Security mechanisms: supports VLAN, 802.1P/Q, Diffserv, and other QoS services
Security protocols: supports 802.1X, LLDP-MED, and other network security protocols
Web security: supports HTTPS web security management
Secure connection: supports OpenVPN
Other security mechanisms
Data Link ProtocolNETWORK PROTOCOLS
Wi-Fi 6: 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO
Bluetooth 5.1
TCP/IP (IPv4/IPv6), DHCP/Static IP
HTTPS secure web access
MicrophoneBuilt-in 16 MEMS microphone array
Pickup distance: 12 meters full-duplex
Signal-to-noise ratio: 70dB@1KHz
Max sound pressure level: 130dB SPL
Equivalent noise level: 24dB SPL
Dynamic range: 24-130dB SPL
Sensitivity: -38±1dBV/Pa
Frequency response: 20Hz~20KHz
Sampling rate: 48KHz
Bit depth: 24-bit
Expansion input: supports RCA input
SpeakerphoneStereo Speakers
Frequency response: 90~20KHz
Sensitivity: 87±3 dB [email protected] , 1W
Sampling rate: 48KHz
Expansion output: Supports RCA output
THD (Total Harmonic Distortion): at 20W, 1KHz, <5%
Rated impedance: tweeter-4ohm,full-range speaker-8ohm
Rated power: 30W
Max power: 36W
DisplayAnti-glare panel
Resolution: 3840 x 2160
Color Gamut: 72% NTSC/99% sRGB
Color Depth: 1.07G (10bit)
Contrast Ratio: 1200:1
Brightness: 400 cd / square meters
Refresh Rate: 60 Hz
Viewing Angle: 178 degrees (H)/178 degrees (V)
System wake-up: Motion sensor
Display Size86 inch
ResolutionVIDEO RESOLUTION
Lens resolution: supports up to 4K30fps
Content sharing: supports up to 4K60fps (HDMI In) locally, and up to 4K15fps in meetings
Shipping weight83.01 kg
Package size2096 × 1219 × 229 mm

Questions about this item

What Wi-Fi standard does the MeetingBoard 86 Pro use, and what does the 2x2 MIMO configuration limit in practice?

The device uses Wi-Fi 6 with 2x2 MIMO on 2.4 GHz and 5 GHz bands, limiting spatial streams to two and capping the maximum link rate to the 802.11ax two-stream ceiling.

Which wall-mount bracket is required for the 86-inch model, and what is its part number?

The MB-WallMount-860 bracket is specified for both 75-inch and 86-inch models and must be used for wall-mounted installation.

How is the MeetingBoard 86 Pro installed, and which step is commonly missed during setup?

It supports wall-mounted, wall-stand, or floor-stand installation using the model-specific brackets; the step often missed is securing the correct 86-inch bracket (MB-WallMount-860, MB-WallStand-860W, or MB-FS-P860T) before mounting the display.
