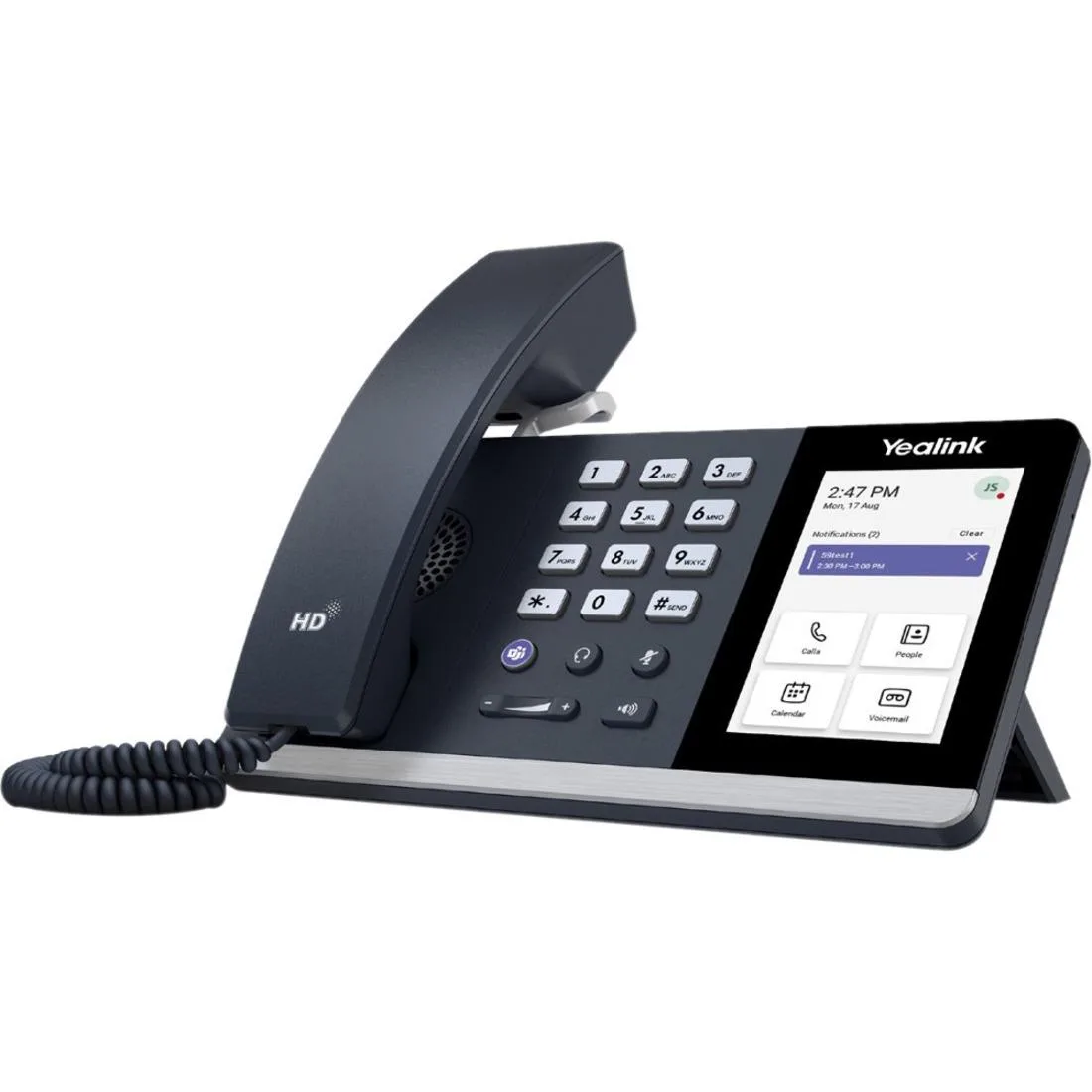

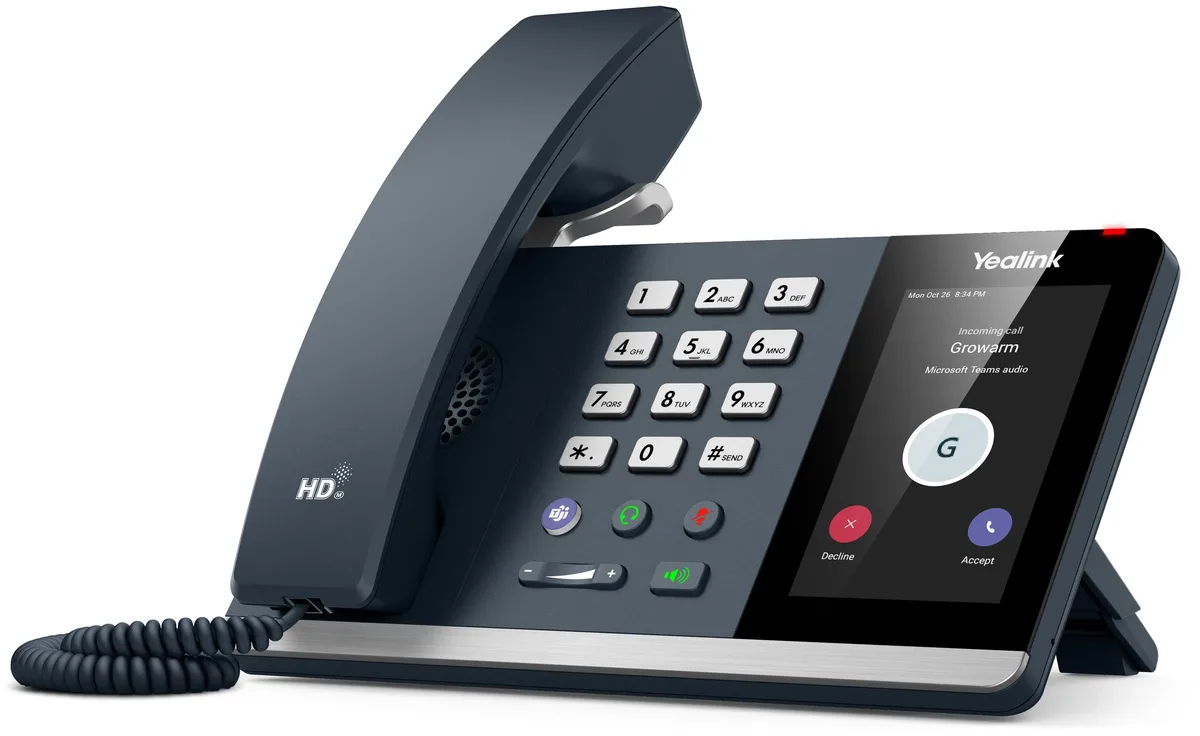

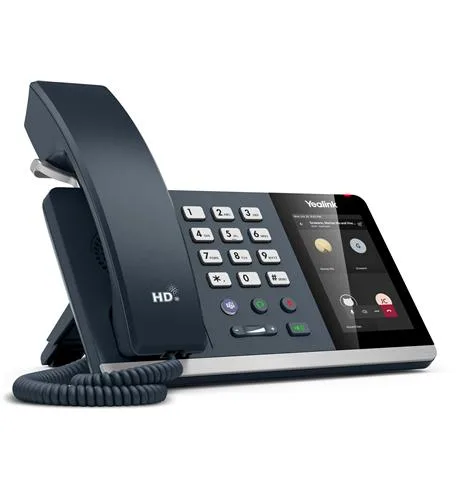

Yealink MP54 VoIP phone with 4-inch touch screen and adjustable stand

Yealink Network Technology Co., Ltd

Yealink Network Technology Co., Ltd 1301198 MP54 VoIP phone

SKU CH-8G09-ZFJ0F MPN 1301198

A 4-inch capacitive touch VoIP phone with dual Gigabit Ethernet, PoE, USB 2.0 for headsets or dongles, and Microsoft Teams integration

  • TypeVoip Telephones
  • Security• IPv4/IPv6 • IP Assignment: Static/DHCP • Proxy mode • HTTP
  • Ports• Dual-port Gigabit Ethernet • Power over Ethernet (IEEE 802
  • Display• LCD screen: - 4” 480×800 capacitive touch screen - Two-ang
  • Power• External Yealink AC adapter (optional): AC 100-240V input
  • Dimensions(W × D × H × T): 223 × 159 × 127 × 36 mm
  • 4-inch capacitive touch screen for intuitive control
  • Yealink Noise Proof Technology reduces background sound
  • Dual Gigabit Ethernet ports with PoE support
  • USB 2.0 port connects headsets, Wi-Fi or Bluetooth dongles
  • SIP and Teams hybrid mode simplifies unified communications

Yealink MP54 Teams IP phone

The Yealink MP54 is a Microsoft Teams-certified VoIP telephone built for office workers who need a dedicated desk device with a 4-inch capacitive touchscreen. It runs Android 9 and includes a dedicated Teams button for one-touch meeting access. Dual Gigabit Ethernet ports and Power over Ethernet class 3 support simplify cabling in managed networks. The handset is hearing-aid compatible and uses a magnetic cradle for secure placement.

Upgrade from basic SIP handsets

This model replaces entry-level SIP phones that lack native Teams integration or a touchscreen interface. The jump is worthwhile when an organisation standardises on Microsoft Teams and needs SIP-and-Teams hybrid mode for gradual migration. A single USB 2.0 port accepts a Wi-Fi dongle, Bluetooth dongle or wired USB headset, removing the need for separate adapters. Wall-mount brackets are supported for hot-desk or common-area deployments.

Sustained use in open-plan offices

Yealink Noise Proof Technology suppresses background chatter during long calls while the Optima HD voice codecs — including Opus, G.722 and G.711 — maintain clarity at 48 kHz wideband. Power draw stays between 1.7 and 6.8 watts depending on PoE or optional 5 V external supply, so the phone runs cool during all-day operation. The two-angle stand adjusts to 45° or 53° for comfortable viewing across shifts. Operating range spans -10 °C to 50 °C at 10–95 % humidity.

Highlights

  • 4-inch capacitive touch screen for intuitive control
  • Yealink Noise Proof Technology reduces background sound
  • Dual Gigabit Ethernet ports with PoE support
  • USB 2.0 port connects headsets, Wi-Fi or Bluetooth dongles
  • SIP and Teams hybrid mode simplifies unified communications

Specifications

BrandYealink
ModelMP54
Part Number1301198
TypeVoip Telephones
Security• IPv4/IPv6
• IP Assignment: Static/DHCP
• Proxy mode
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• Transport Layer Security (TLS)
• HTTPS certificate manager
• IEEE802.1X
Ports• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 1 x USB Type A port
- USB headsets
- Bluetooth headset (Only with Dongle)
- Wi-Fi (Only with Dongle)
• 1 x Security lock port
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
Display• LCD screen:
- 4” 480×800 capacitive touch screen
- Two-angle [45°/ 53°] stand
- 5 points multi-touch surface
• Dark theme
• Multi-language user interface
• Full keyboard
• LED for call and message waiting indication
• Dedicated Teams button
• Presence integration
Power• External Yealink AC adapter (optional): AC 100-240V input and DC 5 V/2 A output
• USB output currency: 5 V/500 mA
• Power consumption (PSU): 1.7-5.3 W
• Power consumption (PoE): 2.3-6.8 W
Dimensions(W × D × H × T): 223 × 159 × 127 × 36 mm
Temperature• Operating temperature: -10-50°C (+14-122°F)
Humidity• Operating humidity: 10-95%
Features• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset, magnet handset
• Yealink Noise Proof Technology
• Audio codec: SILK, Opus, G.722, G.722.1, G.722.1C, G.711 (A/µ), G.723, G.726, G.729AB , iLBC
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
• Call controls
- Call hold/Call mute/Call transfer/Call forward
- Visual voicemail
- Synchronized call logs
• Meeting call controls
- Mute/unmute, hold/resume
- Hang up
- Add/remove participant
- Join Skype for Business meetings
• Phone lock/unlock
• Emergency calls
• Hot desking
• Accessibil
Package Contents- Yealink MP54 IP phone
- Handset with handset cord
- Ethernet Cable (2m CAT5E FTP Cable)
- Stand
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 4.8 kg
• G.W/CTN: 5.3 kg
• Giftbox size: 249 × 179 × 103 mm
• Carton Meas: 529 × 188 × 261 mm
Shipping weight1.02 kg
Package size279 × 203 × 127 mm

Questions about this item

What desk space does the 223 × 159 mm footprint and 45°/53° stand require?

The phone measures 223 mm wide by 159 mm deep. Its two-angle stand locks at 45° or 53°, so allow a few extra centimetres behind the base for the steeper tilt.

How do I enable Wi-Fi or Bluetooth on the single USB 2.0 port, and what step is often missed?

Plug the Yealink Wi-Fi or Bluetooth dongle into the USB 2.0 port, then enable the radio in Settings > Basic > Wi-Fi/Bluetooth. The step often missed is rebooting the phone after the first insertion.

When should I replace the handset cord or the 2 m CAT5E FTP Ethernet cable?

Replace the coiled handset cord if the conductors crackle or the modular plug latch breaks. Replace the Ethernet cable if the clip snaps, the jacket kinks, or PoE negotiation drops to 10 Mbps.
