Yale

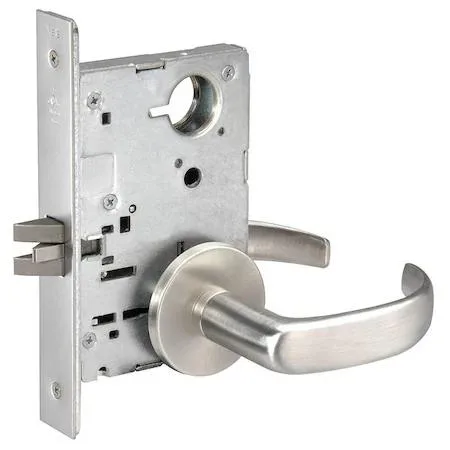

Yale PBR8801FL x 626 Lever Lockset, Passage, Grade 1
A commercial-grade mortise passage lockset with satin chrome finish, fire-rated for three hours and built from brass, stainless steel and zinc for heavy-duty use on wood or hollow-metal doors
- TypeDoor Hardware & Components
- Style8800FL Pacific Beach
- Grade 1 security for heavy-duty commercial use
- Passage function allows free access from both sides
- 3-hour fire rating meets strict safety codes
- Satin chrome 626 finish resists corrosion and wear
- 8800FL Pacific Beach curved lever style
Commercial-Grade Passage Lock
This Yale PBR8801FL x 626 lever lockset is a Grade 1 mortise lock designed for heavy-duty commercial use. It provides a passage function, meaning the latch operates freely from both sides without a locking mechanism. The lock fits wood or hollow metal doors with a thickness range of 1 3/4 to 3 3/4 inches. Its satin chrome finish and Pacific Beach curved style suit professional environments.
Build Integration Requirements
The lock requires a standard 2 3/4 inch backset and an 8 x 1 1/4 inch front cutout in the door edge. It includes a 1 1/4 x 4 7/8 inch ANSI strike plate for the frame. The case is constructed from wrought steel with zinc dichromate plating, while trim components use brass, stainless steel, and zinc. No cylinder or keying hardware is included or needed for this passage function.
Mechanical Operation Characteristics
As a fully mechanical device, the lockset draws no electrical power and produces no operational noise beyond the latch engaging the strike. The heavy-duty Grade 1 construction is fire-rated for three hours, ensuring structural integrity during a fire event. Internal components are designed for high-cycle durability in commercial traffic. Thermal performance is not applicable to this passive hardware.
Highlights
- Grade 1 security for heavy-duty commercial use
- Passage function allows free access from both sides
- 3-hour fire rating meets strict safety codes
- Satin chrome 626 finish resists corrosion and wear
- 8800FL Pacific Beach curved lever style
Specifications
| Brand | ASSA ABLOY ACCENTRA |
|---|---|
| Type | Door Hardware & Components |
| Style | 8800FL Pacific Beach |
Questions about this item
How long does the Grade 1 fire rating protect the opening?
The lockset carries a 3‑hour fire rating, maintaining integrity on wood or hollow‑metal doors during a blaze.
How much heat does the mortise case generate during constant operation?
The mechanical mortise has no electrical components, so it produces no measurable heat during all‑day use.
What door thickness and backset must the opening already have?
The door must be 1 3/4 to 3 3/4 inches thick with a 2 3/4‑inch backset for the mortise to fit.
