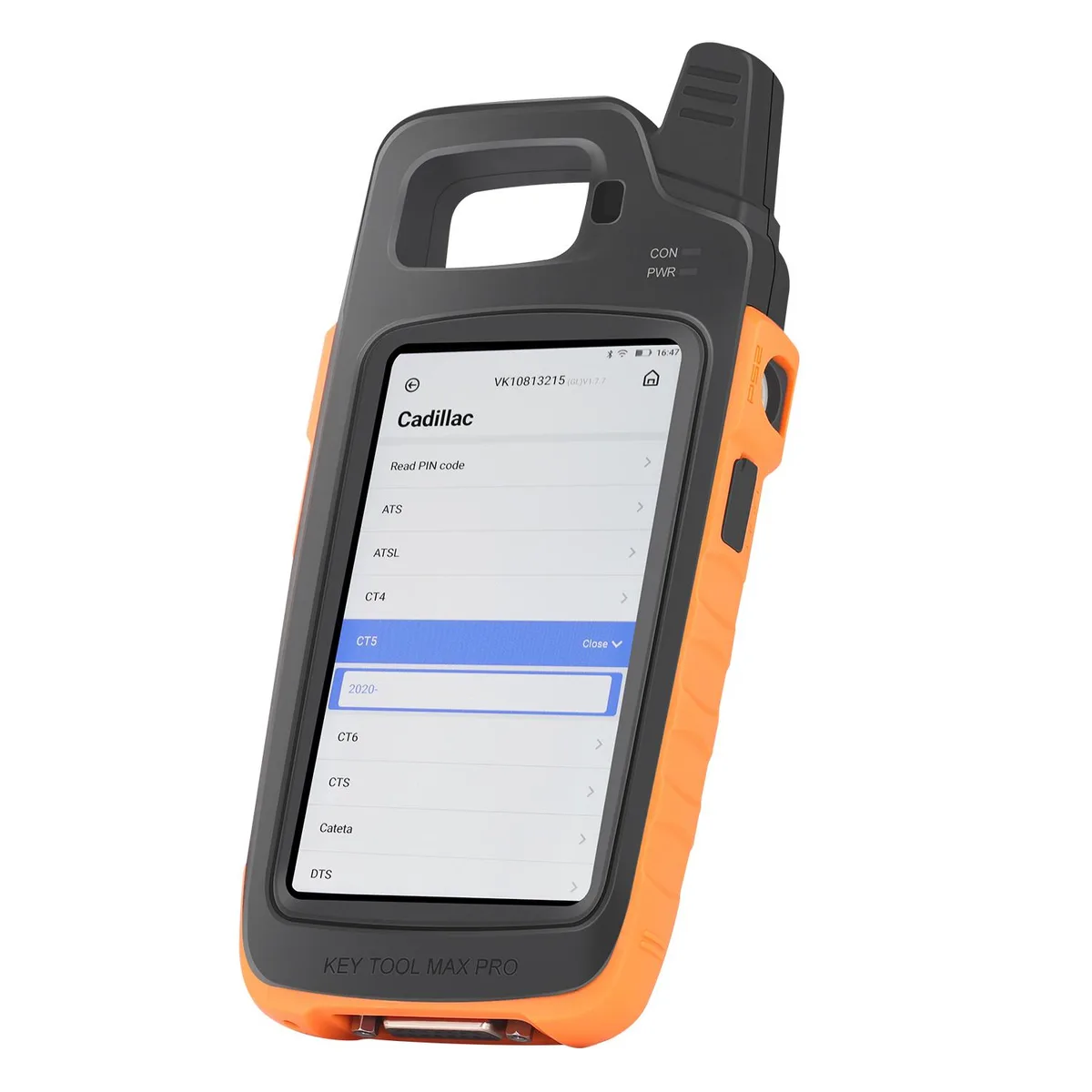

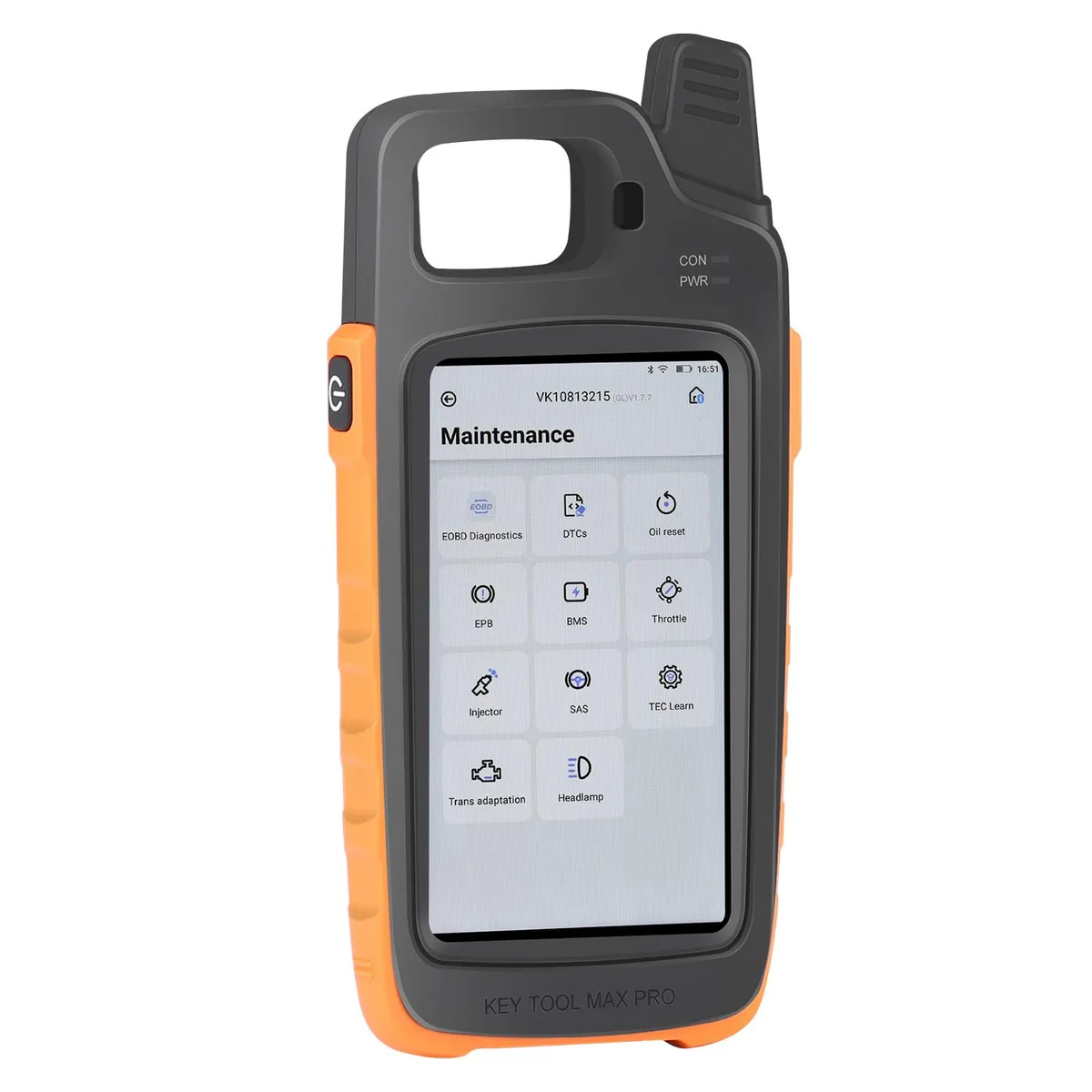

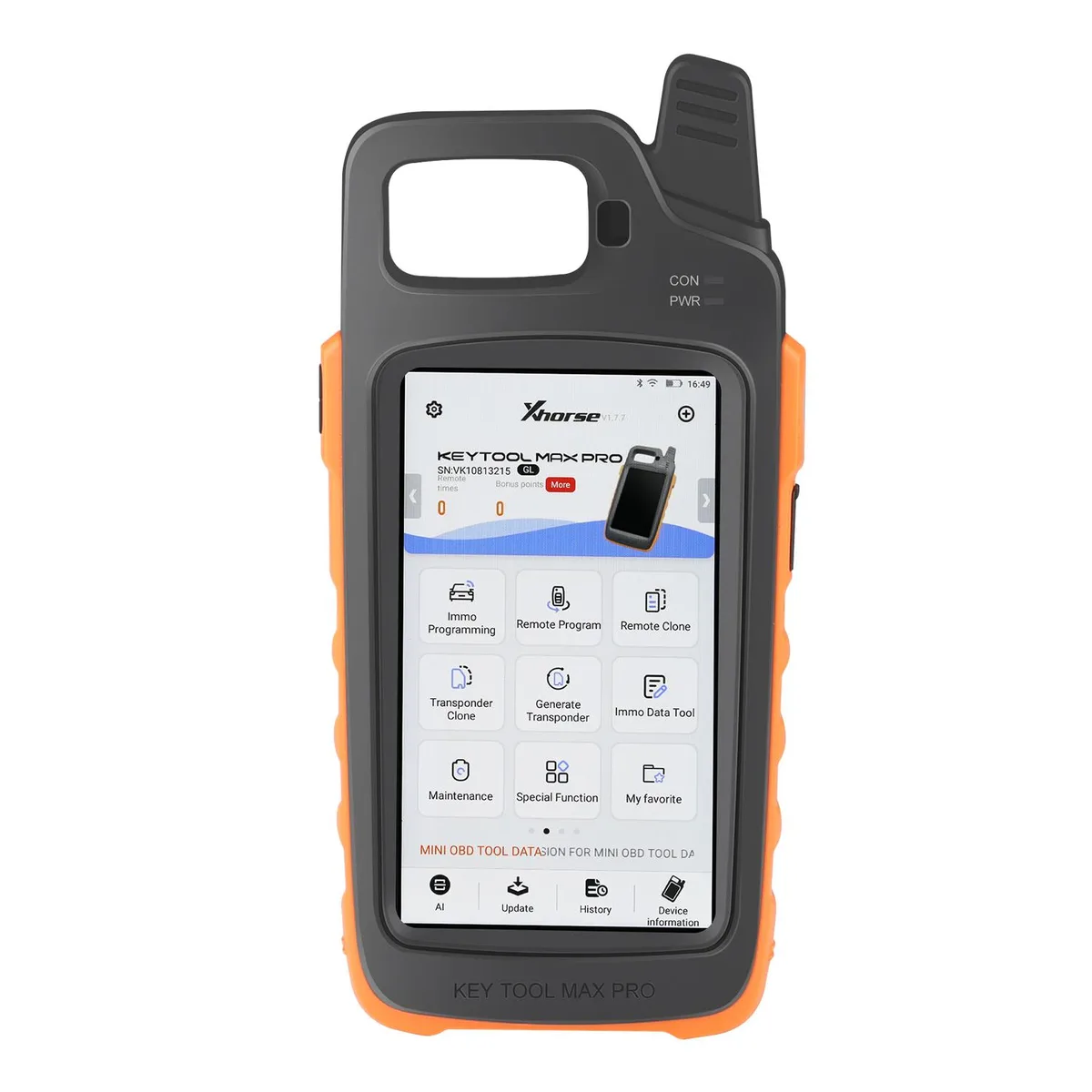

Handheld automotive key programmer with built-in OBD module, dark matte finish, colour touchscreen

XHorse

Xhorse VVDI Key Tool Max Pro With Mini OBD Tool

SKU CH-GWDW-5YAZR

Combines key programming, OBD immobiliser functions, voltage and leakage detection, plus CAN FD for GM vehicles in one device

  • Features1. VVDI Key Tool Max Pro is update version of Key Tool Max,
  • TypeCode Scanners & Accessories
  • Combines Key Tool Max and Mini OBD functions in one device
  • Integrated CAN FD support enables GM vehicle programming
  • Measures battery voltage and leakage current for diagnostics
  • Supports Toyota H all keys lost with 8A AKL adapter
  • Controls Xhorse Condor and Dolphin key cutting machines

Combined IMMO and OBD tool

The Xhorse VVDI Key Tool Max Pro merges the functions of the Key Tool Max and Mini OBD Tool into a single unit for automotive locksmiths and technicians. It handles IMMO OBD matching, transponder editing and cloning, remote generation, and frequency detection. The integrated CAN FD support covers GM vehicles, while the app offers multi-language operation with an English database.

Added electrical diagnostics

Newly included battery voltage measurement and leakage current detection expand the tool beyond key programming into basic electrical system checks. Support for Toyota H all keys lost using the 8A AKL adapter and partial Toyota 8A or 4D key programming addresses specific immobiliser scenarios. BMW CAS1 to CAS3 key programming and mileage repair are also covered.

Machine pairing and updates

The device connects wirelessly to Xhorse Condor, Dolphin XP-005, XP-005L, and Mini Plus series key cutting machines for coordinated workflow. Firmware updates and app language switching are managed through the companion application. Users without the 8A AKL adapter cannot perform Toyota H all keys lost functions, and BMW CAS3 support is listed as coming soon.

Highlights

  • Combines Key Tool Max and Mini OBD functions in one device
  • Integrated CAN FD support enables GM vehicle programming
  • Measures battery voltage and leakage current for diagnostics
  • Supports Toyota H all keys lost with 8A AKL adapter
  • Controls Xhorse Condor and Dolphin key cutting machines

Specifications

BrandXhorse
Features1. VVDI Key Tool Max Pro is update version of Key Tool Max, with OBD IMMO Programming function.
2. Newly add the function to Read Voltage and Leakage Current
3. Comes with integrated CAN FD for GM vehicles and All in One
TypeCode Scanners & Accessories

Questions about this item

What consumables or parts will need replacing on the VVDI Key Tool Max Pro over time?

The internal battery and any cables or connectors used with the Mini OBD Tool will eventually require replacement after extended use.

What is the first limitation you hit when running the Key Tool Max Pro continuously for key programming?

The 5-inch touchscreen and processor can handle long sessions, but sustained heavy IMMO operations may slow response until the unit cools.

How much noise and heat does the Key Tool Max Pro produce during all-day workshop use?

The tablet-style device has no fan, so it runs silently; the chassis gets warm but stays comfortable to hold during continuous operation.
