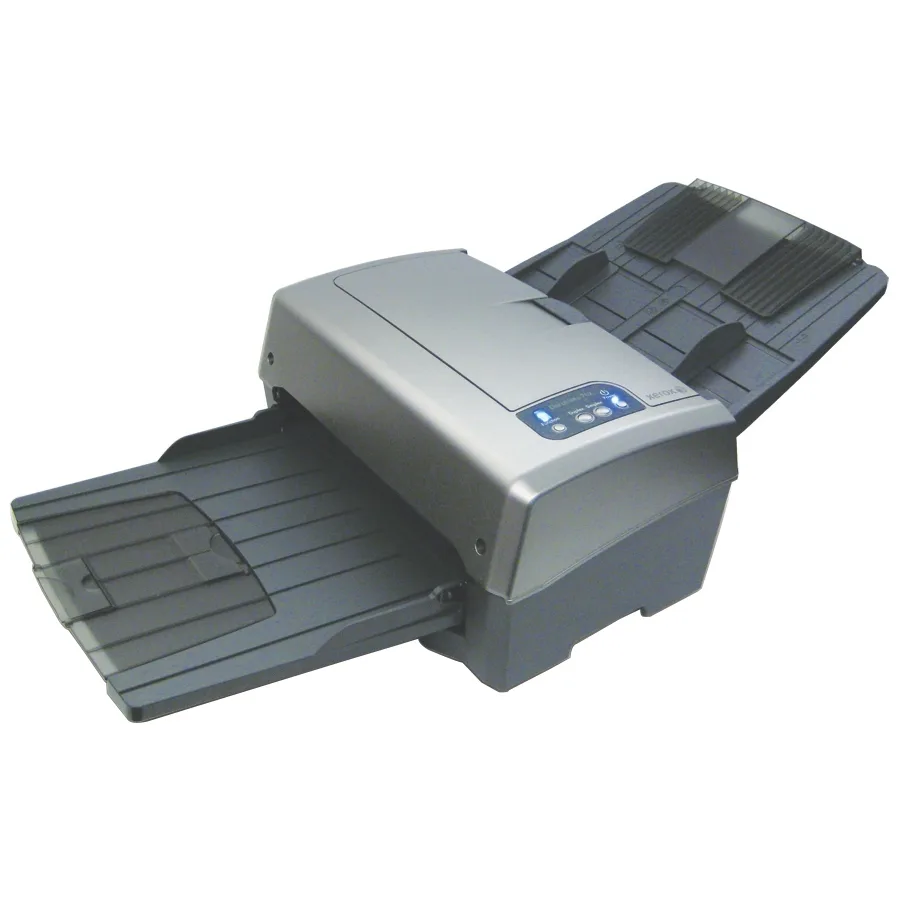

Rectangular desktop scanner in matte grey and black with 100-sheet ADF tray extended

XEROX

XEROX XDM7425D-WU document scanner 50 ppm simplex 100 ipm duplex 100-sheet ADF 11 x 17 in

SKU CH-3XD6-G2CN3 MPN XDM7425D-WU

Duplex document scanner processing 50 pages per minute simplex or 100 images per minute duplex with a 100-sheet automatic feeder handling paper up to 11 by 17 inches

  • TypeDuplex
  • Scanning Speed50 ppm @ 200dpi, b/w, simplex 100 ipm @ 200 dpi, b/w, duplex
  • Optical Resolution600 dpi
  • Max. Document Size11" x 17"
  • Automatic Document Feeder (ADF)Yes, ADF Capacity: 100 sheets, ADF Maximum Paper Size: 297 x
  • USB PortsUSB 2.0 (1.1 compatible)
  • Scans at 50 ppm simplex for fast single-sided capture
  • Duplex speed reaches 100 ipm for rapid double-sided workflows
  • 100-sheet ADF enables long unattended batch scanning
  • Handles documents up to 11 x 17 in for oversized formats
  • Ultrasonic double-feed detection prevents missed pages during high-volume runs

Xerox DocuMate 742 production scanner

The Xerox DocuMate 742 is a duplex document scanner built for low-volume production environments. It captures single-sided pages at 50 ppm and double-sided pages at 100 ipm at 200 dpi. An integrated 100-sheet automatic document feeder handles continuous batches without constant reloading. Optical resolution reaches 600 dpi for clear text and image reproduction.

Ultrasonic double-feed detection and A3 flatbed

Ultrasonic double-feed detection prevents multi-page misfeeds during unattended runs. The ADF accepts paper up to 297 x 965 mm and scans documents as large as 11 x 17 inches. A USB 2.0 interface provides direct connection to Windows 2000, XP or Vista workstations. Kofax VRS, Nuance OmniPage Pro and EMC QuickScan Pro Demo software are included on the supplied DVD-ROM.

Compact desktop footprint with included trays

The unit measures 16.93 x 10.63 x 8.66 inches and weighs 22.93 lbs, fitting on a standard desk. Paper input and output trays are included in the box to keep documents organised during scanning. Power is supplied by an external adapter and a USB 2.0 cable is provided. No separate network or wireless interfaces are fitted.

Highlights

  • Scans at 50 ppm simplex for fast single-sided capture
  • Duplex speed reaches 100 ipm for rapid double-sided workflows
  • 100-sheet ADF enables long unattended batch scanning
  • Handles documents up to 11 x 17 in for oversized formats
  • Ultrasonic double-feed detection prevents missed pages during high-volume runs

Specifications

BrandXerox
SeriesDocuMate 742
ModelXDM7425D-WU
TypeDuplex
Scanning Speed50 ppm @ 200dpi, b/w, simplex
100 ipm @ 200 dpi, b/w, duplex
Optical Resolution600 dpi
Max. Document Size11" x 17"
Automatic Document Feeder (ADF)Yes, ADF Capacity: 100 sheets, ADF Maximum Paper Size: 297 x 965 mm
USB PortsUSB 2.0 (1.1 compatible)
Operating Systems SupportedWindows 2000 (SP4) / XP (SP 2) / Vista
FeaturesDuplex scanning at 100 images per minute
Holds up to 100 pages in ADF
Scans documents up to A3 / 11" x 17" size
Ultrasonic Double Feed Detection
Kofax VRS delivers perfect scans from imperfect originals
Scans directly to searchable PDF
Visioneer OneTouch scanning to multiple applications including Xerox DocuShare
Duty Cycle: 5000 pages/day
Dimensions16.93" x 10.63" x 8.66"
Weight22.93 lbs.
Package ContentsDocuMate 742 Scanner
Power Supply
USB 2.0 Cable
Quick Install Card
Technical Support Card
Paper Input & Output Trays
DVD-ROM including: User Manual, Kofax VRS, Nuance OmniPage Pro, EMC QuickScan Pro Demo, Visioneer OneTouch, Scanner Drivers (TWAIN, ISIS and WIA drivers)
Shipping weight10.43 kg
Package size427 × 269 × 218 mm

Questions about this item

Does the USB 2.0 port limit scan throughput below the rated 50 ppm simplex or 100 ipm duplex?

The scanner connects through a single USB 2.0 port that is also 1.1 compatible; the interface speed is fixed by that bus.

What desk space and clearance does the 16.93 x 10.63 x 8.66 inch chassis need, and will the 100-sheet ADF tray stay attached?

The unit measures 16.93 inches wide, 10.63 inches deep and 8.66 inches high; the input and output trays are included in the box and mount on the scanner body.

Which Windows versions does the supplied DVD support, and does the Quick Install Card cover driver setup before scanning software?

The DVD includes drivers for Windows 2000 SP4, XP SP2 and Vista; the Quick Install Card walks through hardware connection first, then driver installation, before launching the bundled applications.
