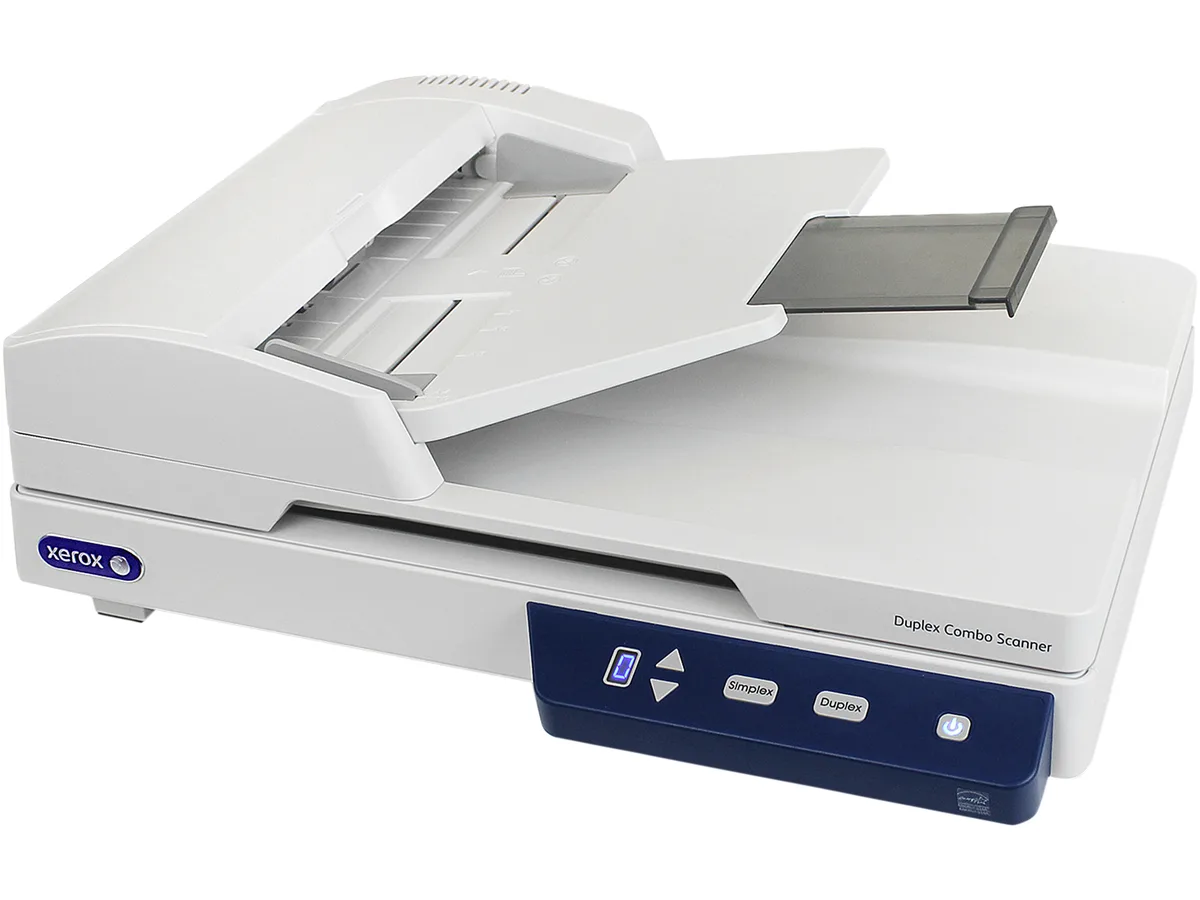

Xerox XD-Combo duplex scanner, flatbed with automatic document feeder, matte white and grey plastic, compact desktop form factor

XEROX

Xerox XD-Combo Duplex Combo Scanner

SKU CH-DBDD-HD923

Flatbed and ADF duplex scanner handling paper, ID cards and photos at 25 ppm / 50 ipm with 600 dpi optical resolution and USB 2.0 interface

  • Scanner TypeFlatbed or Automatic Document Feeder (Duplex)
  • Image SensorCIS
  • Light SourceLED (light emitting diode) instant on
  • Duplex ScanningYes
  • Scanning Speed25 ppm / 50 ipm @ 300 or 200 dpi (Color, B&W or grayscale)
  • Resolutions, Optical600 dpi
  • Scans 25 ppm simplex and 50 ipm duplex for fast batch capture
  • CIS sensor with LED instant-on delivers 600 dpi optical resolution
  • Flatbed and ADF handle paper, photos and plastic ID cards
  • Hi-speed USB 2.0 interface works with USB 3.0 ports
  • Compact 5.94 lb design fits small desks with 1,500-page daily duty cycle

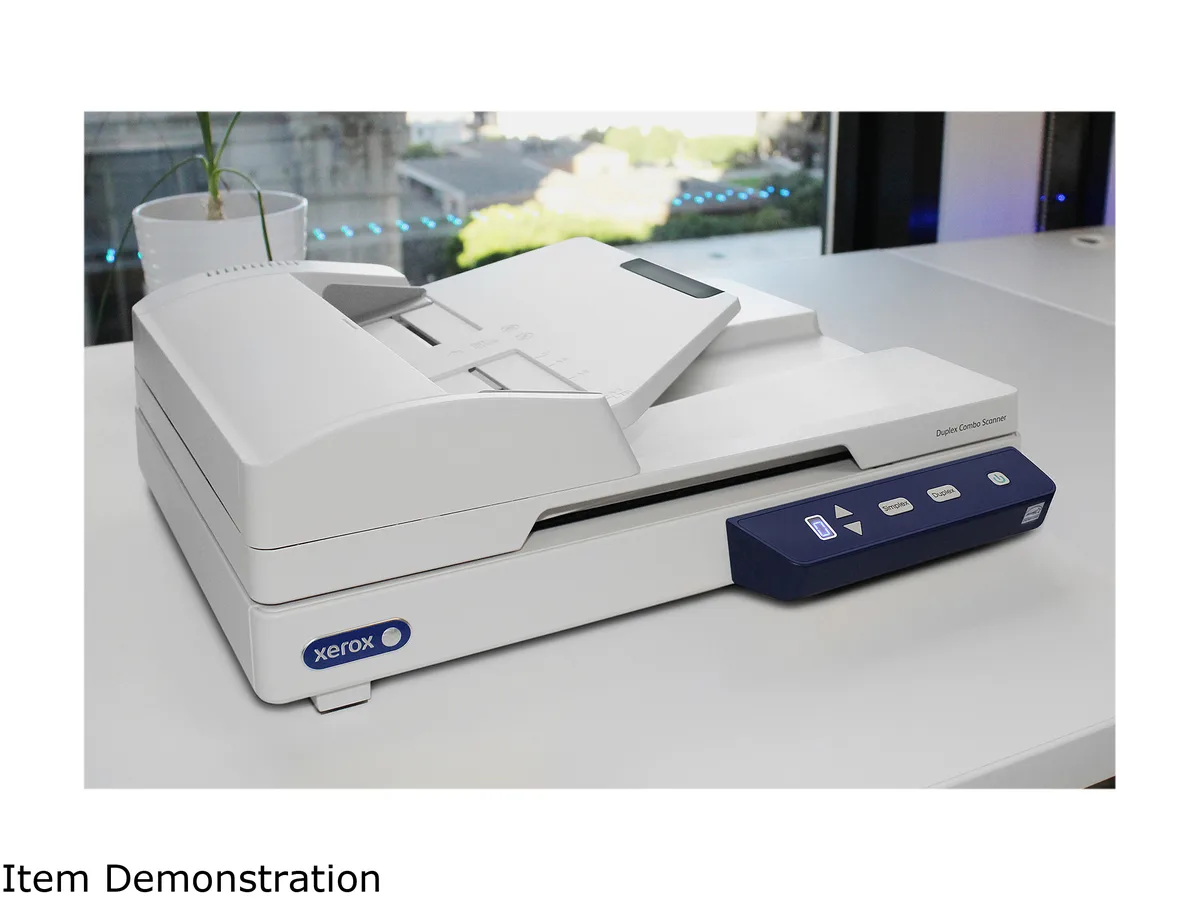

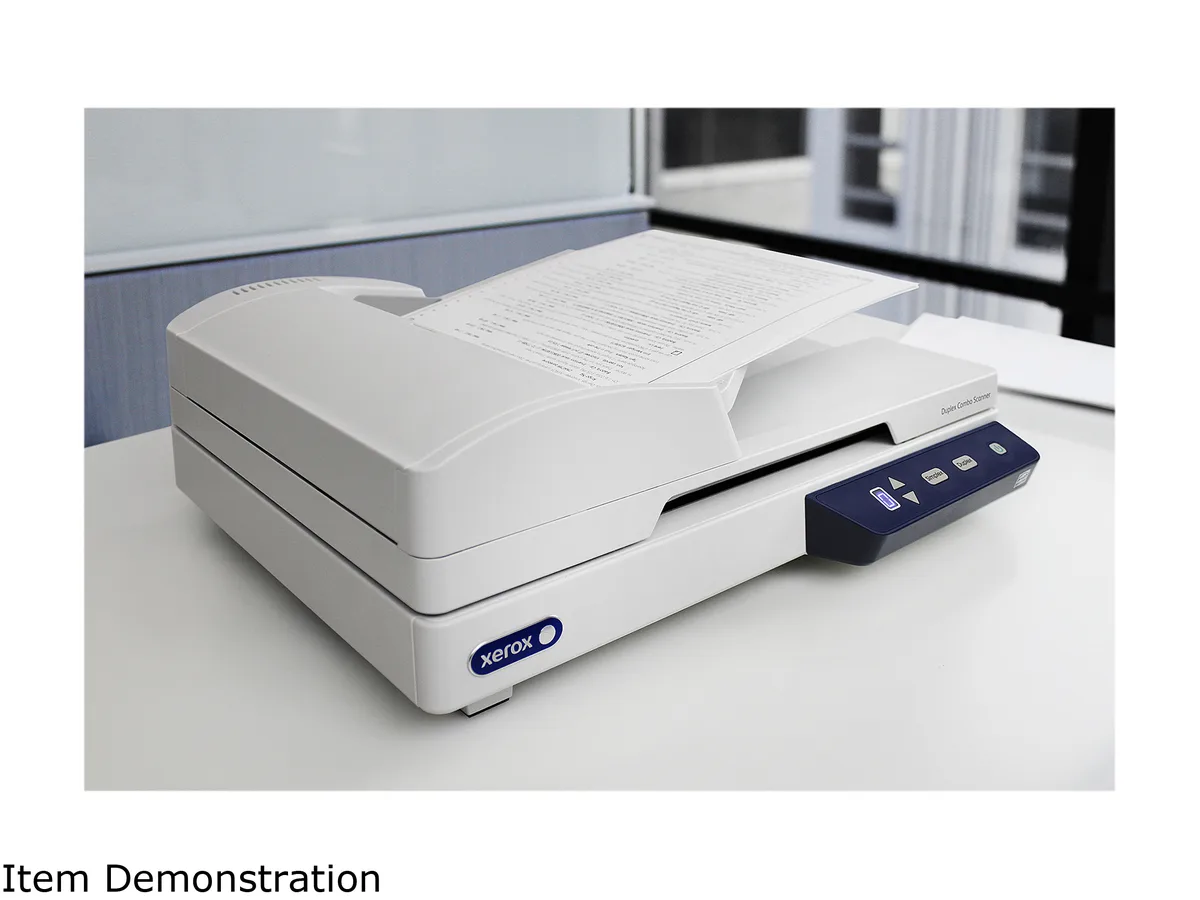

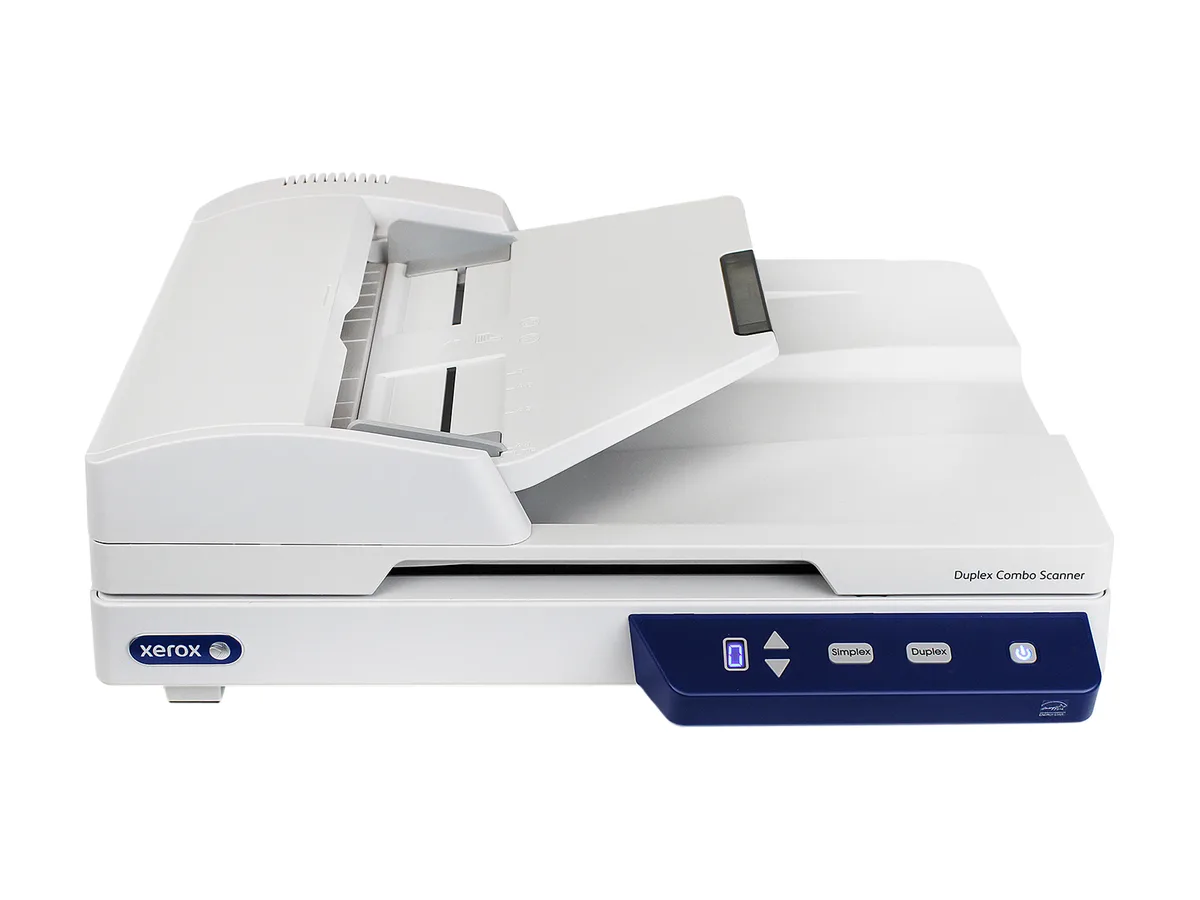

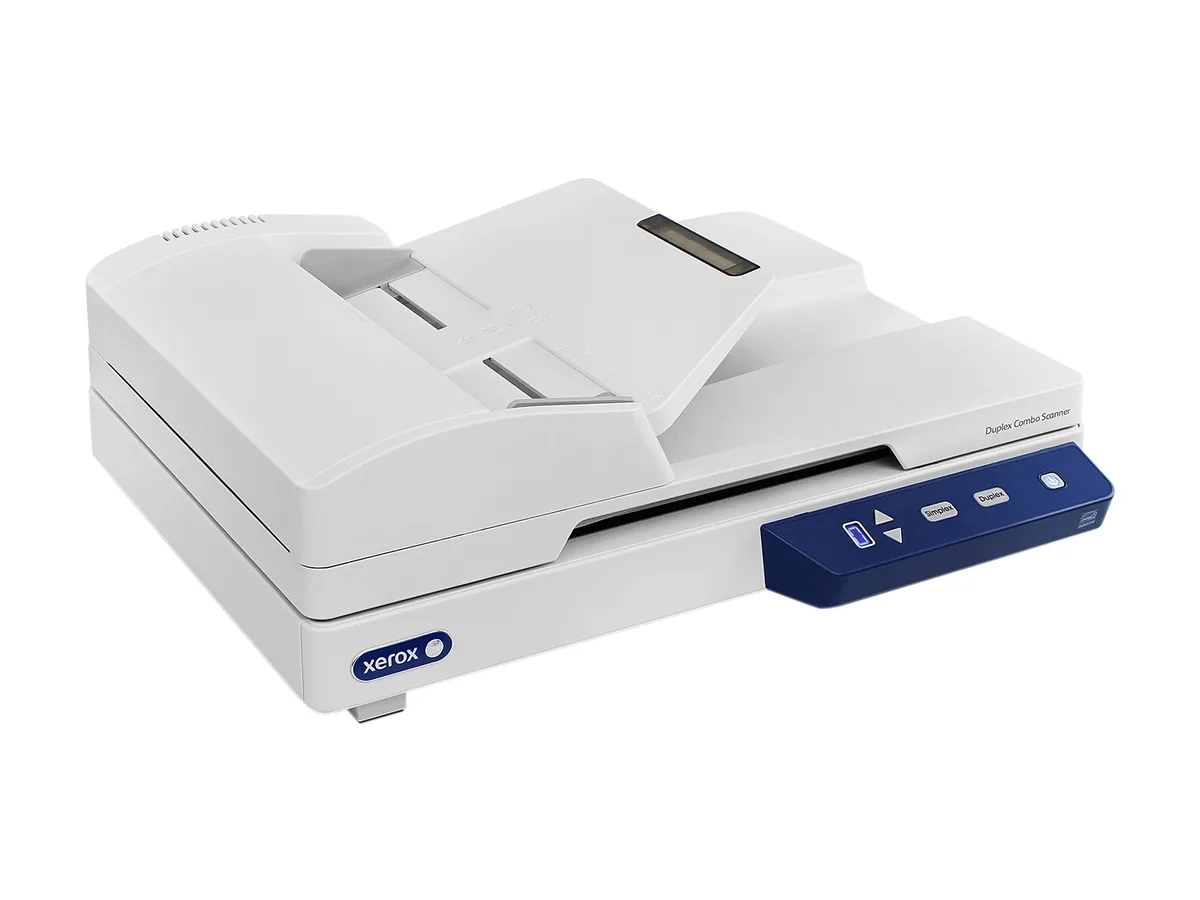

Xerox XD-Combo duplex scanner

The Xerox XD-Combo is a new flatbed scanner with an integrated automatic document feeder that scans both sides of a page in one pass. It suits offices that need to digitise mixed batches of paper, plastic ID cards and photographs up to 8.50 by 118.00 inches. The CIS image sensor and LED instant-on light source keep the unit ready without warm-up time. A compact footprint of 5.00 by 15.80 by 13.00 inches with trays collapsed fits on a standard desk.

Hi-Speed USB 2.0 interface limits

The scanner connects through a Hi-Speed USB 2.0 port that is also USB 3.0 compatible, so throughput is capped at the USB 2.0 signalling rate. This interface is fast enough for the rated 25 pages per minute or 50 images per minute at 200 or 300 dpi, but it will not sustain higher sustained transfer speeds that a native USB 3.0 device could use. The host computer must meet the minimum 2 GHz Intel Core 2 Duo or equivalent processor requirement for reliable operation.

1 500-page daily duty cycle headroom

A duty cycle of 1 500 pages per day defines the comfortable workload ceiling for this device. The ADF handles documents from 3.00 by 5.90 inches up to the full 8.50 by 118.00 inch maximum at 300 dpi, while the flatbed covers 8.50 by 11.70 inches for bound or fragile originals. Optical resolution tops out at 600 dpi with 24-bit colour, 8-bit greyscale and 1-bit black-and-white capture; interpolated settings reach 1 200 dpi through Visioneer Acuity software. Beyond the daily page limit or the maximum document length, throughput and reliability decline.

Highlights

  • Scans 25 ppm simplex and 50 ipm duplex for fast batch capture
  • CIS sensor with LED instant-on delivers 600 dpi optical resolution
  • Flatbed and ADF handle paper, photos and plastic ID cards
  • Hi-speed USB 2.0 interface works with USB 3.0 ports
  • Compact 5.94 lb design fits small desks with 1,500-page daily duty cycle

Specifications

BrandXEROX
ModelXD-Combo
Scanner TypeFlatbed or Automatic Document Feeder (Duplex)
Image SensorCIS
Light SourceLED (light emitting diode) instant on
Duplex ScanningYes
Scanning Speed25 ppm / 50 ipm @ 300 or 200 dpi (Color, B&W or grayscale)
Resolutions, Optical600 dpi
Color Depth24-bit color, 8-bit grayscale, 1-bit black & white
Max. Document Size8.50" x 118.00"
Media SizeADF Minimum Document Size: 3.00" x 5.90" (76.00 x 150.00 mm)
ADF Maximum Document Size: 8.50" x 118.00" (216.00 x 2997.00 mm) @ 300 dpi
Flatbed Maximum Scan Area: 8.50" x 11.70" (216.00 x 297.00 mm) @ 300 dpi
Media TypePaper, Plastic ID cards, Photos
Automatic Document Feeder (ADF)Yes
InterfaceHi-speed USB 2.0 (3.0 compatible)
Operating Systems SupportedMac: 2 GHz or faster Intel Core Processor
OS X 10.9 - 10.14.3
PC: 2 GHz Intel Core 2 Duo or equivalent processor
Compatible with:
Windows 10 Pro, Home, Enterprise and Education
Windows 7 Pro, Home, Enterprise and Ultimate
Windows 8 / 8.1 Pro, Core and Enterprise
FeaturesInterpolated Resolution with Visioneer Acuity: 75, 100, 150, 200, 300, 400, 500, 1200
Background: White
Duty Cycle: 1,500 pages per day
Features:
Most economical solution in its class
Small footprint saves office desk space
Visioneer OneTouch scans to cloud or applications
9 preset Visioneer OneTouch jobs on control panel
Scan cards, paper up to 8.50" x 118.00", books and magazines
Ideal for scanning photographs
ADF scan speeds up to 25 ppm / 50 ipm

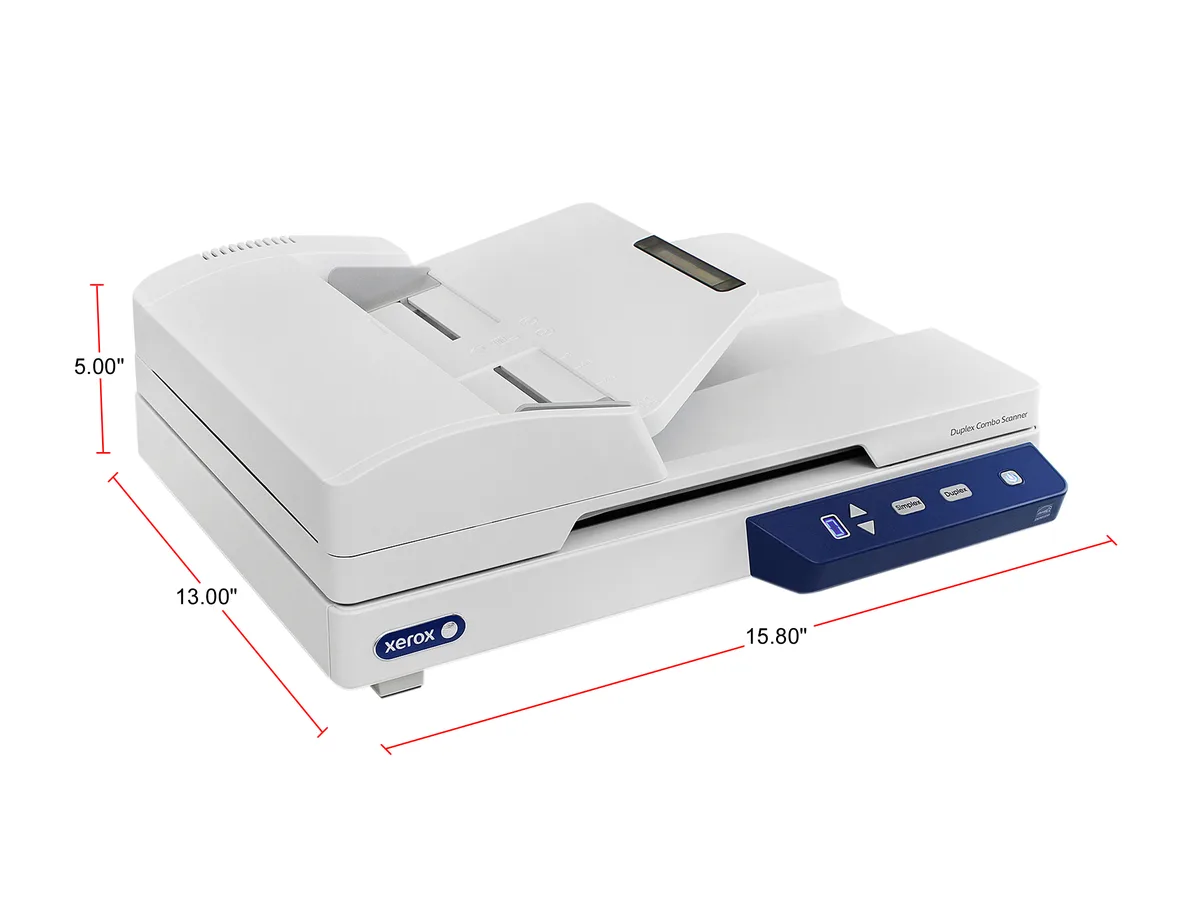

Dimensions5.00" x 15.80" x 13.00" (paper trays collapsed)
5.50" x 15.80" x 13.00" (paper trays extended)
Weight5.94 lbs.
Package ContentsXerox Duplex Combo Scanner
Power Supply
USB Cable
Spare ADF pad
Power Plug Adapters
Quick Installation Guide
Technical Support Card
Warranty Card
DVD-ROM including:
User's Manual
Visioneer OneTouch
Visioneer Acuity
ABBYY Business Card Reader
ABBYY Fine Reader Sprint
Scanner Drivers: TWAIN, EMC Captiva ISIS and Microsoft Windows Image Acquisition (WIA) Driver
Shipping weight4.44 kg
Package size500 × 399 × 221 mm

Questions about this item

Should I pick the flatbed or the automatic document feeder for my scanning jobs?

Use the flatbed for bound books, fragile photos or single sheets up to 8.50" x 11.70". Use the ADF for multi-page batches up to 8.50" x 118.00" at 25 ppm simplex or 50 ipm duplex.

What does 25 ppm / 50 ipm at 300 or 200 dpi actually deliver in daily use?

You can scan a 50-page duplex stack in about one minute at 300 or 200 dpi in colour, greyscale or black-and-white.

How does the Hi-speed USB 2.0 (3.0 compatible) interface limit scan throughput?

The connection caps sustained transfer at USB 2.0 Hi-speed rates, so the 25 ppm / 50 ipm engine speed is the practical ceiling.
