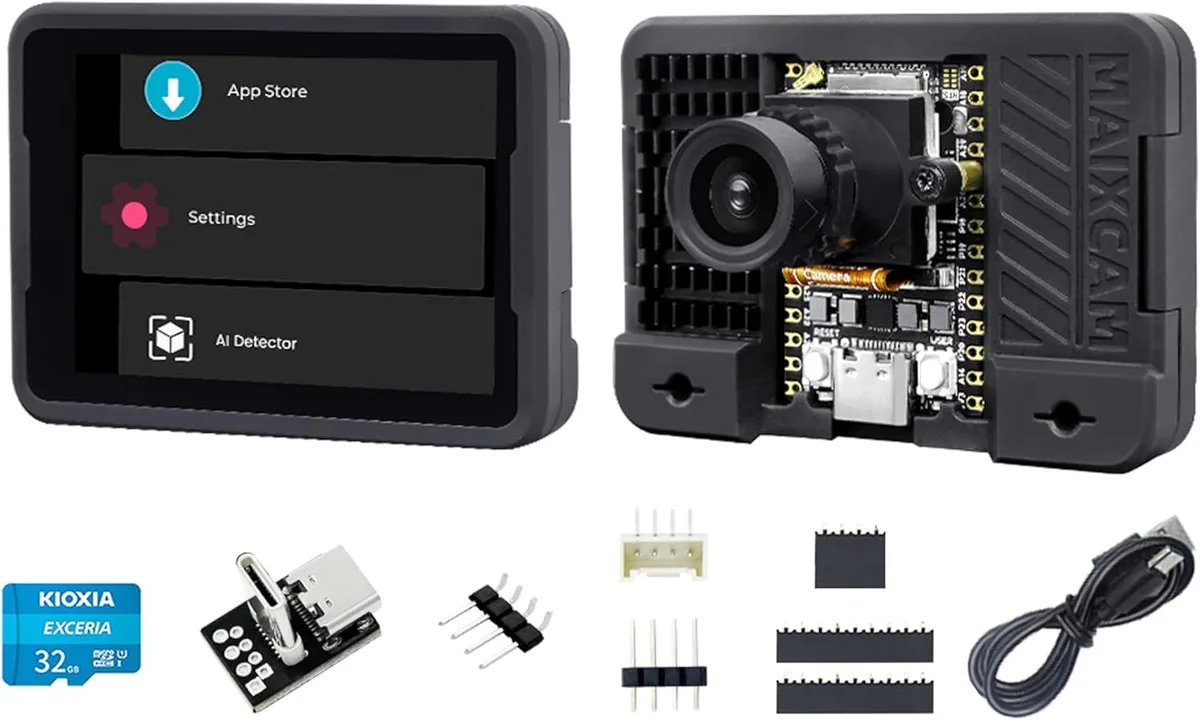

Compact RISC-V development board with 2.3-inch touchscreen and 4MP camera module

WUQ

WUQ Sipeed MaixCAM 1TOPS NPU RISCV Development Board

SKU CH-QYGR-QJRJ2

RISC-V C906 single-board computer with 1 TOPS NPU, 256 MB DDR3, 2.3 inch touchscreen, 4 MP camera and WiFi6 for AI vision development

  • TypeTest Instrument & Gauge Parts
  • 1TOPS NPU runs BF16, YOLOv5 and YOLOv8 models
  • 1GHz C906 and 700MHz C906 plus 8051 cores
  • 256MB DDR3 RAM with 32GB TF card boot
  • 3 inch 552x368 touch screen and 4MP camera
  • WiFi6 and BLE5.4 plus USB 2.0 Type-C

AI RISC-V development board

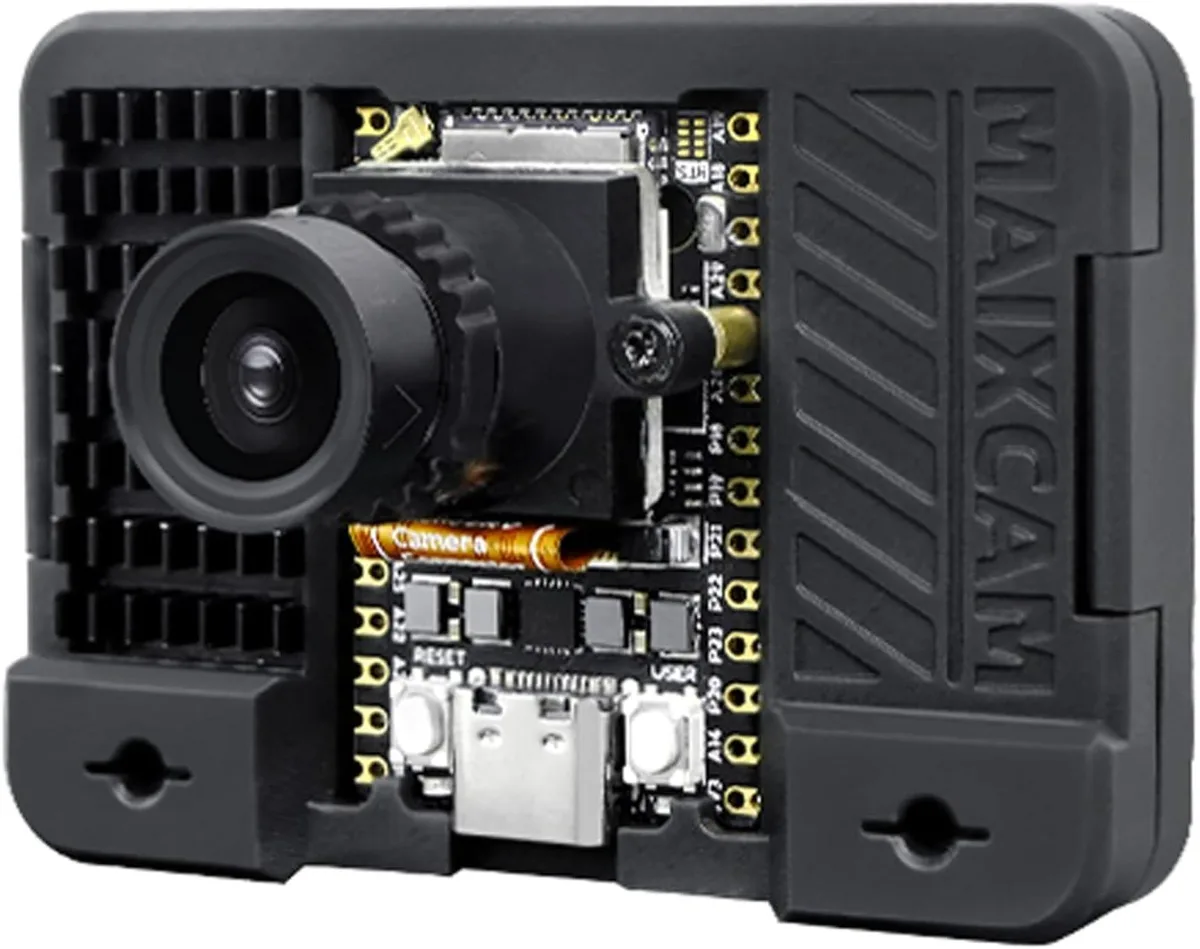

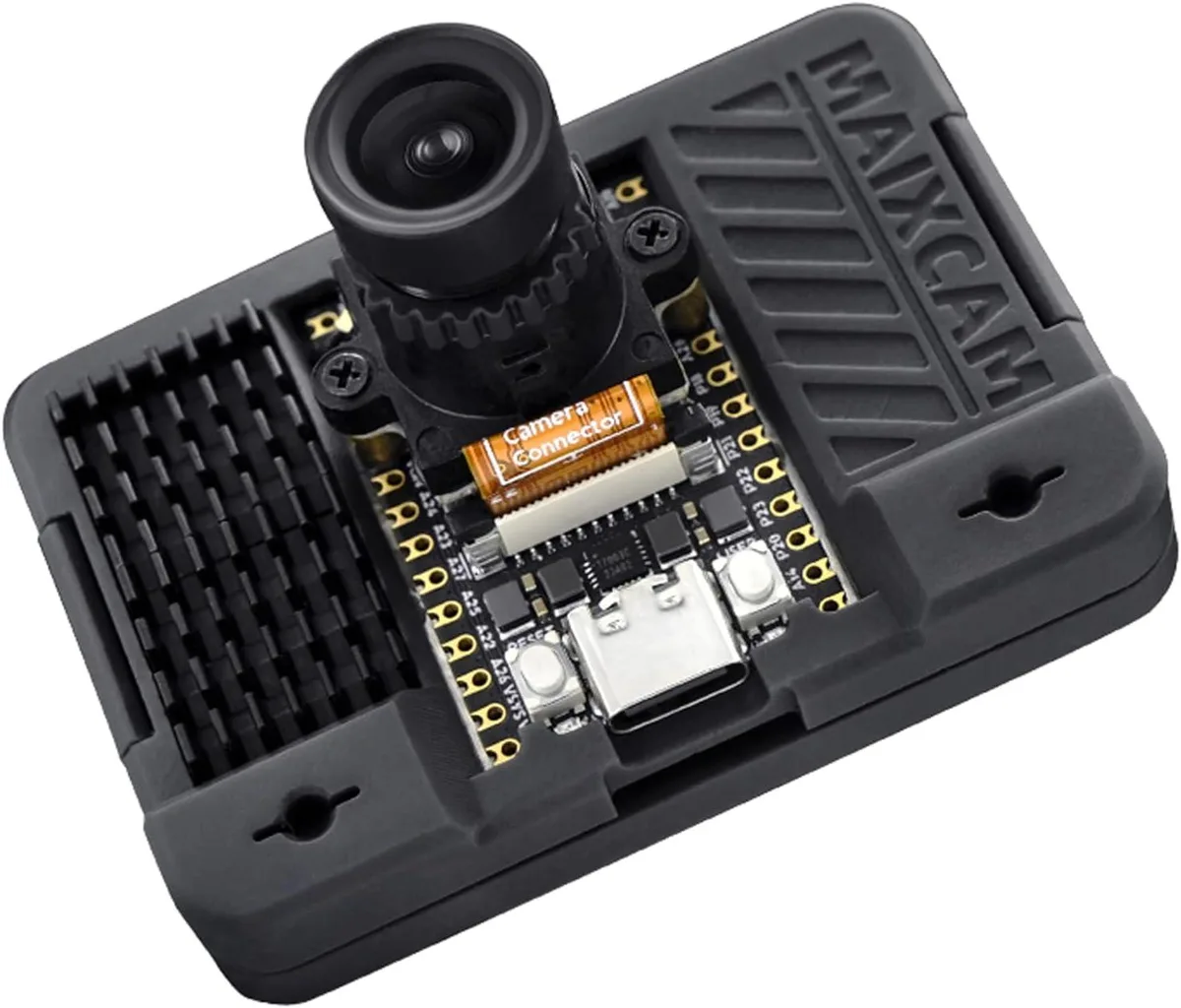

The WUQ Sipeed MaixCAM board integrates a 1GHz C906 RISC-V processor, a 700MHz C906 RTOS core and an 8051 low-power core with 256MB DDR3 memory. A 1TOPS NPU handles INT8 inference for models such as YOLOv5 and YOLOv8. Onboard WiFi6 and BLE5.4 provide wireless connectivity, while a pre-loaded 32GB TF card enables immediate operation.

Embedded vision developers

Engineers building AI face recognition, object tracking or classification systems gain a complete hardware platform with a 4MP camera and 2.3-inch 552x368 IPS touchscreen. The board exposes two 14-pin 2.54mm headers for I2C, SPI, UART, ADC, PWM and WDT signals. Buyers who need more than 1TOPS of NPU performance or require additional high-speed I/O should evaluate alternative modules.

1TOPS INT8 NPU

The neural processing unit delivers 1TOPS at INT8 precision and supports BF16 format for common vision models. This single figure determines whether the board meets the inference throughput required for a specific edge AI application.

Highlights

  • 1TOPS NPU runs BF16, YOLOv5 and YOLOv8 models
  • 1GHz C906 and 700MHz C906 plus 8051 cores
  • 256MB DDR3 RAM with 32GB TF card boot
  • 3 inch 552x368 touch screen and 4MP camera
  • WiFi6 and BLE5.4 plus USB 2.0 Type-C

Specifications

TypeTest Instrument & Gauge Parts

Questions about this item

What power supply do I need for the Type-C USB 2.0 port?

The board draws power through its Type-C USB 2.0 port; use a standard 5 V USB supply capable of at least 2 A.

Will my existing 2.54 mm headers plug into the two 14-pin IO interfaces?

Yes, each 14-pin header uses 2.54 mm pitch so standard jumper wires and modules fit directly.

How can I confirm the 1 TOPS NPU is running a model after boot?

Open MaixVision on a host PC; the live preview window shows inference frames and the console prints model load status.
