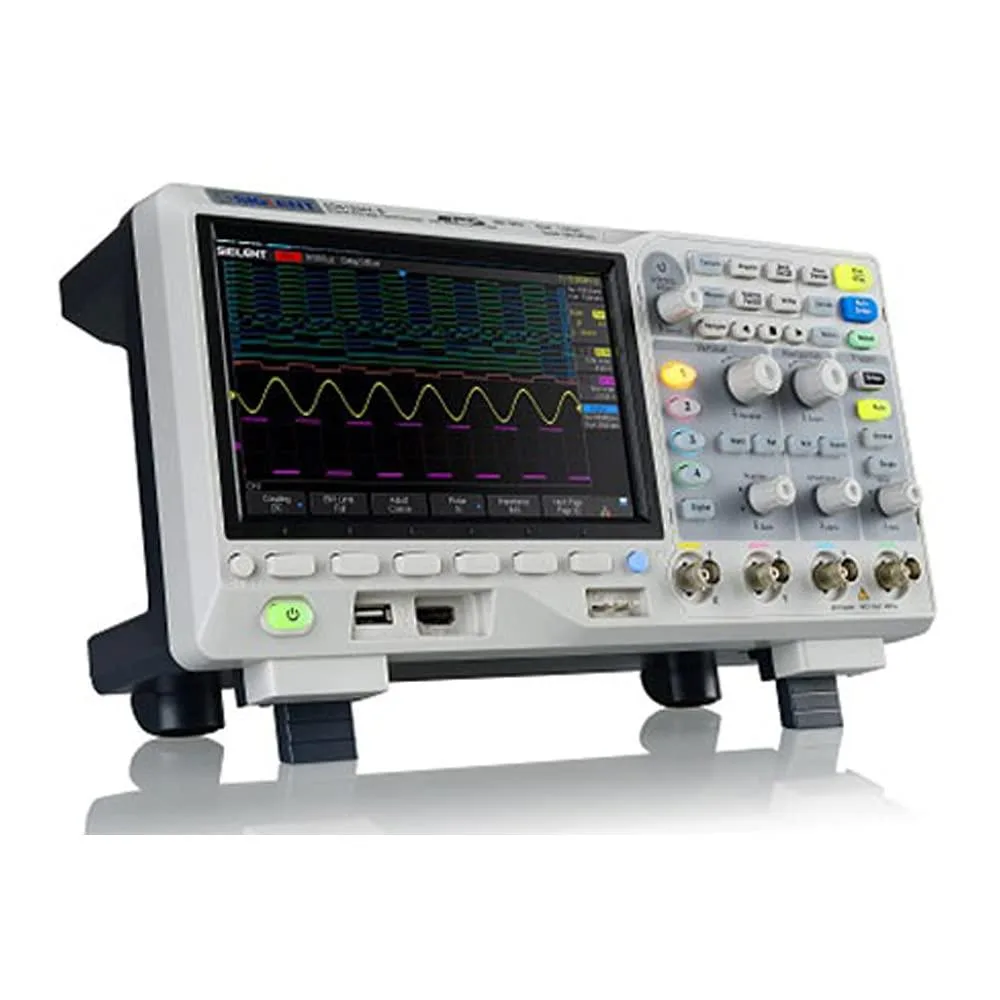

Grey four-channel digital oscilloscope with 7-inch display

WUQ

WUQ SDS1104X-E 100MHz 4ch Digital Oscilloscope Grey

SKU CH-A8SQ-BP794

A 100 MHz four-channel digital oscilloscope with 1 GSa/s sample rate, 14 Mpts record length, built-in serial decoding for IIC, SPI, UART, CAN and LIN, and a 7-inch 800×480 display

  • TypeDecoder
  • 100 MHz bandwidth captures fast signals
  • 1 GSa/s sample rate resolves fine detail
  • 14 Mpts memory stores long waveforms
  • Free serial decoding covers IIC, SPI, UART, CAN, LIN
  • 7-inch 800*480 display shows clear traces

Four-Channel 100 MHz Oscilloscope

The WUQ SDS1104X-E is a four-channel digital oscilloscope with a 100 MHz bandwidth and a 1 GSa/s sample rate. It provides 14 Mpts of record length and a 7-inch TFT-LCD display at 800 * 480 resolution. Standard serial decoding covers IIC, SPI, UART, CAN, and LIN protocols. A math co-processor accelerates front-panel operation.

Upgrade from Two-Channel or Lower Bandwidth Units

This model replaces two-channel instruments or scopes with bandwidth below 100 MHz when four simultaneous analogue channels are required. The jump is worth it for engineers who need 16 optional digital channels for mixed-signal analysis or an optional USB AWG module. The 1 Mpts FFT and on-screen Bode plot add frequency-domain capability without extra hardware.

Suits Embedded and Automotive Debug Work

The built-in decoders suit developers working with IIC, SPI, UART, CAN, and LIN buses in embedded or automotive systems. The 100,000 wfm/s normal capture rate and 400,000 wfm/s sequence mode help catch infrequent glitches. Buyers who need more than 100 MHz bandwidth or more than 14 Mpts memory should consider higher-specification models.

Highlights

  • 100 MHz bandwidth captures fast signals
  • 1 GSa/s sample rate resolves fine detail
  • 14 Mpts memory stores long waveforms
  • Free serial decoding covers IIC, SPI, UART, CAN, LIN
  • 7-inch 800*480 display shows clear traces

Specifications

TypeDecoder

Questions about this item

What are the physical dimensions and weight of the WUQ SDS1104X-E oscilloscope?

The unit weighs 6.6 pounds and the package weighs 4.0 kg. It features a large 7-inch TFT-LCD display with 800 * 480 resolution.

How do I install the optional 16 digital channels and USB AWG module on this 4-channel model?

The 16 digital channels (MSO) and USB AWG module are options for the four-channel series only. Install them by inserting the modules into the designated slots and enabling them in the system menu.

What maintenance or replacement will the oscilloscope need over time?

The oscilloscope includes a math co-processor and uses 14 Mpts record length. Calibration may be required periodically to maintain the 1 GSa/s sample rate and low background noise performance.
