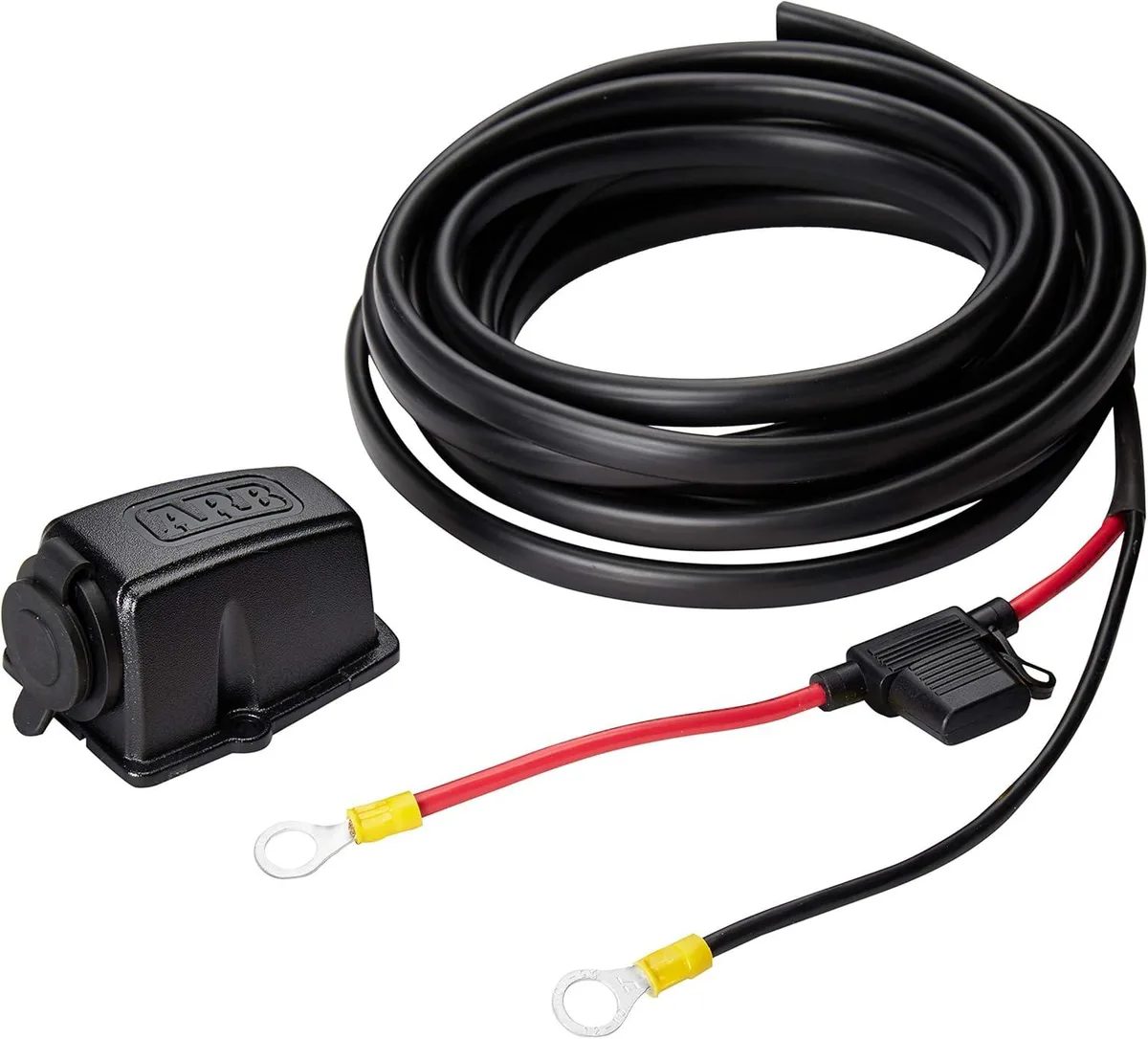

WUQ fridge freezer wiring kit with threaded socket mount and cable

WUQ

WUQ Fridge Freezer Wiring Kit 10900027 Threaded Socket Mount

SKU CH-MA1T-A4VW1

Pre-assembled 20 ft double-insulated cable with 15 A fuse, eyelets and quick-connect terminals for direct battery connection to 12/24 V fridge freezers

  • Typecar
  • Quick battery connection with 20 ft double-insulated cable

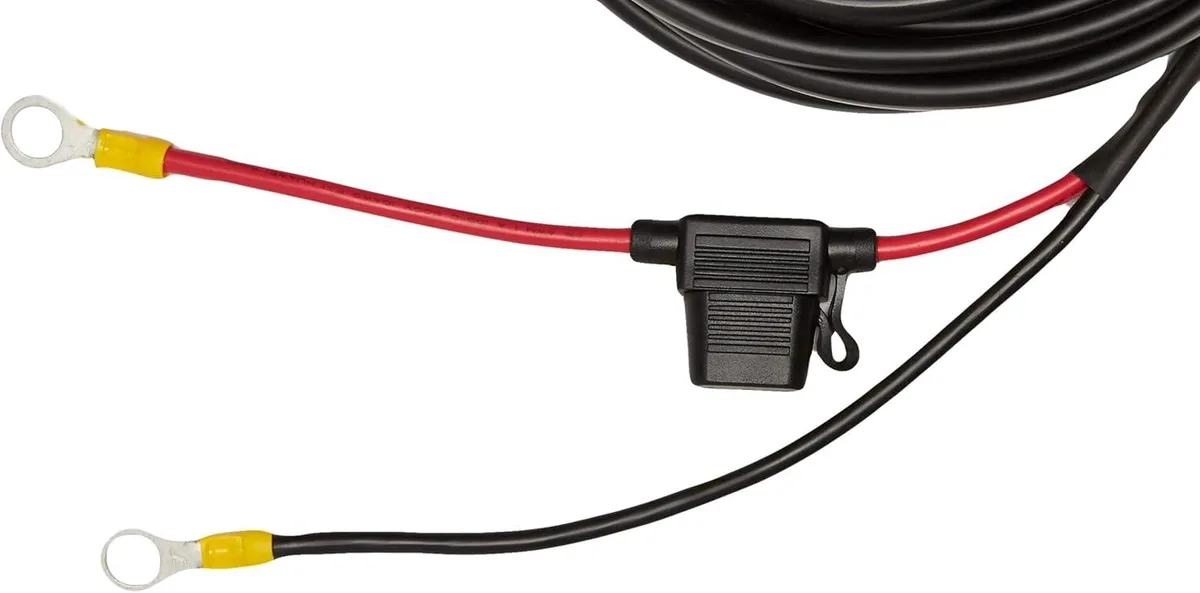

  • 15 A in-line fuse protects the circuit
  • 8 mm and 5/16 in eyelets fit battery terminals
  • 1/4 in quick-connect terminals trim for minimal voltage drop
  • Threaded socket mounts on supplied bracket or any flat surface

Fridge Freezer Wiring Kit 10900027

The WUQ 10900027 kit supplies 20 ft of double-insulated 10-gauge cable with a pre-assembled 15-amp in-line fuse and 8 mm eyelets for direct battery connection. Two 1/4 in side-entry quick-connect terminals and insulators are included loose so the installer can trim the cable to length and solder the terminals for minimal voltage drop. The kit also provides the ARB 10900028 threaded socket and surface mount for a 12/24 V DC outlet. It suits 4WD owners and campers adding a portable fridge or extra 12-volt power point.

Thermals noise and power draw

The 10-gauge cable and 15-amp fuse limit continuous current to 15 amps at 12 or 24 volts, keeping voltage drop low on runs up to the supplied 20 ft. No active cooling or moving parts are present, so the installation adds no audible noise and draws no parasitic power when the fridge is switched off. The double insulation protects against abrasion and heat in engine-bay routing.

Threaded socket mount versatility

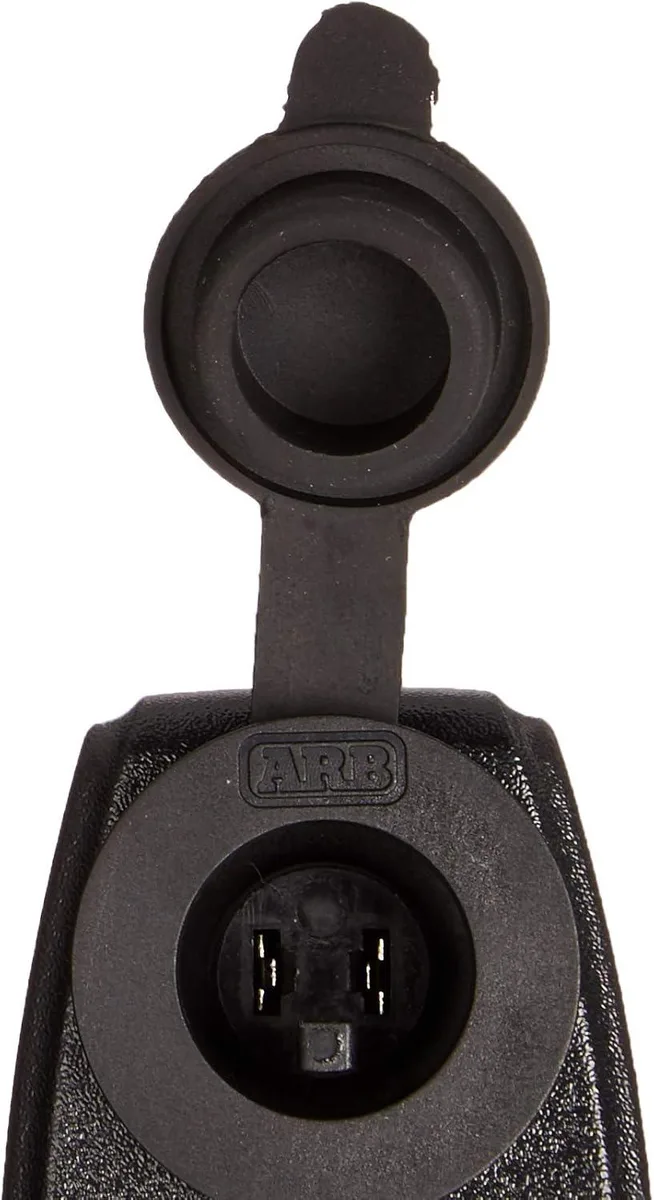

The included ARB 10900028 socket can be fitted into the supplied surface-mount housing or screwed directly into any flat panel, giving installers two mounting options for the 12/24 V outlet. Rear terminals are marked + and - for correct polarity. Buyers who need a longer cable run than 20 ft or a higher current rating than 15 amps will find this kit does not meet those requirements.

Highlights

  • Quick battery connection with 20 ft double-insulated cable
  • 15 A in-line fuse protects the circuit
  • 8 mm and 5/16 in eyelets fit battery terminals
  • 1/4 in quick-connect terminals trim for minimal voltage drop
  • Threaded socket mounts on supplied bracket or any flat surface

Specifications

Typecar

Questions about this item

How do I route the 20 ft double-insulated cable from the battery to the fridge socket?

Trim the 10-gauge cable to length, solder the two 1/4 in side-entry quick-connect terminals onto the trimmed ends, then connect them to the + and - marked rear terminals on the threaded socket mount.

Which component will need checking or replacement after extended off-road use?

The in-line 15-amp fuse is the primary service item; inspect it periodically and replace with the same rating if it blows.

What limits continuous current draw when the fridge runs for hours on a hot day?

The 15-amp fuse rating sets the maximum sustained current the kit can carry without interruption.
